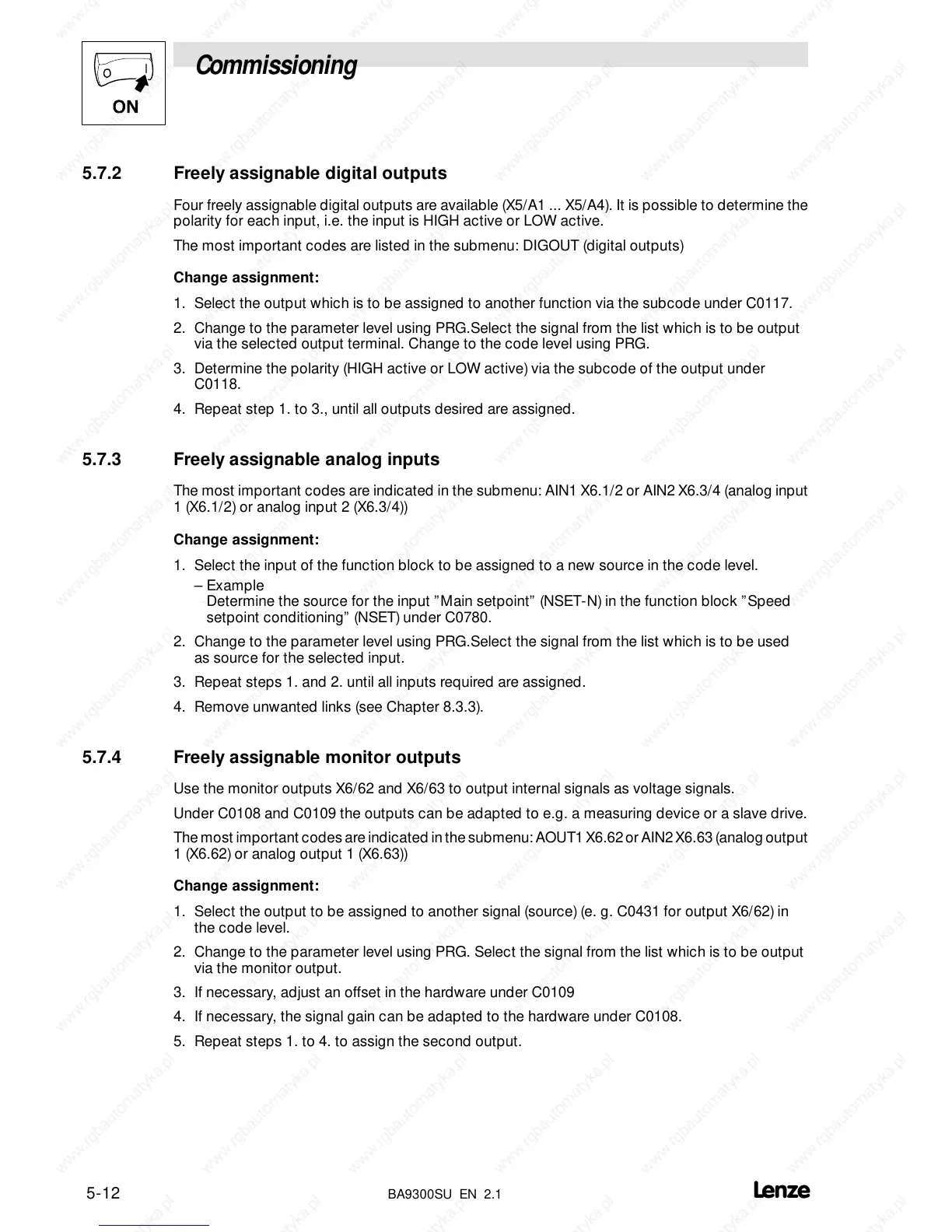

Commissioning
5-12
BA9300SU EN 2.1
5.7.2 Freely assignable digital outputs
Four freely assignable digital outputs are available (X5/A1 ... X5/A4). It is possible to determine the
polarity for each input, i.e. the input is HIGH active or LOW active.
The most important codes are listed in the submenu: DIGOUT (digital outputs)
Change assignment:
1. Select the output which is to be assigned to another function via the subcode under C0117.
2. Change to the parameter level using PRG.Select the signal from the list which is to be output
via the selected output terminal. Change to the code level using PRG.
3. Determine the polarity (HIGH active or LOW active) via the subcode of the output under
C0118.
4. Repeat step 1. to 3., until all outputs desired are assigned.
5.7.3 Freely assignable analog inputs
The most important codes are indicated in the submenu: AIN1 X6.1/2 or AIN2 X6.3/4 (analog input
1 (X6.1/2) or analog input 2 (X6.3/4))
Change assignment:
1. Select the input of the function block to be assigned to a new source in the code level.
– Example
Determine the source for the input ”Main setpoint” (NSET-N) in the function block ”Speed
setpoint conditioning” (NSET) under C0780.
2. Change to the parameter level using PRG.Select the signal from the list which is to be used
as source for the selected input.
3. Repeat steps 1. and 2. until all inputs required are assigned.
4. Remove unwanted links (see Chapter 8.3.3).
5.7.4 Freely assignable monitor outputs
Use the monitor outputs X6/62 and X6/63 to output internal signals as voltage signals.
Under C0108 and C0109 the outputs can be adapted to e.g. a measuring device or a slave drive.
The most important codes areindicated in the submenu: AOUT1X6.62or AIN2X6.63 (analog output
1 (X6.62) or analog output 1 (X6.63))
Change assignment:
1. Select the output to be assigned to another signal (source) (e. g. C0431 for output X6/62) in
thecodelevel.
2. Change to the parameter level using PRG. Select the signal from the list which is to be output
via the monitor output.
3. If necessary, adjust an offset in the hardware under C0109
4. If necessary, the signal gain can be adapted to the hardware under C0108.
5. Repeat steps 1. to 4. to assign the second output.
