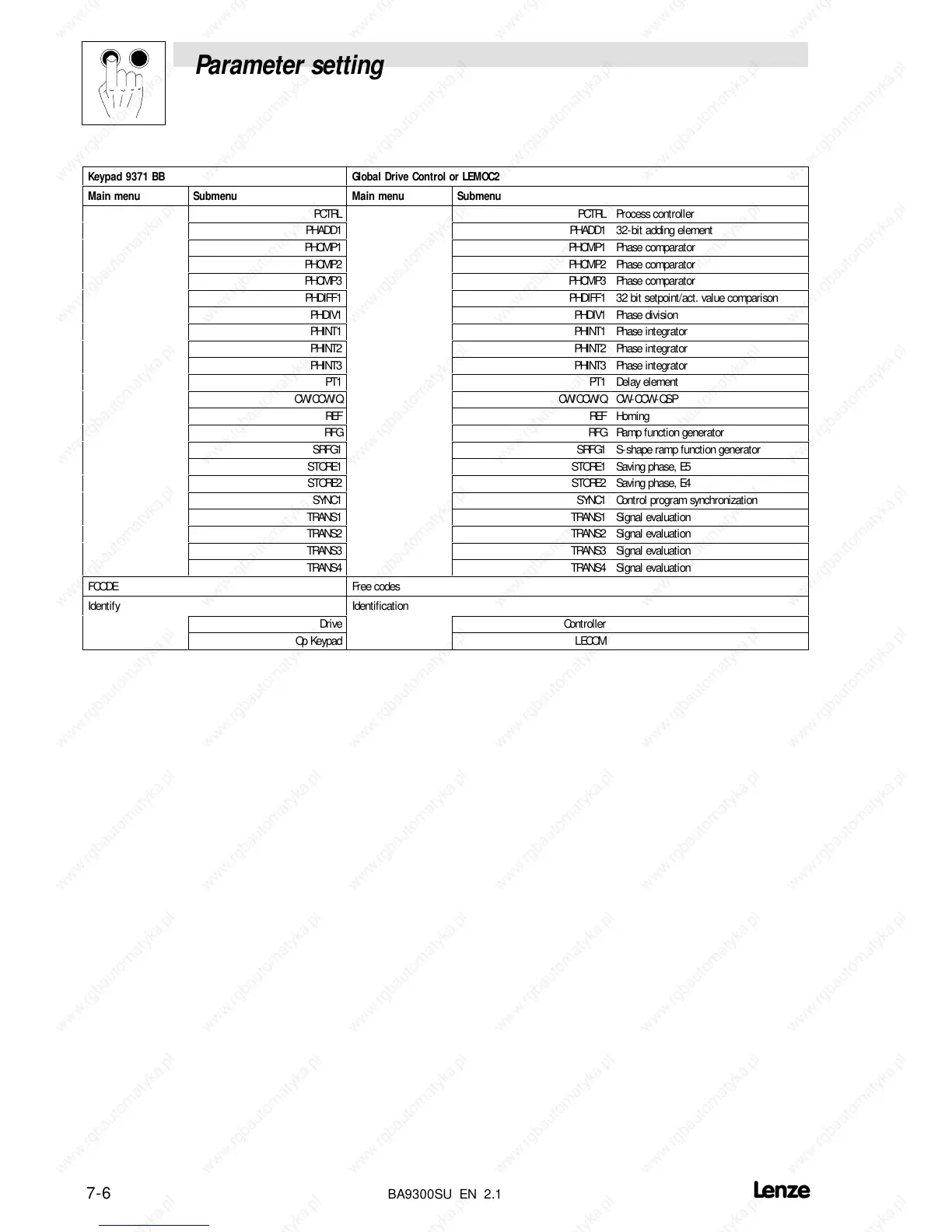

Parameter setting
7-6

BA9300SU EN 2.1
Global Drive Control or LEMOC2Keypad 9371 BB
SubmenuMain menuSubmenuMain menu
PCTRL PCTRL Process controller
PHADD1 PHADD1 32-bit adding element
PHCMP1 PHCMP1 Phase comparator
PHCMP2 PHCMP2 Phase comparator
PHCMP3 PHCMP3 Phase comparator
PHDIFF1 PHDIFF1 32 bit setpoint/act. value comparison
PHDIV1 PHDIV1 Phase division
PHINT1 PHINT1 Phase integrator
PHINT2 PHINT2 Phase integrator
PHINT3 PHINT3 Phase integrator
PT1 PT1 Delay element
CW/CCW/Q CW/CCW/Q CW-CCW-QSP
REF REF Homing
RFG RFG Ramp function generator
SRFG1 SRFG1 S-shape ramp function generator
STORE1 STORE1 Saving phase, E5
STORE2 STORE2 Saving phase, E4
SYNC1 SYNC1 Control program synchronization
TRANS1 TRANS1 Signal evaluation
TRANS2 TRANS2 Signal evaluation
TRANS3 TRANS3 Signal evaluation
TRANS4 TRANS4 Signal evaluation
FCODE Free codes
Identify Identification
Drive Controller
Op Keypad LECOM
