Lenze EVS9322EP User Manual

Function library
Function blocks
3.5.5 Analog inputs via terminal X6/1, X6/2 and X6/3, X6/4 (AIN)
3−103
l
EDSVS9332P−EXT DE 2.0
Function
l The analog input value is added to the value at input AINx−OFFSET.
l The result of the addition is limited to ±200 %.
l The limited value is multiplied by the value which is applied to input AINx−GAIN.
l Then the signal is limited to ±200%.
l The signal is output at AINx−OUT.
ÎÎÎÎÎ
AIN−OFFSET
AIN−GAIN
IN
AIN−OUT

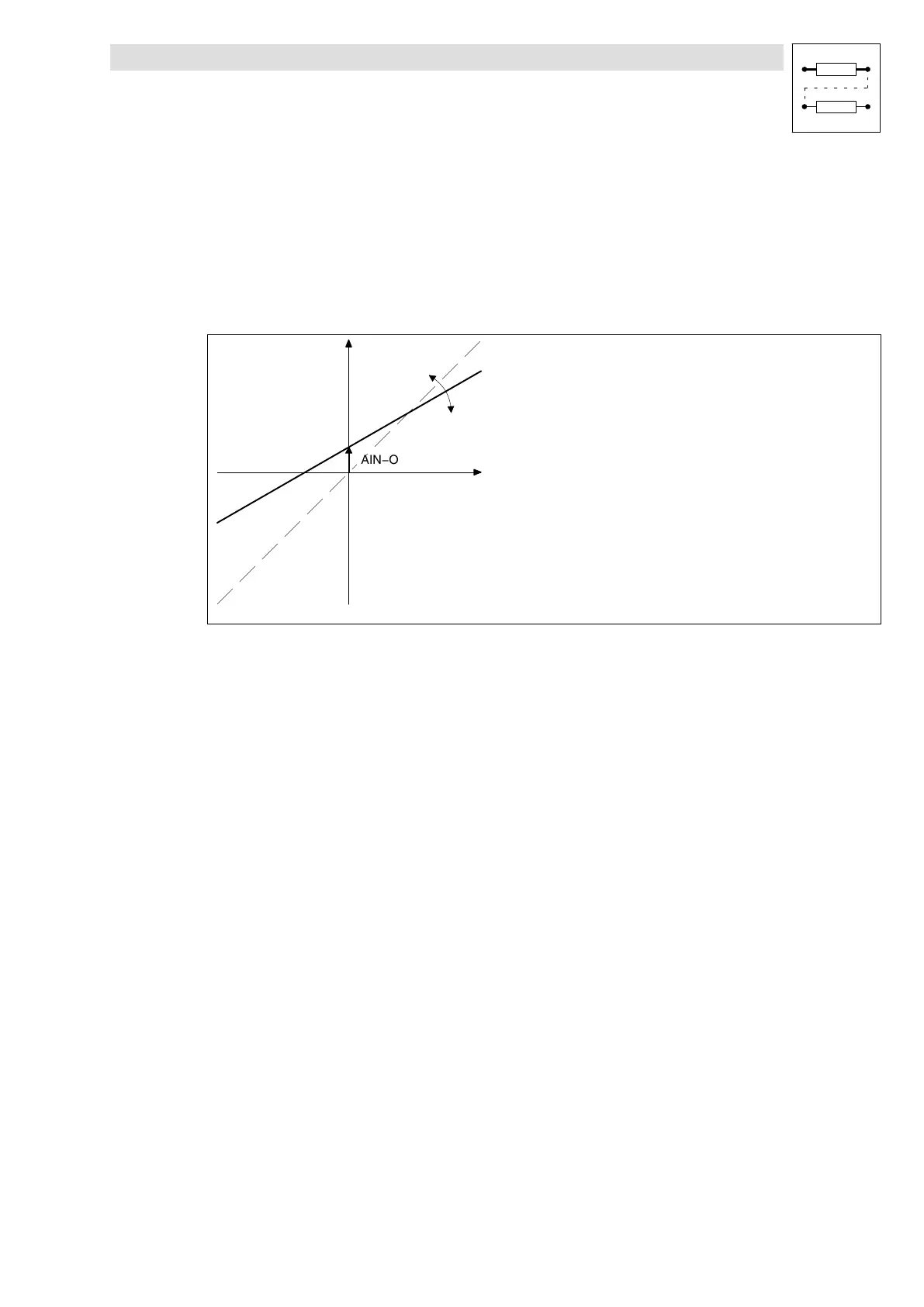

Fig. 3−49 Offset and gain of the analog input
