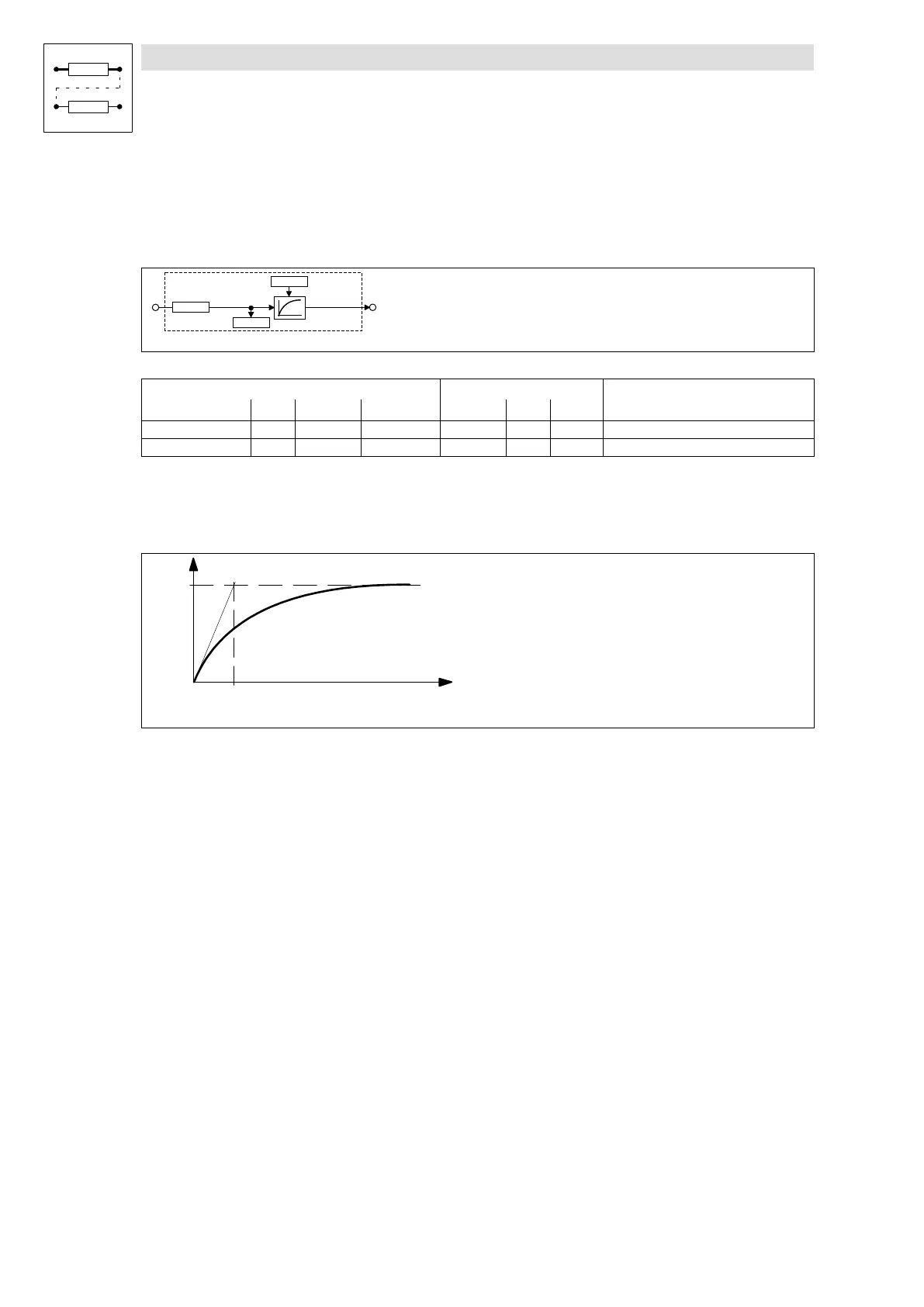

3.5.54 Delay element (PT1−1)
3−244
l
EDSVS9332P−EXT DE 2.0
3.5.54 Delay element (PT1−1)
Purpose
Filtering and delaying of analog signals.
PT1-1
PT1-1-OUT
PT1-1-IN
C0642
C0640
C0641
Fig. 3−191 Delay element (PT1−1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PT1−1−IN a C0642 dec [%] C0641 1 1000 −
PT1−1−OUT a − − − − − −
Function
l The delay time T is set under C0640.
l The proportional coefficient is fixed at K = 1.
t
T
K=1
Fig. 3−192 Delay time T of the first order delay element
