3.5.67 Variable table − target position/position values (VTPOS)
3−277
l
EDSVS9332P−EXT DE 2.0
3.5.67 Variable table − target position/position values (VTPOS)
One function block (VTPOS) is available.
Purpose
Stores values for target positions (position values): They serve as target positions in the positioning
program or comparison values for SP1 and SP2.
VTPOS-IN1
VTPOS
C1350/1
C1351/1
VTPOS-IN2
C1350/2
C1351/2
VTPOS-IN9
C1350/9
C1351/9
C1301/60
VTPOS-No 60
VTPOS-No 61
VTPOS-No 62
VTPOS-No 69
VTPOS-IN10
C1350/10
C1351/10
VTPOS-No 70
VTPOS-No 71
VTPOS-OUT71
VTPOS-OUT70
VTPOS-OUT69
VTPOS-OUT62
VTPOS-OUT61
VTPOS-OUT60
C1301/1
VTPOS-No 1
VTPOS-OUT1
...
...
TEACH1
...
...
VTPOS-No 100
VTPOS-OUT100
VTPOS-No 101
VTPOS-OUT101
VTPOS-No 104
VTPOS-OUT104
POS-TP
VTPOS-IN3
C1350/3
C1351/3
VTPOS-No 63
VTPOS-OUT63
VTPOS-IN4
C1350/4
C1351/4
VTPOS-No 64
VTPOS-OUT64
VTPOS-IN5
C1350/5
C1351/5
VTPOS-No 65
VTPOS-OUT65
VTPOS-IN6
C1350/6
C1351/6
VTPOS-No 66
VTPOS-OUT66
VTPOS-IN7
C1350/7
C1351/7
VTPOS-No 67
VTPOS-OUT67
VTPOS-IN8
C1350/8
C1351/8
VTPOS-No 68
VTPOS-OUT68
...
...
C1380/x
C1381/x
...

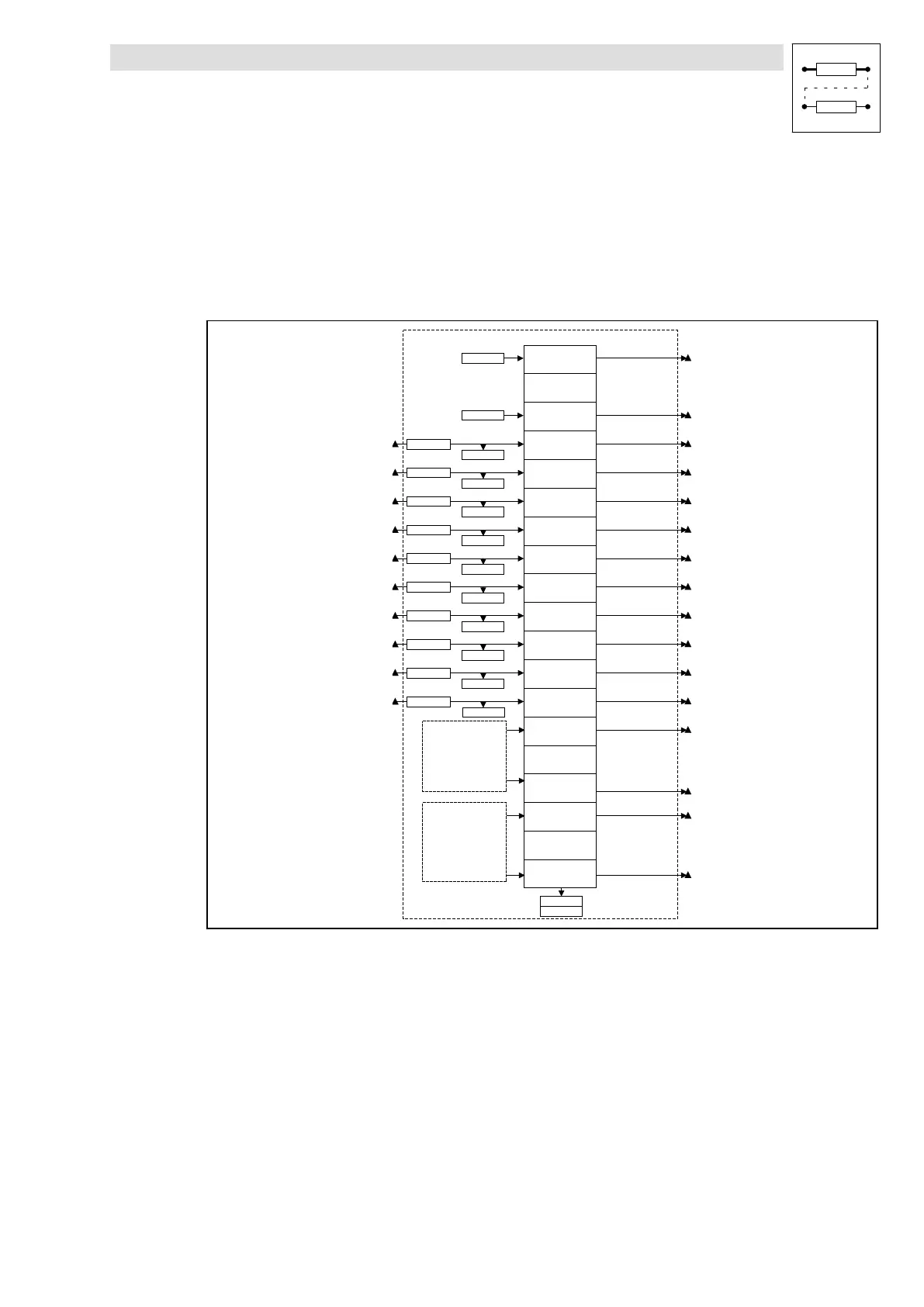

Fig. 3−220 Function block VTPOS
