Lenze EVS9322EP User Manual

Function library
Function blocks
3−105
l
EDSVS9332P−EXT DE 2.0
AND3
&
AND3-IN1
AND3-IN2
AND3-IN3
AND3-OUT
C0825/1
C0825/2
C0825/3
C0824/1
C0824/2
C0824/3

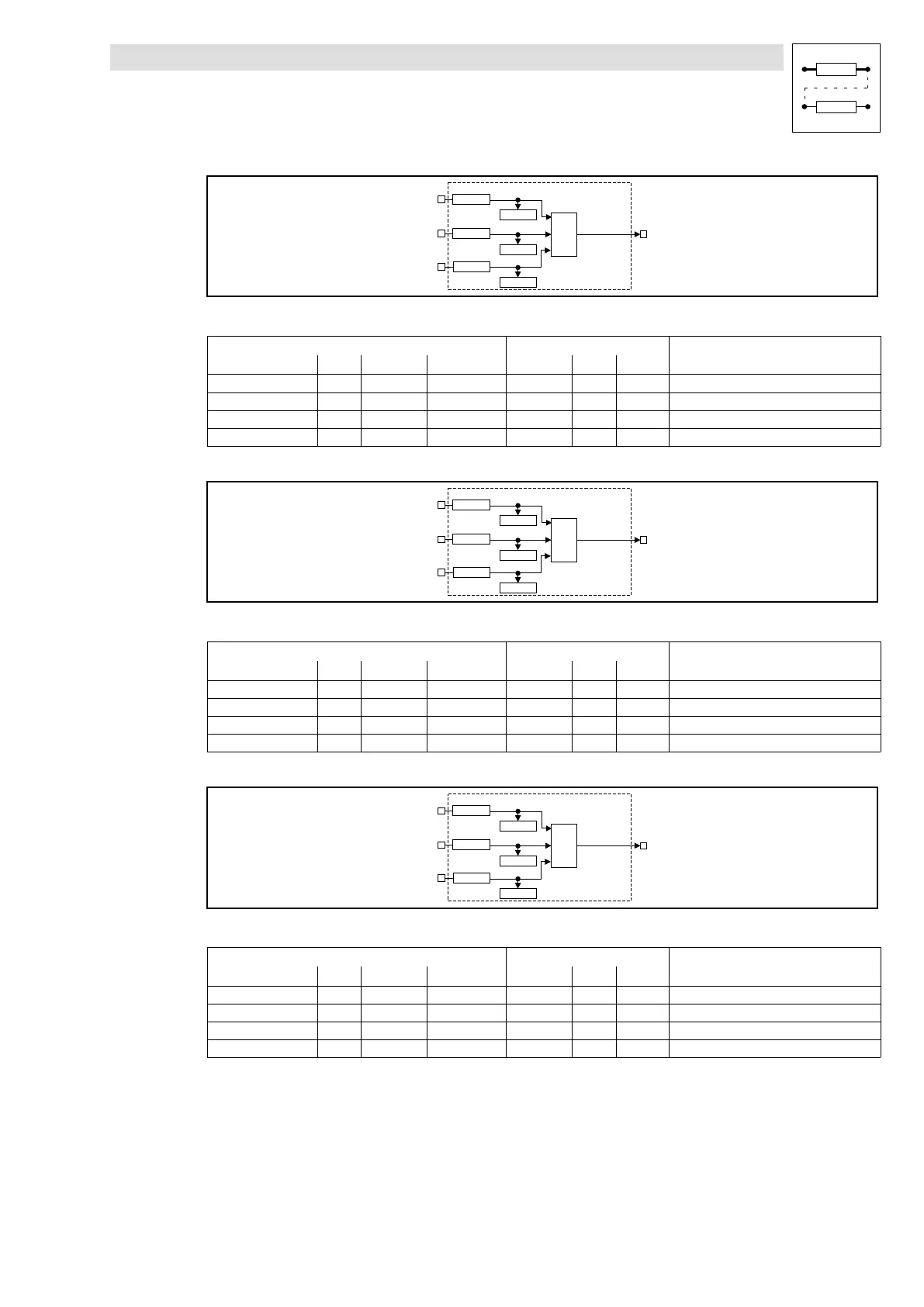

Fig. 3−52 AND operation (AND3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND3−IN1 d C0825/1 bin C0824/1 2 1000 −
AND3−IN2 d C0825/2 bin C0824/2 2 1000 −
AND3−IN3 d C0825/3 bin C0824/3 2 1000 −
AND3−OUT d − − − − − −
AND4
&
AND4-IN1
AND4-IN2
AND4-IN3
AND4-OUT
C0827/1
C0827/2
C0827/3
C0826/1
C0826/2
C0826/3
Fig. 3−53 AND operation (AND4)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND4−IN1 d C0827/1 bin C0826/1 2 1000 −
AND4−IN2 d C0827/2 bin C0826/2 2 1000 −
AND4−IN3 d C0827/3 bin C0826/3 2 1000 −
AND4−OUT d − − − − − −
AND5
&
AND5-IN1
AND5-IN2
AND5-IN3
AND5-OUT
C0829/1
C0829/2
C0829/3
C0828/1
C0828/2
C0828/3
Fig. 3−54 AND operation (AND5)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND5−IN1 d C0829/1 bin C0828/1 2 1000 −
AND5−IN2 d C0829/2 bin C0828/2 2 1000 −
AND5−IN3 d C0829/3 bin C0828/3 2 1000 −
AND5−OUT d − − − − − −
