3.5.21 Digital−analog converter (CONVDA)
3−151
l
EDSVS9332P−EXT DE 2.0
CONVDA2
CONVDA2-OUT
CONVDA2
CONVDA2.B0
CONVDA2.B1
CONVDA2.B2
CONVDA2.B3
CONVDA2.B4
CONVDA2.B5
CONVDA2.B6
CONVDA2.B7
CONVDA2.B8
CONVDA2.B9
CONVDA2.B10
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
2
10
CONVDA2.B11
2
11
CONVDA2.B12
2
12
CONVDA2.B13
2
13
CONVDA2.B14
2
14
CONVDA2-SIGN
2
15
C1574
C1573/1
C1573/2
C1573/3
C1573/4
C1573/5
C1573/6
C1573/7
C1573/8
C1573/9
C1573/10
C1573/11
C1573/12
C1573/13
C1573/14
C1573/15
C1573/16

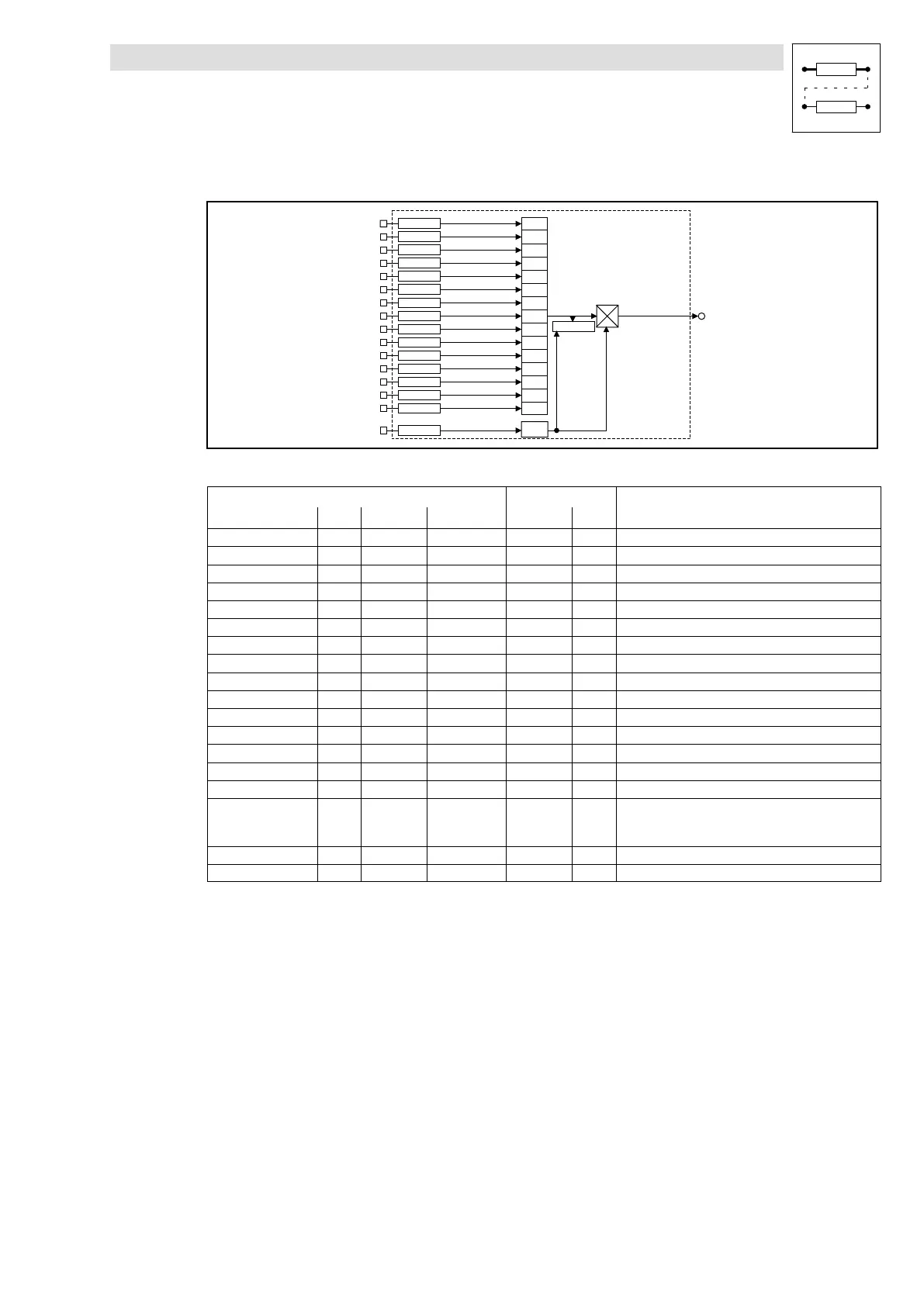

Fig. 3−103 Function block CONVDA2
Signal
Source Note
Name Type DIS DIS format CFG List
CONVDA2.B0 d − − C1573/1 2 −
CONVDA2.B1 d − − C1573/2 2 −
CONVDA2.B2 d − − C1573/3 2 −
CONVDA2.B3 d − − C1573/4 2 −
CONVDA2.B4 d − − C1573/5 2 −
CONVDA2.B5 d − − C1573/6 2 −
CONVDA2.B6 d − − C1573/7 2 −
CONVDA2.B7 d − − C1573/8 2 −
CONVDA2.B8 d − − C1573/9 2 −
CONVDA2.B9 d − − C1573/10 2 −
CONVDA2.B10 d − − C1573/11 2 −
CONVDA2.B11 d − − C1573/12 2 −
CONVDA2.B12 d − − C1573/13 2 −
CONVDA2.B13 d − − C1573/14 2 −
CONVDA2.B14 d − − C1573/15 2 −
CONVDA2−SIGN d − − C1573/16 2 Sign
HIGH
¢ negative sign
LOW ¢ positive sign
CONVDA2−OUT a − − − − −
− − C1574 hex − − Indicates the result
