Function library
Function blocks
3.5.27 Master frequency input (DFIN)
3−166
l
EDSVS9332P−EXT DE 2.0
Signal adaptation
Finer resolutions than the power−of−two format can be realised by connecting an FB (e.g. CONV3 or
CONV4).
Example:
The FB CONV3 converts the speed signal into a quasi−analog signal. The conversion is done
according to the formula:
CONV3−OUT[%] + f[Hz] @
0, 4
Number of increments from C0425
@
C0950
C0951
CONV3
CONV3-OUTCONV3-IN
C0953
C0952
C0950
C0951
C0425
C0427
DFIN
DFIN-OUT
C0426
X9

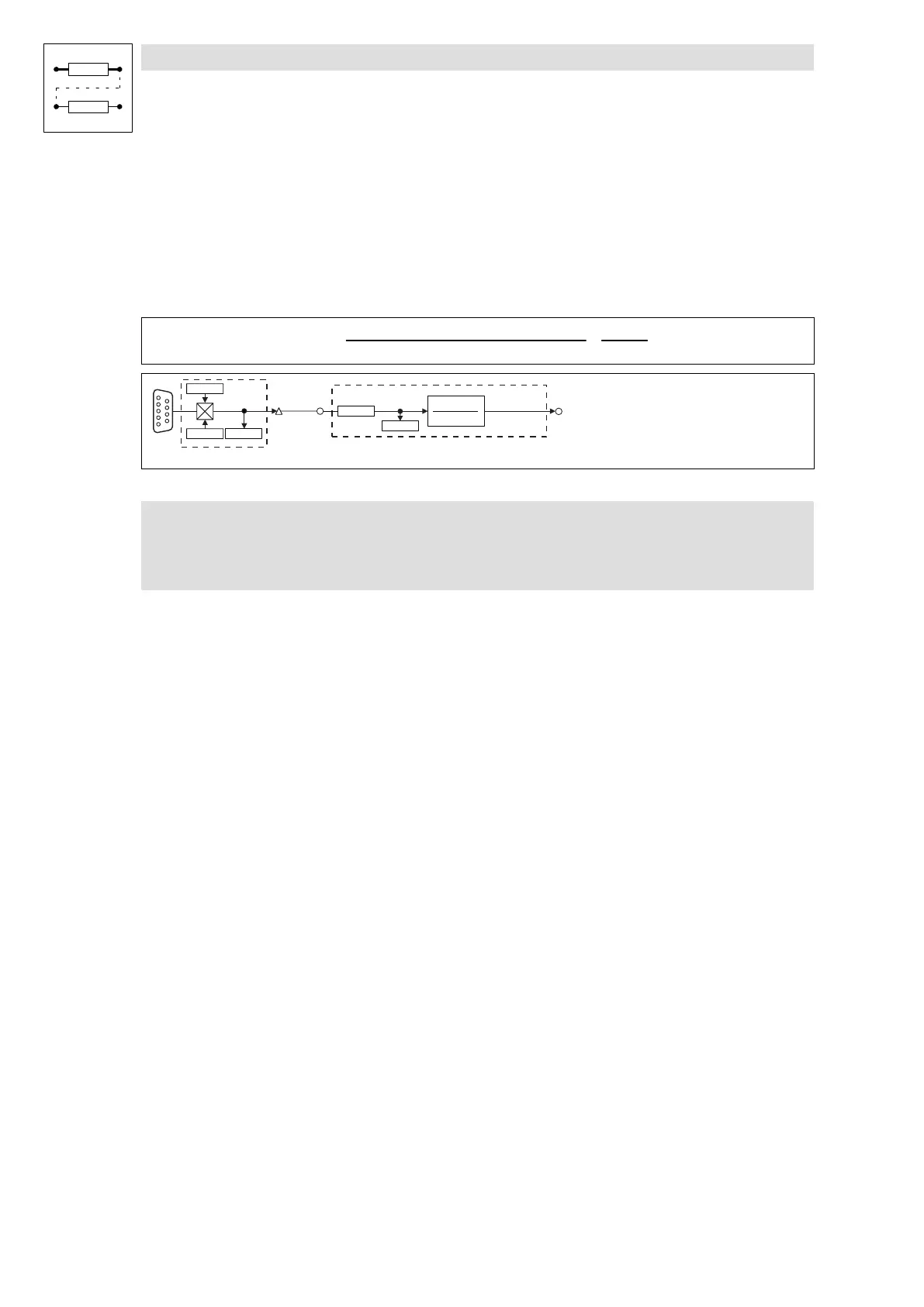

Fig. 3−120 Digital frequency input (DFIN) with connected converter
( STOP!
If C0540 = 0, 1, 2, 3 and a feedback system C0025 > 10, you must not use the
digital frequency input X9 anymore.
