Function librar
y
P
ositioning control
3.4.8
Homing
3−57
l
EDSVS9332P−EXT DE 2.0
3.4.8.11

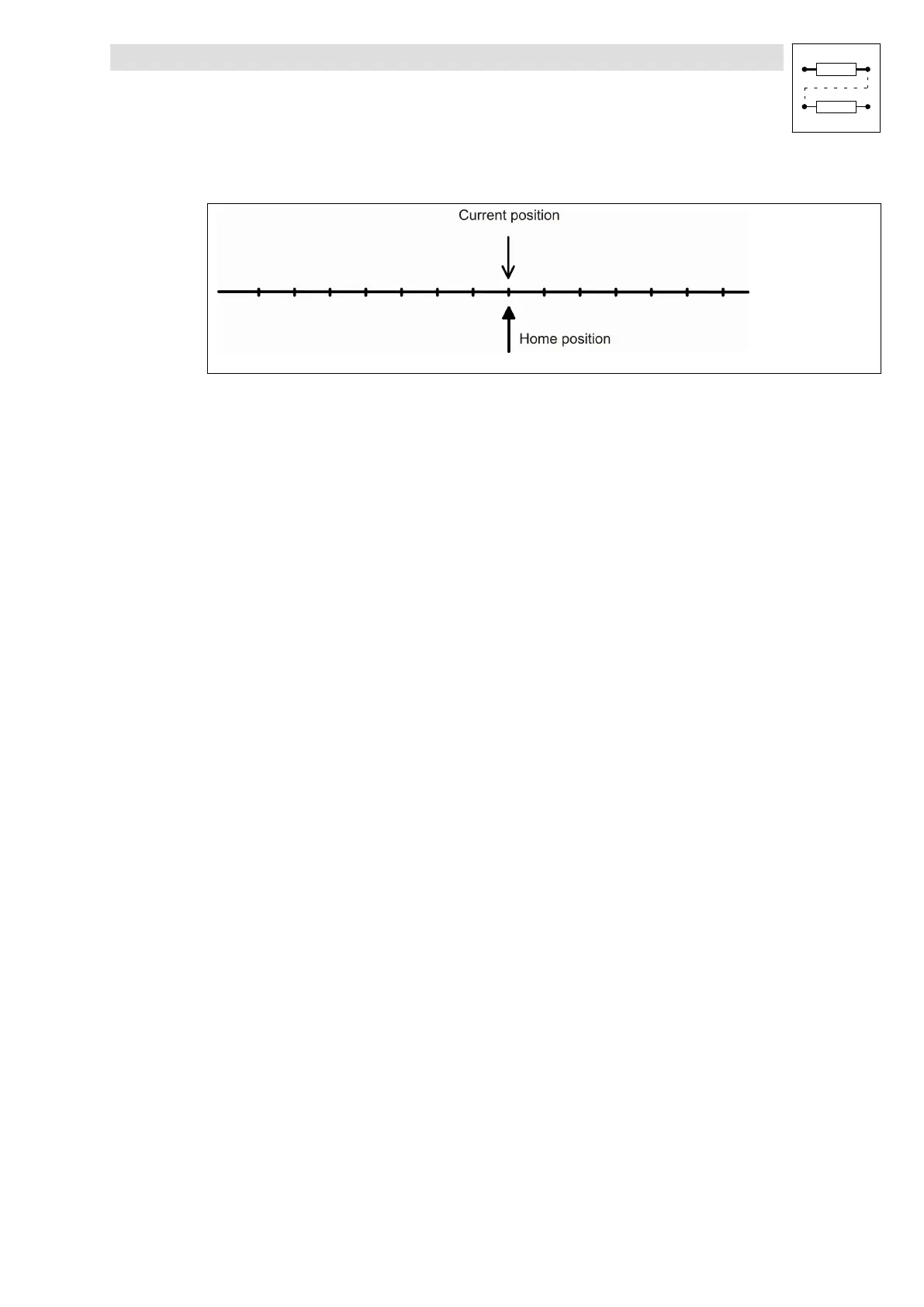

Set homing value
9300pos042
Purpose
If the home position is known (e.g. by a higher−level master system), homing is not necessary
.
Function
l
Select "Set homing value" under "PS mode" in the PS (C1311 = 4).
l
In this case, the current position is the r
eference point.
l
The zero points of the measuring systems ar
e set accordingly (
3−34).
84
86
Table of Contents
Default Chapter
3
Table of Contents
3
Edsvs9332P−Ext de
6
1 Preface
7
How to Use this System Manual
9
Document History
10
Products to Which the System Manual Applies
11
Definition of Notes Used
12
3 Function Library
29
Working with Function Blocks
33
Elements of a Function Block
34
Connecting Function Blocks
36
Entries into the Processing Table
40
Table of Function Blocks
42
Table of Free Control Codes
45
Positioning Control (POS)
47
Dimensions
53
Machine Parameters
54
Positioning Modes (C1210)
58
Measuring Systems
62
Absolute Value Encoder
66
Control Structure
70
Travel Range Limits
72
Homing
74
Travel Profile Generator and Setpoints
86
Manual Operation
95
Program Operation
98
Variable Tables (VT)
103
Program Sets (PS)
104
POS−TP (Touch−Probe Saving of the Actual Position Value)
119
POS−PFI (Program Function Inputs)
121
POS−PFO (Program Function Outputs)
122
Function Blocks
123
Addition Block (ADD)
124
Automation Interface (AIF−IN)
125
Automation Interface (AIF−OUT)
128
Analog Inputs Via Terminal X6/1, X6/2 and X6/3, X6/4 (AIN)
130
AND Operation (AND)
132
Inverter (ANEG)
135
Analog Output Via Terminal 62/63 (AOUT)
136
Arithmetic Block (ARIT)
138
Arithmetic Block (ARITPH)
139
Analog Signal Changeover Switch (ASW)
142
BCD Decade Switch (BCD)
144
Holding Brake (BRK)
155
System Bus (CAN−IN)
160
System Bus (CAN−OUT)
161
Comparator (CMP)
162
Long Comparator (CMPPH)
167
Signal Conversion (CONV)
172
Analog−Digital Converter (CONVAD)
174
Analog−Phase Converter (CONVAPH)
176
Digital−Analog Converter (CONVDA)
178
Phase−Analog Converter (CONVPHA)
181
Phase Conversion (CONVPHPH2)
183
Characteristic Function (CURVE)
184
Dead Band (DB)
187
Drive Control (DCTRL)
188
Master Frequency Input (DFIN)
192
Digital Frequency Output (DFOUT)
195
Digital Frequency Ramp Function Generator (DFRFG)
199
Digital Frequency Processing (DFSET)
205
Delay Elements (DIGDEL)
210
Freely Assignable Digital Inputs (DIGIN)
213
Freely Assignable Digital Outputs (DIGOUT)
214
Free Analog Display Code (DISA)
215
Free Phase Display Code (DISPH)
217
First Order Derivative−Action Element (DT1)
218
Free Piece Counter (FCNT)
219
Free Digital Outputs (FDO)
221
Freely Assignable Input Variables (FEVAN)
223
Fixed Setpoints (FIXSET)
230
Flipflop Element (FLIP)
232
Limiting Element (LIM)
235
Internal Motor Control (MCTRL)
236
Motor Phase Failure Detection (MLP)
245
Monitor Outputs of Monitoring System (MONIT)
246
Motor Potentiometer (MPOT)
248
Logic NOT
251
Speed Setpoint Conditioning (NSET)
253
OR Operation (OR)
258
Oscilloscope Function (OSZ)
261
Process Controller (PCTRL1)
265
Signal Adaptation for Angle Signals (PHDIV)
268
Phase Integrator (PHINT)
269
Delay Element (PT1−1)
272
CW/CCW/QSP Linking (R/L/Q)
273
Ramp Function Generator (RFG)
274
Sample and Hold Function (S&H)
276
Angle Value Selection (SELPH)
277
Switching Points (SP)
279
Output of Digital Status Signals (STAT)
286
Control of a Drive Network (STATE−BUS)
287
Multi−Axis Synchronisation (SYNC1)
288
Teach−In in Programming (TEACH)
296
Edge Evaluation (TRANS)
298
Variable Table − Acceleration (VTACC)
301
Variable Table Piece Number (VTPCS)
303
Variable Table − Target Position/Position Values (VTPOS)
305
Variable Table Waiting Time (VTTIME)
307
Variable Table − Speed (VTVEL)
309
4 Application Examples
311
Example 1: Dosing System
313
Example 2: Spray Nozzle Control
317
Example 3: Path Control
320
Commissioning of the Path Control
323
5 Appendix
325
Glossary
327
Index
329
