Lenze i950 Series User Manual

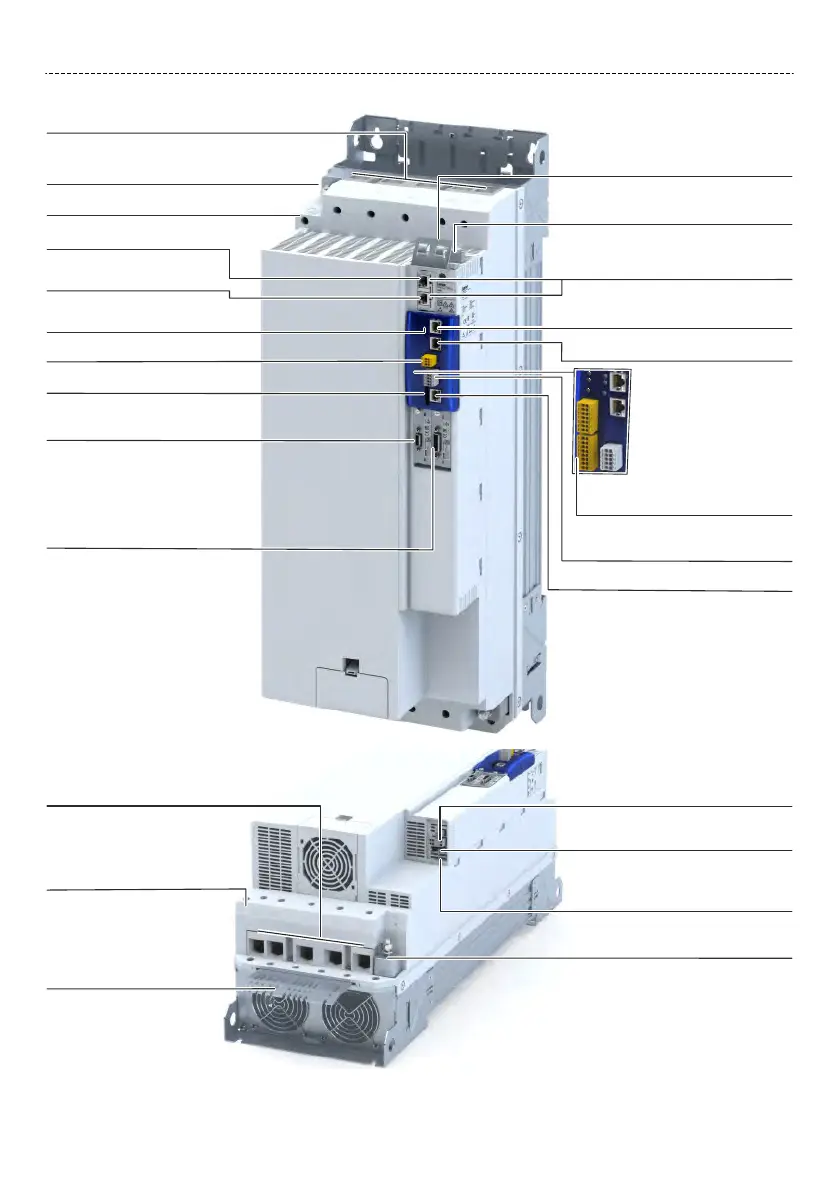

Power range 90 kW ... 110 kW
X2x6
Network
Option
X2x7
Network
Option
Inverter status LEDs
Control electronics
24 V supply
On-board EtherCAT IN
On-board EtherCAT OUT
Basic Safety - STO
Control terminal
Commissioning, diagnostics
Engineering port
X16
X3
X1
X237
X236
Network status LEDs
X5
Load encoder or
master encoder
Option
Option
Motor encoder
Mains connection/DC bus
X100
PE connection
B
A
Option
SD card
Shielding of
control connections
IT screw
Extended Safety
Option
X82/
X83
IT screw
Brake resistor
Motor connection
PTC input
X109
Motor holding brake
24 V supply
X107
Motor holding brake
X106
Shielding of
motor connection
X105
PE connection
Product in
formaon
Features
113

Lenze i950 Series Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Altitude	Up to 1000 m without derating
Control Modes	V/f control, vector control, servo control
Communication Interfaces	EtherCAT, PROFINET, CANopen, Modbus TCP
Ambient Temperature	-10°C to 40°C
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
Cooling Method	Air cooling
Frequency Range	0 to 599 Hz
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200 V to 480 V
Output Voltage	0 V to 480 V
Storage Temperature	-25 to +70 °C (-13 to 158 °F)
