Lenze i950 Series User Manual

Connecon of one cable technology (OCT) via HIPERFACE DSL®
Precondions
•
The one cable technology (OCT) is possible with MCS and m850 servo motors from Lenze.
•
The motor must be provided with a HIPERFACE DSL® encoder.
•
The Lenze hybrid cable EYP0080AxxxxM11A00 or EYP0080AxxxxM11A00 must be used as a connecon
cable.
•
Make sure no motor encoder module is plugged into slot A.
•
One Cable Technology can only be used with the "Basic Safety STO" version.
Lenze hybrid cables EYP0080AxxxxM1xA00 ensure only basic insulaon t
o power electronics.
Connecon diagr
am
EYP0080AxxxxM1xA00
M 3~
GB
24B
DC 24 V SELV/PELV
(+19.2 V ... +28.8 V)
BD2 BD1
bk
1
bk
2
bk
3
bk
5
+
bk
6
-
wh
+DSL
bl
-DSL
gnye

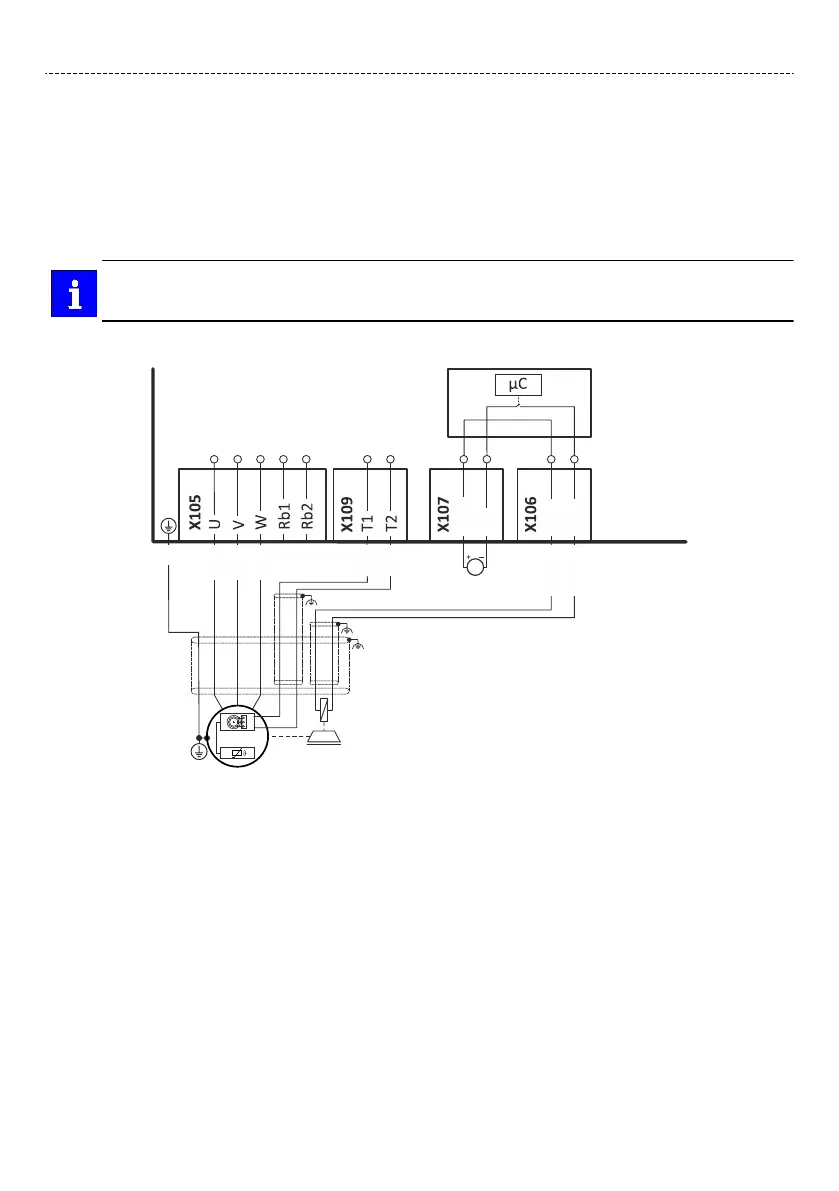

Fig. 18: Connecon diagr
am HIPERFACE DSL® (OCT)
Electrical ins
tallaon
Connecon of one cable technology (OCT) via HIPERFACE DSL®
159
