Lenze i950 Series User Manual

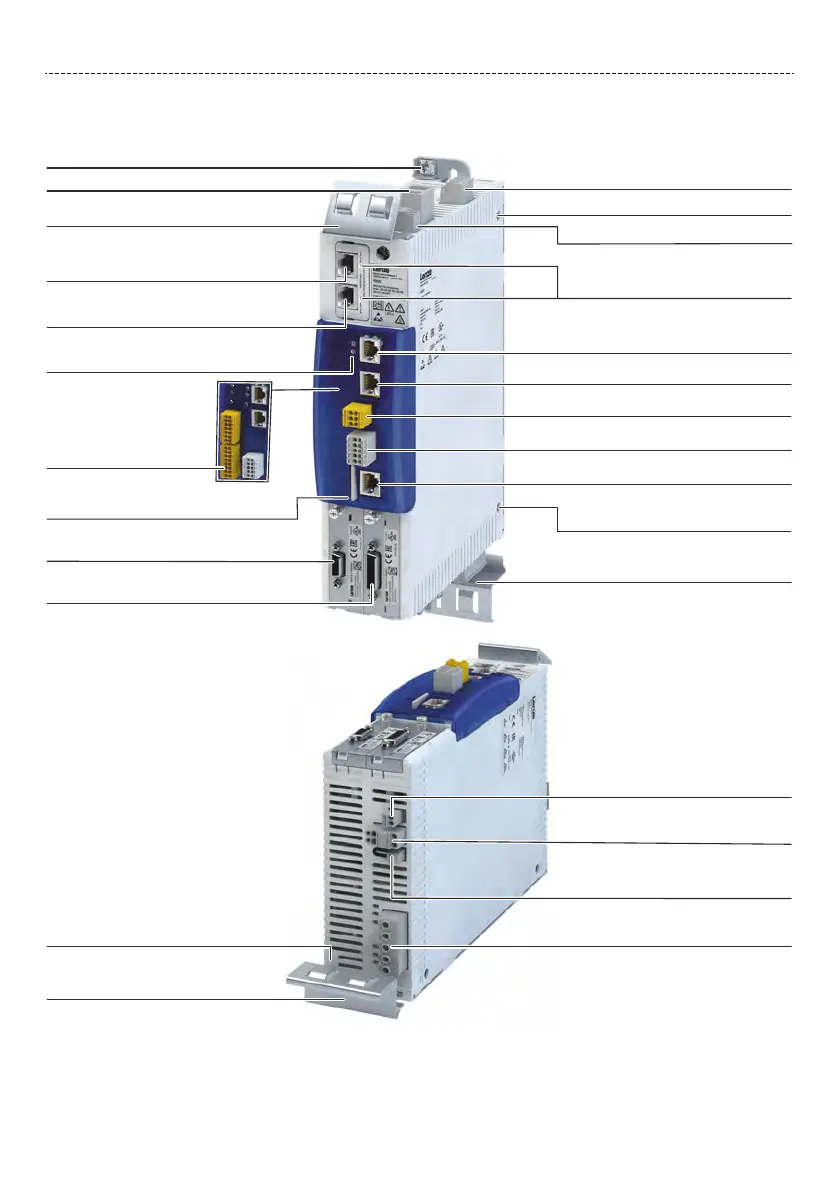

Ausstaung
Leistungsbereich 0.37 kW ... 4 kW
Schirmauflage Steueranschlüsse
Extended Safety
Option
X82/
X83
X2x6
Netzwerk
Option
X2x7
Netzwerk
Option
Status-LEDs Inverter
SD-Karte
Option
Motorgeber
Option
Option
Lastgeber oder Leitgeber
A
B
PE-Anschluss
Schirmauflage
Motoranschluss
Option
Netzanschluss
X100
IT-Schraube
X5
24 V-Versorgung
Steuerelektronik
Status-LEDs Netzwerk
X236
On-Board-EtherCAT IN
X237
On-Board-EtherCAT OUT
X1
Basic Safety - STO
X3
Steuerklemme
X16
Engineering-Port
Inbetriebnahme, Diagnose
IT-Schraube
X106
Motorhaltebremse
X107
24 V-Versorgung
Motorhaltebremse
X109
PTC-Eingang
X105
Motoranschluss
Bremswiderstand
DC-Bus
Option
PE-Anschluss
X101
HIPERFACE DSL® (OCT)
Option
Schirmauflage
Motoranschluss
Produknformaon
Auss
taung
16

Lenze i950 Series Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Altitude	Up to 1000 m without derating
Control Modes	V/f control, vector control, servo control
Communication Interfaces	EtherCAT, PROFINET, CANopen, Modbus TCP
Ambient Temperature	-10°C to 40°C
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
Cooling Method	Air cooling
Frequency Range	0 to 599 Hz
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200 V to 480 V
Output Voltage	0 V to 480 V
Storage Temperature	-25 to +70 °C (-13 to 158 °F)
