Lenze i950 Series User Manual

10
23
T1
T2
BD1
BD2
1
2
3
5
6
a
c
b
U
V
W
PE

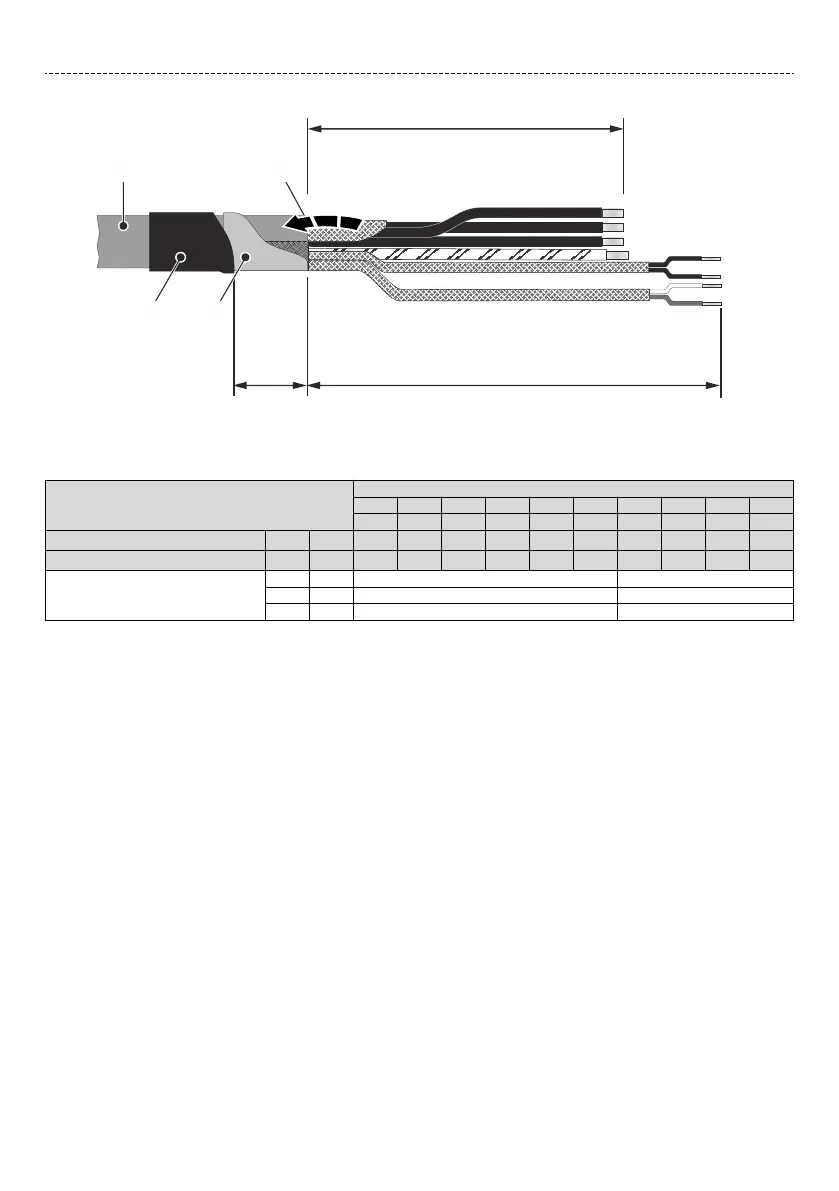

Abb. 9: Leitungsk
onfekonierung
A Hybridleitung
B Schirm
C Leiolie
D Schrumpfschlauch
Umrichter I95AE
137D 155D 175D 215D 222C 240C 255C
155F 175F 222F 240F 275F 311F 315F
Bemessungsleistung P
N
kW 0.37 0.55 0.75 1.5 2.2 4 5.5 7.5 11 15
Bemessungsleistung P
N
HP 0.5 0.75 1 2 3 5 7.5 10 15 20
Abisolierlänge a mm 100 140
b mm 200 220
c mm 25 30
Elektrische Ins
tallaon
Anschluss Einkabeltechnologie (OCT) über HIPERFACE DSL®
69

Lenze i950 Series Specifications

General

Protection Class	IP20
Overload Capacity	150% for 60 seconds
Altitude	Up to 1000 m without derating
Control Modes	V/f control, vector control, servo control
Communication Interfaces	EtherCAT, PROFINET, CANopen, Modbus TCP
Ambient Temperature	-10°C to 40°C
Safety	STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safely Limited Speed)
Cooling Method	Air cooling
Frequency Range	0 to 599 Hz
Relative Humidity	5% to 95% (non-condensing)
Input Voltage	200 V to 480 V
Output Voltage	0 V to 480 V
Storage Temperature	-25 to +70 °C (-13 to 158 °F)
