- 102 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

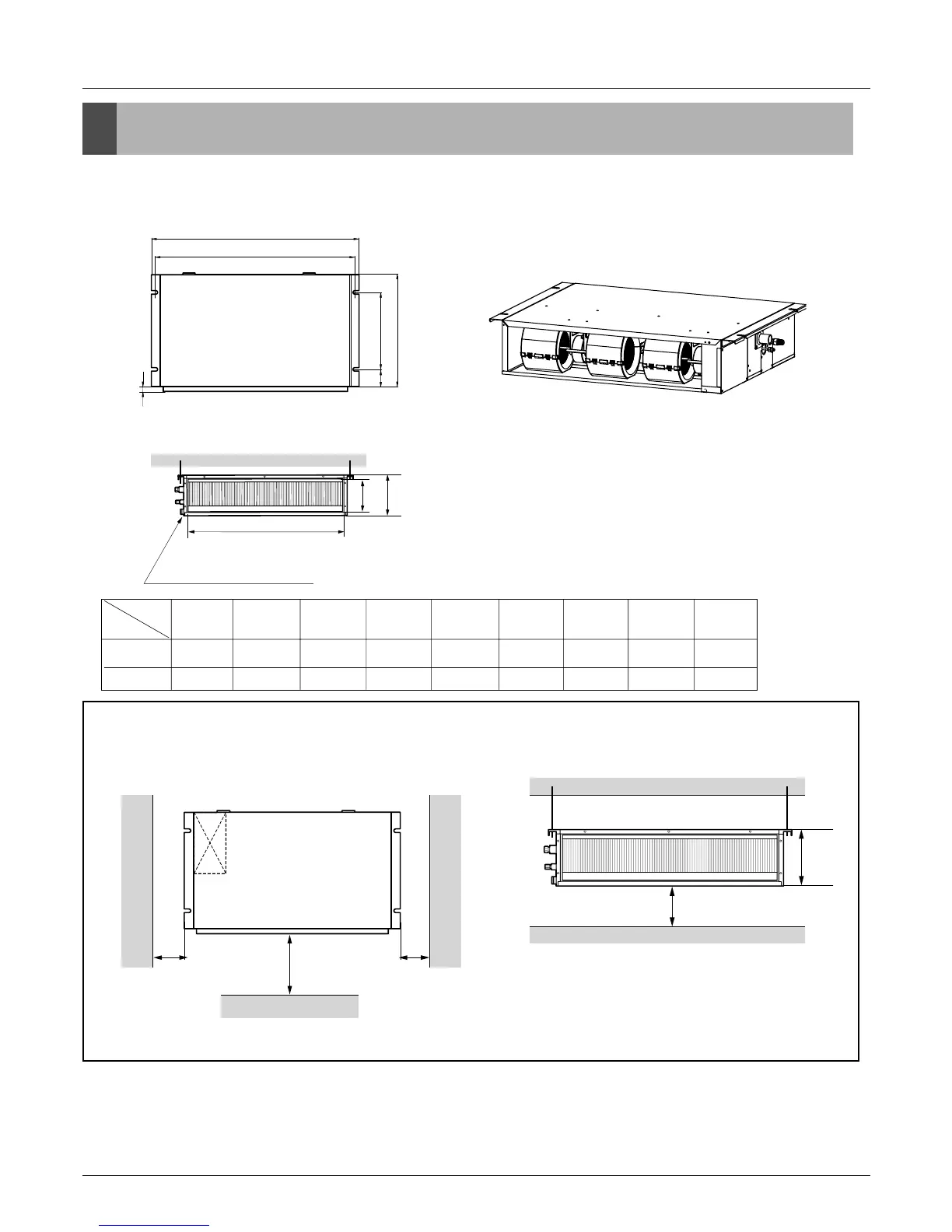

4. Dimensional Drawings
Dimensional Drawings
ARNU07GB1G1/ARNU09GB1G1/ ARNU12GB1G1
ARNU18GB2G1/ARNU24GB2G1
Front view
Top view
(unit: mm)
(unit: mm)
❉ Suitable dimension "H" is necessary to get
a slope to drain as figure
CE
G
D
A
B
I
F
H
Drainage hole
600600
190
Front
1000
H=20 or more
7/9/12k BTU/h
850 900 383 570 93.5 190 20.6 795 163
18/24k BTU/h 1130 1180 383 570 93.5 190 20.6 1065 163
Dimension
Capacity
ABCDEFGH I
