Nomenclature
4. Nomenclature
4.1 Indoor Unit
4.2 Outdoor Unit

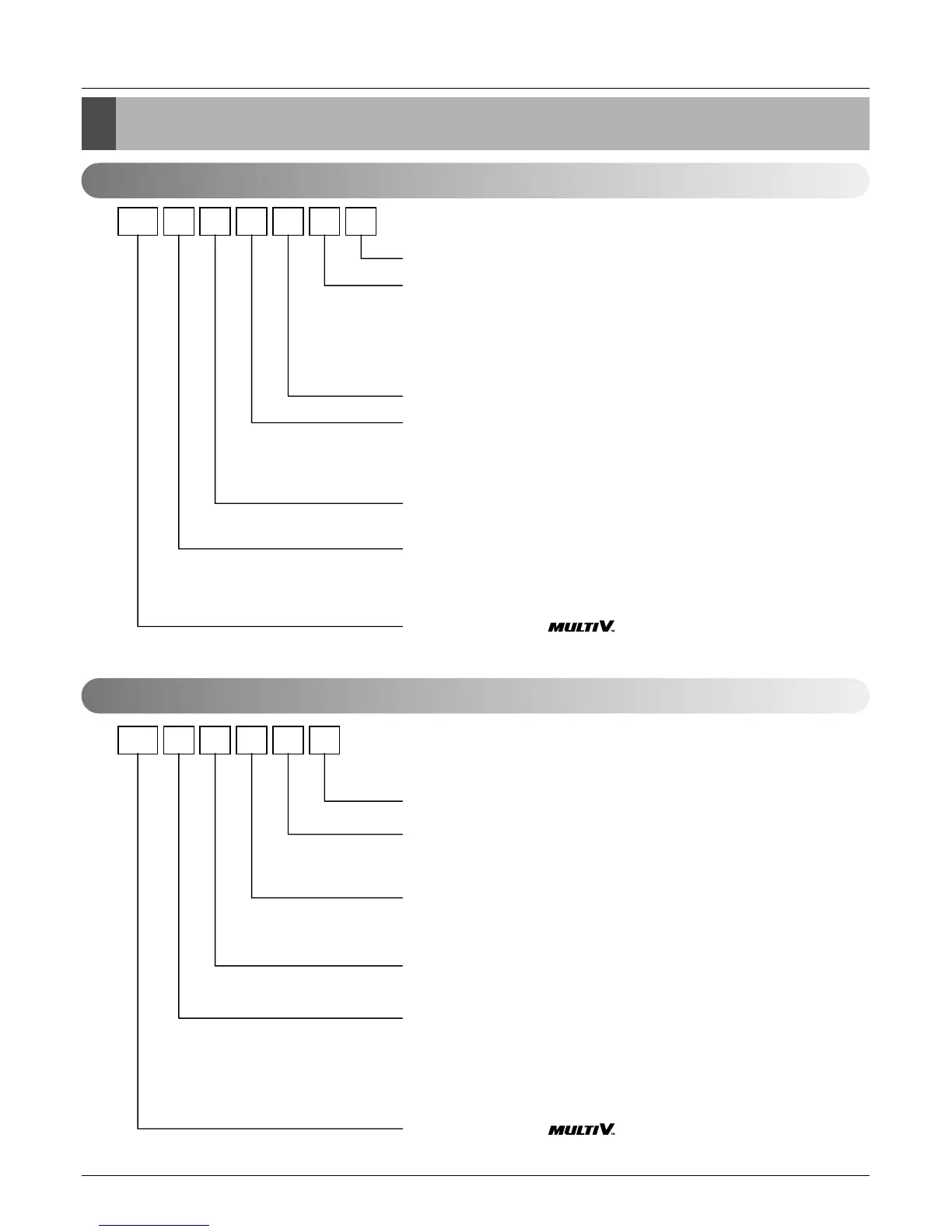

ARN U G07 ATJ 1
Serial Number
Chassis Name
Electrical Ratings
1:1Ø, 115V, 60Hz 2: 1Ø, 220V, 60Hz
6:1Ø, 220 ~ 240V, 50Hz 7: 1Ø, 100V, 50/60Hz
G:1Ø, 220 ~ 240V, 50Hz / 220V 60Hz
Total Cooling Capacity in Btu/h unit
EX) 5,000 Btu/h➞'05' 18,000 Btu/h➞'18'
Combination of Inverter Type and
Cooling Only or Heat Pump
N: AC Inverter and H/P V: AC Inverter and C/O
U: DC Inverter and H/P and C/O
Indicates that this is System
Indoor Unit using the R410A
ARU N 8100 T1
Serial Number
Air Discharge Type
S:Side Discharge
T:Top Discharge
Electrical Ratings
8:3Ø, 380 ~ 415V, 50Hz 9: 3Ø, 380V, 60Hz
A: 3Ø, 220V, 50Hz B: 3Ø, 220V, 60Hz
Total Cooling Capacity in Horse Power(HP) unit
EX) 4.5HP➞'45' 10HP➞'100'
Combination of Inverter Type and
Cooling Only or Heat Pump
N: AC Inverter and H/P V: AC Inverter and C/O
H: H/P(Sub Unit) C: C/O(Sub Unit)
B: AC Inverter and Heat Recovery
S: Heat Recovery (Sub Unit)
Indicates that this is System
Outdoor Unit using the R410A
Combinations of functions
A:Basic function G:Low Static Motor
L:Nano Plasma(Wall Mounted)
C:Plasma(Ceiling Cassette) Q:Plasma(Low Static Duct)
ART COOL Type Panel Color
B:Blue D:Wood M:Metal R:Mirror W:White C:Cherry V:Silver
