Dimensions

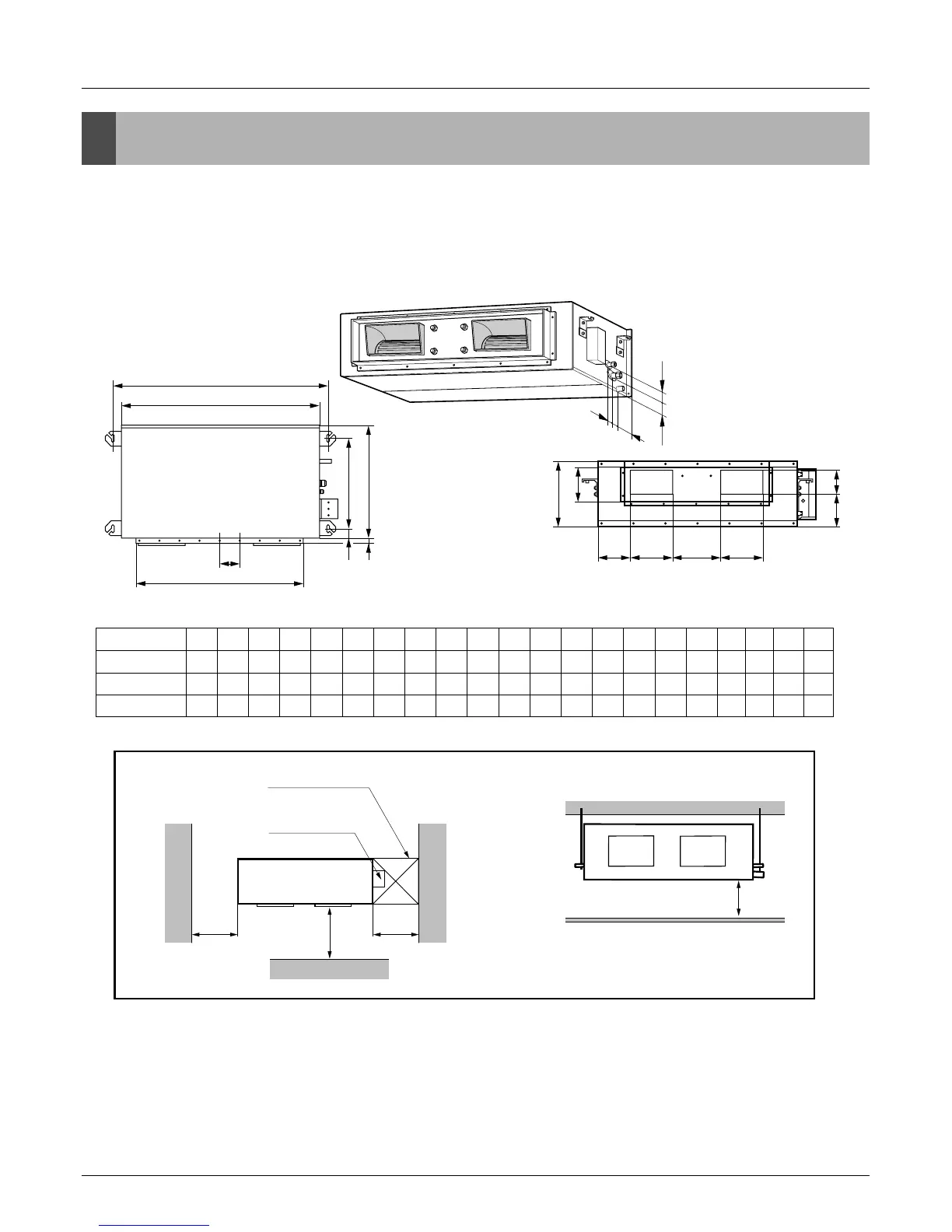

4. Dimensional Drawings
ARNU18GBHA1
ARNU24GBHA1
ARNU28GBGA1
ARNU36GBGA1
ARNU42GBGA1
ARNU48GBRA1
ARNU07GBHA1
ARNU09GBHA1
ARNU12GBHA1
ARNU15GBHA1
C D E F (G) H J K a b c d e f h i j k l
355 47 450 30 87 750 158 260 64 243 212 243 106 130 52 65 83 19 165
355 47 450 30 87 830 186 298 232 243 232 243 116 160 53 65 83 19 165
477 56 590 30 120 1006 294 380 215 279 241 279 185 168 51 98 83 17 172
Model A B
7/9/12/15/18/24k BH 932 882
28/36/42k BG 1232 1182
48k BR 1282 1230
(Unit: mm)
l
i
h
j
k
A
H
CD
EF
B
(G)
ab c d
K
J
fe
Top view
(unit: mm)
Front view
600600
Front
Inspection hole
❈ Suitable dimension "H" is necessary
to get a slope to drain as figure.
(600X600)
Control box
1000
H
