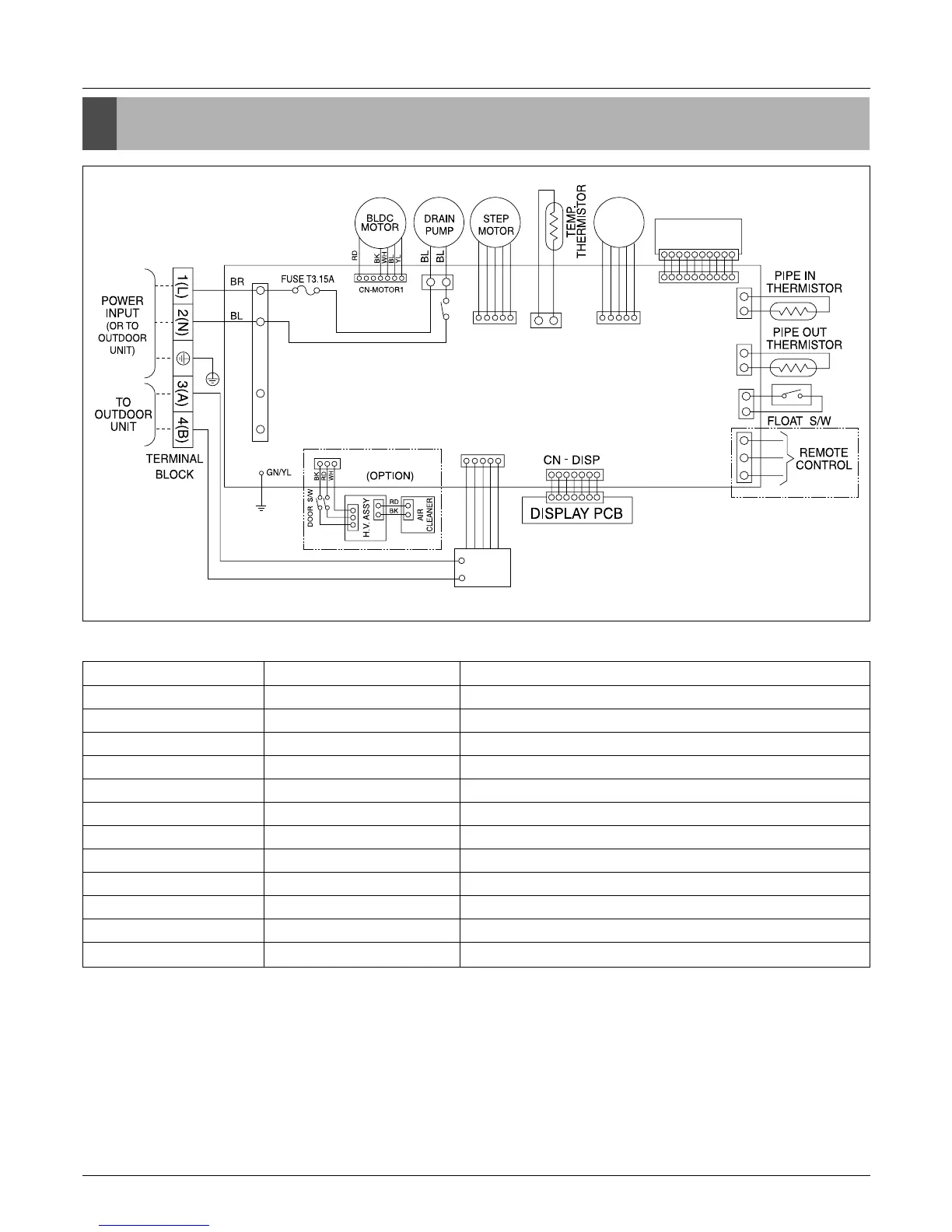

6. Wiring Diagrams
Wiring Diagrams
(Accessory)
Sub
PCB
DRY
CONTACT
EEL
CONNECTOR NUMBER LOCATION POINT FUNCTION
CN-POWER AC POWER SUPPLY AC POWER LINE INPUT FOR INDOOR CONTROLLER
CN-MOTOR2 FAN MOTOR OUTPUT MOTOR OUTPUT OF BLDC
CN-D/PUMP DRAIN PUMP OUTPUT AC OUTPUT FOR DRAIN PUMP
CN-COMM COMMUNICATION CONNECTION BETWEEN INDOOR AND OUTDOOR
CN-DISP1 DISPLAY DISPLAY OF INDOOR STATUS
CN-EEV EEV OUTPUT EEV CONTROL OUTPUT
CN-STEP/M1 STEP MOTOR STEP MOTOR OUTPUT
CN-FLOAT FLOAT SWITCH INPUT FLOAT SWITCH SENSING
CN-PIPE PIPE SENSOR PIPE THERMISTOR
CN-PIPE/O DISCHARGE PIPE SENSOR DISCHARGE PIPE THERMISTOR
CN-ROOM ROOM SENSOR ROOM THERMISTOR
CN-REMO REMOTE CONTROLLER REMOTE CONTROL LINE

LG ARNU Series Specifications

General

Series	ARNU
Control	Remote Control
Cooling Capacity	9, 000 - 36, 000 BTU/h
Heating Capacity	9, 000 - 36, 000 BTU/h
Operating Temperature (Cooling)	18°C - 46°C
Power Supply	220-240V, 50Hz
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
