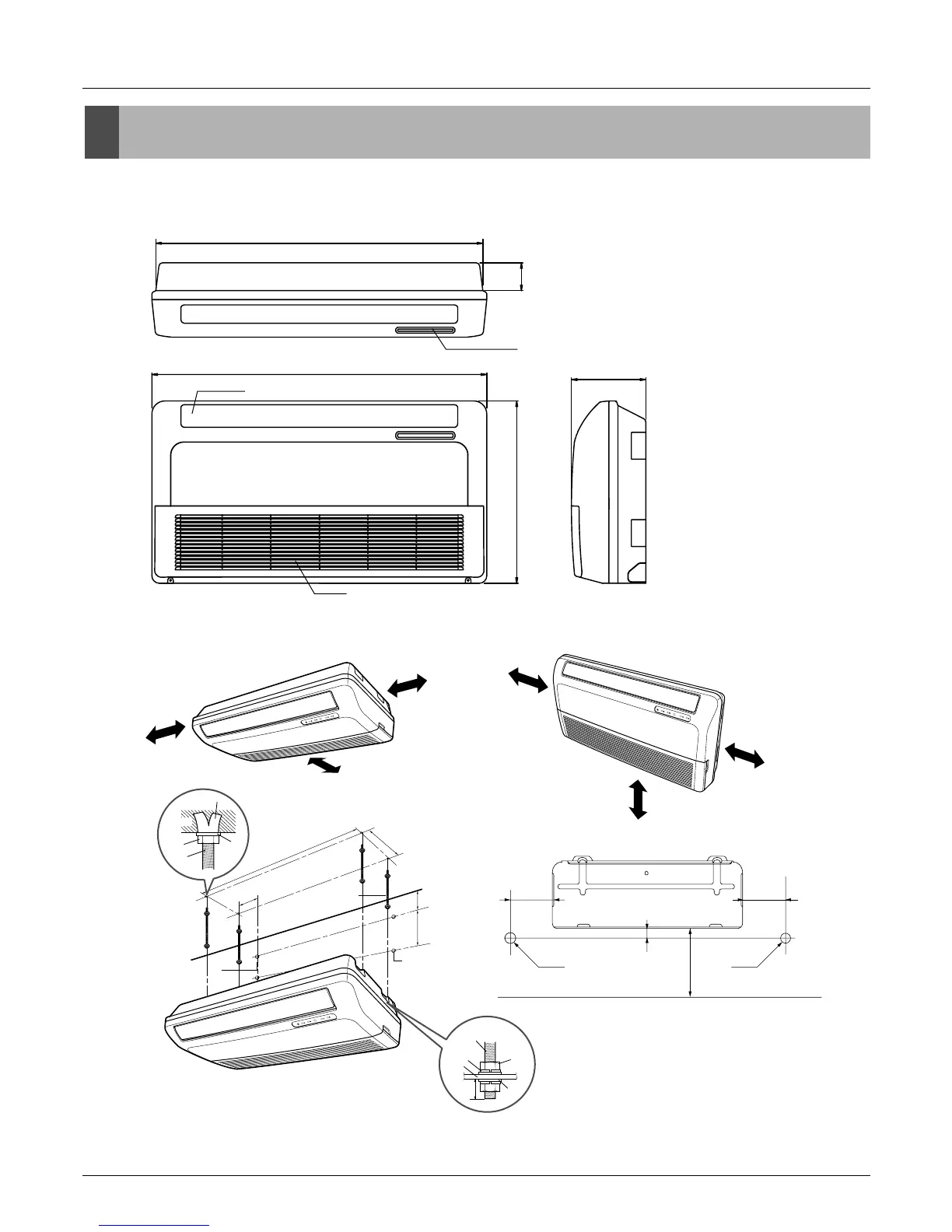

4. Dimensional Drawings
Dimensional Drawings
Signal receiver & Operation indicator
(Unit: mm)
900
490
200
24
879
More than 20Cm
More than 5Cm
More than 20Cm
More than 20Cm
More than 5Cm
More than 20Cm
Suspension bolt
piping hole
(Ø45)
235
50
100
820
40
Washer
Nut
Suspension
bolts
Ceiling
Anchor nut
Drain piping
hole (Ø25)
Suspension
bolts
Spring
washer
Max.
12mm
Hangen
Washer
Nut
Installation plate
Ø70mm
Left rear piping
Right rear piping
Foor
70
120
70
more than 200
Ø70mm
<Ceiling Installation> <Floor Installation>
Air suction grill
Air discharge grill
ARNU09GVEA1
ARNU12GVEA1

LG ARNU Series Specifications

General

Series	ARNU
Control	Remote Control
Cooling Capacity	9, 000 - 36, 000 BTU/h
Heating Capacity	9, 000 - 36, 000 BTU/h
Operating Temperature (Cooling)	18°C - 46°C
Power Supply	220-240V, 50Hz
Dimensions (Indoor Unit)	Varies by model
Dimensions (Outdoor Unit)	Varies by model
Weight (Indoor Unit)	Varies by model
Weight (Outdoor Unit)	Varies by model
