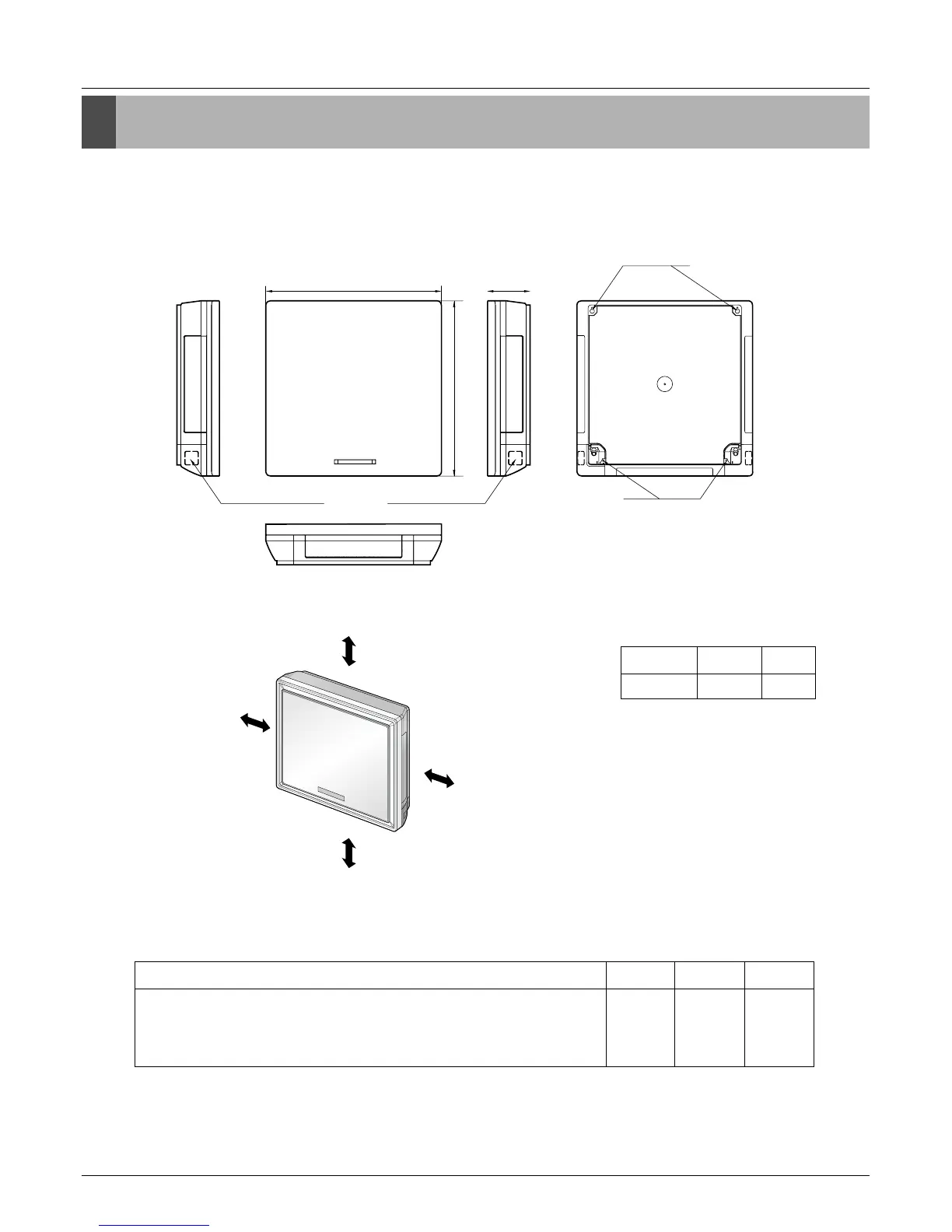

4. Dimensions
Dimensions
ARNU07GSP*1
ARNU09GSP*1
ARNU12GSP*1
Ø12.7
Ø6.35
7, 9, 12k
GasLiquidModel
1. Pipe Specification(mm)
Note:
(Unit: mm)
Pipe Hole
Fix Hole
Hanger Hole
H
W
D
More than 20cm
More than 50cm
More than 1.5m
More than 50cm
Model
ARNU07GSP*1
ARNU09GSP*1
ARNU12GSP*1
W
570
H
568
D
137
