LG ARNU Series User Manual

- 162 -
Copyright ©2009 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Wiring Diagrmas

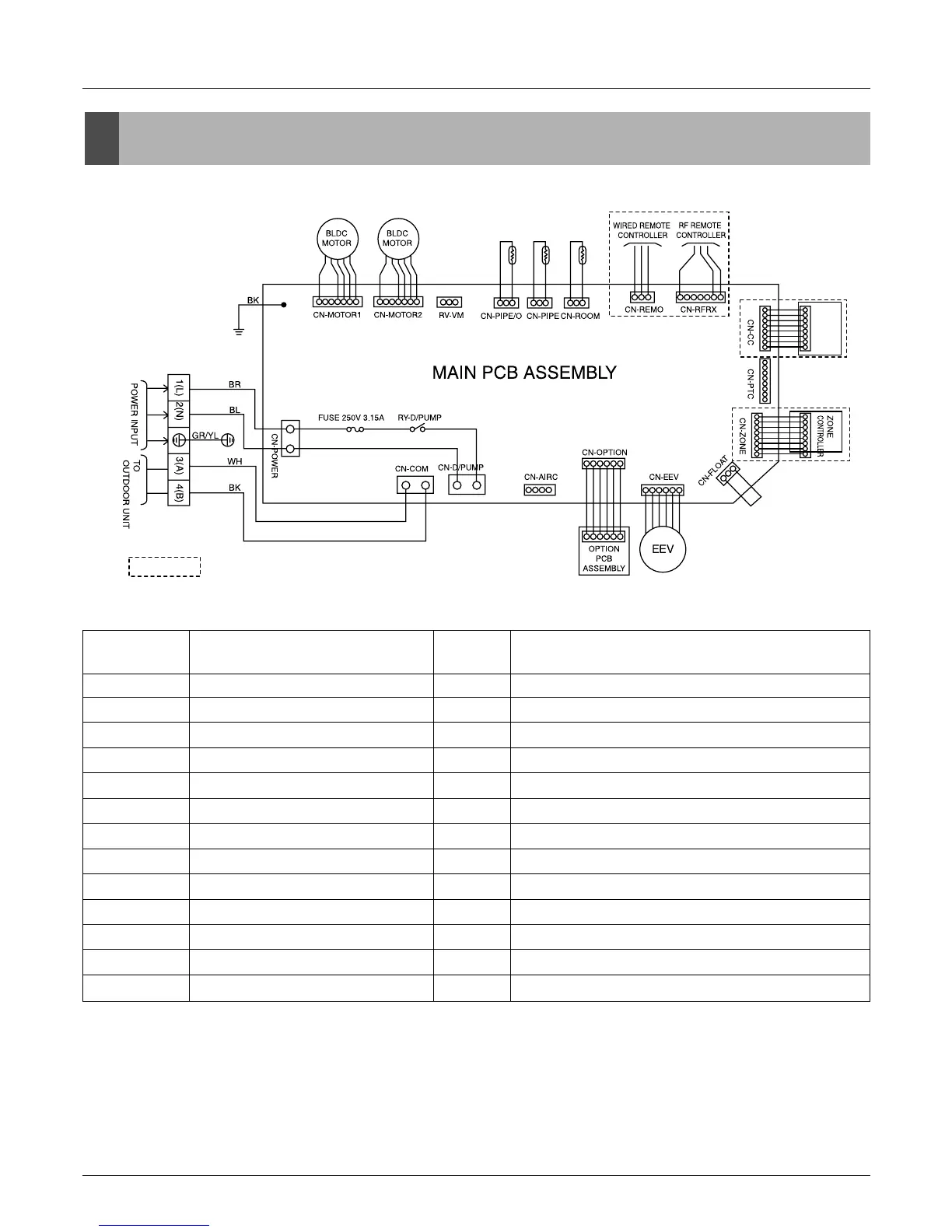

6. Wiring Diagrams
Accessory
DRY
CONTACT
CONNECTOR
SPEC. COLOR DESCRIPTION
NUMBER
CN-MOTOR1 AC FAN MOTOR OUTPUT WHITE MOTOR OUTPUT OF PHASE CONTROL
CN-MOTOR2 AC FAN MOTOR OUTPUT WHITE MOTOR OUTPUT OF PHASE CONTROL
CN-PIPE/O DISCHARGE PIPE THERMISTOR RED DISCHARGE PIPE THERMISTOR
CN-PIPE PIPE SENSOR WHITE PIPE THERMISTOR
CN-ROOM ROOM SENSOR YELLOW ROOM THERMISTOR
CN-REMO REMOTE CONTROLLER GREEN REMOTE CONTROL LINE
CN-FLOAT FLOAT SWITCH INPUT BLUE FLOAT SWITCH SENSING
CN-EEV EEV OUTPUT WHITE EEV CONTROL OUTPUT
CN-D/PUMP DRAIN PUMP OUTPUT WHITE AC OUTPUT FOR DRAIN PUMP
CN-OPTION OPTION PWB. WHITE COMMUNICATION BETWEEN MAIN AND OPTION
CN-COM COMMUNICATION WHITE COMMUNICATION BETWEEN INDOOR AND OUTDOOR
CN-D/PUMP DRAIN PUMP OUTPUT WHITE AC OUTPUT FOR DRAIN PUMP
CN-POWER AC POWER SUPPLY WHITE AC POWER LINE INPUT FOR INDOOR CONTROLLER
