3. Front Panel Control UCX series – User's Manual 18

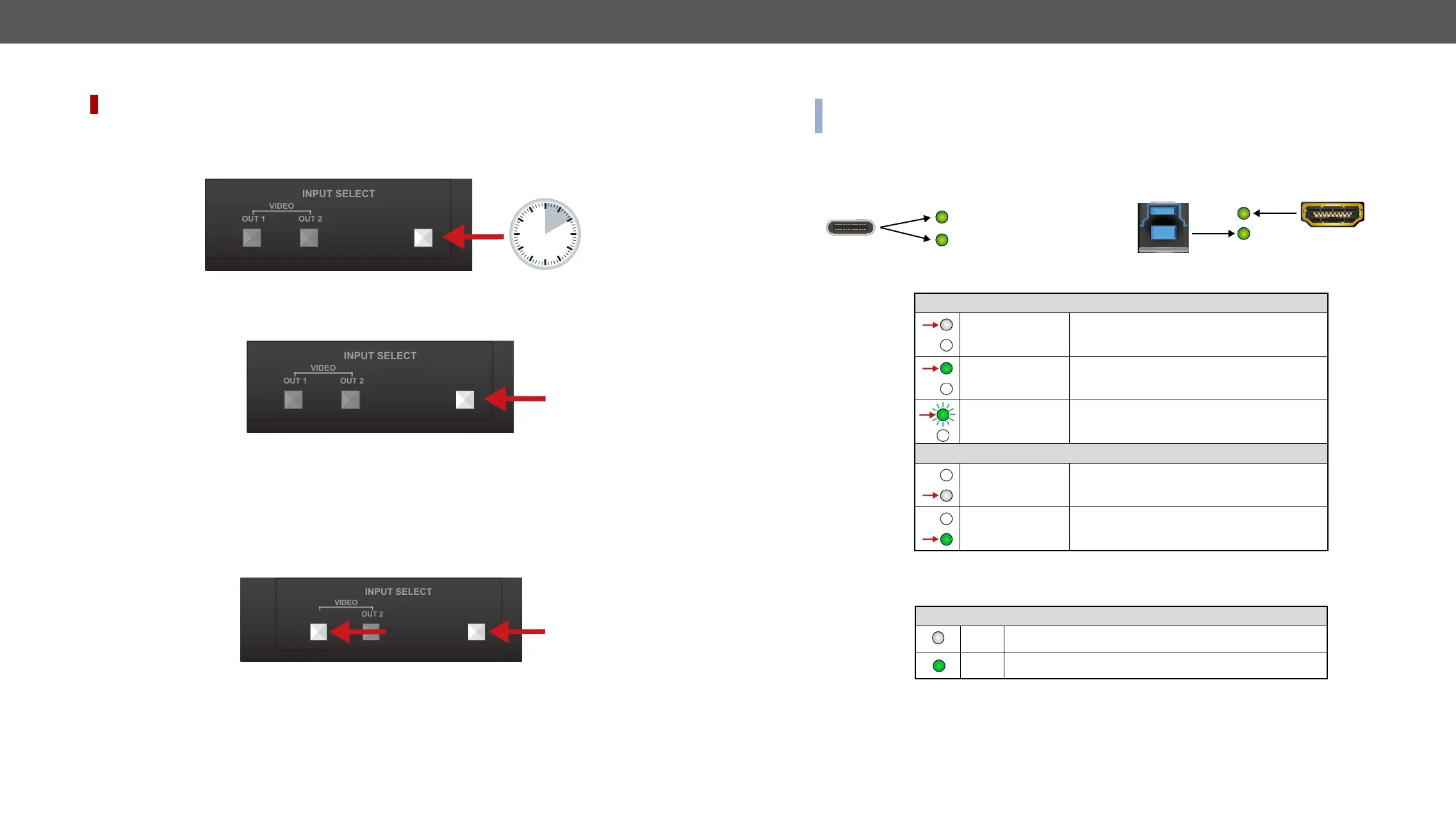

Factory Default By Pressing AUDIO OUT button
DIFFERENCE: #new
To restore factory default values, do the following steps:
Step 1. Make sure the device is powered on and operational.
Step 2. Press and keep pressed the AUDIO OUT button for 10 seconds.
Step 3.
Step 4.
(within 3 seconds).
Step 5.
Factory default settings are listed in the Factory Default Settings section.
Control Lock
Press the VIDEO OUT1 (VIDEO OUT1 (VIDEO IN1 in in UCX-2x1-HC30 model) ) and AUDIO OUT buttons together (within 100 ms)
AUDIO
OUT
AUDIO
OUT
10
sec
AUDIO
OUT
AUDIO
OUT
3x
AUDIO
OUT
AUDIO
OUT
OUT 1
Status LEDs
INFO:
details about the dark mode see Status section.
Front Panel LEDs
Arrangement of the status LEDs #status
Rear Panel LEDs
USB Status
Video Input Status
USB Status
Video Input Status
Video Input Status LED (the upper one)
off There is no valid video signal on this port.
on There is a valid video signal on this port.
blinks once The port is selected by a button press.
USB Status LED (the below one)
off No USB Host or deselected port.
on USB Host connected and selected.
Video Output Status
off The signal is not present or muted.
on The video signal is present.
