D9U001PPB-0101
54/106
9.6.2
Foot rest position

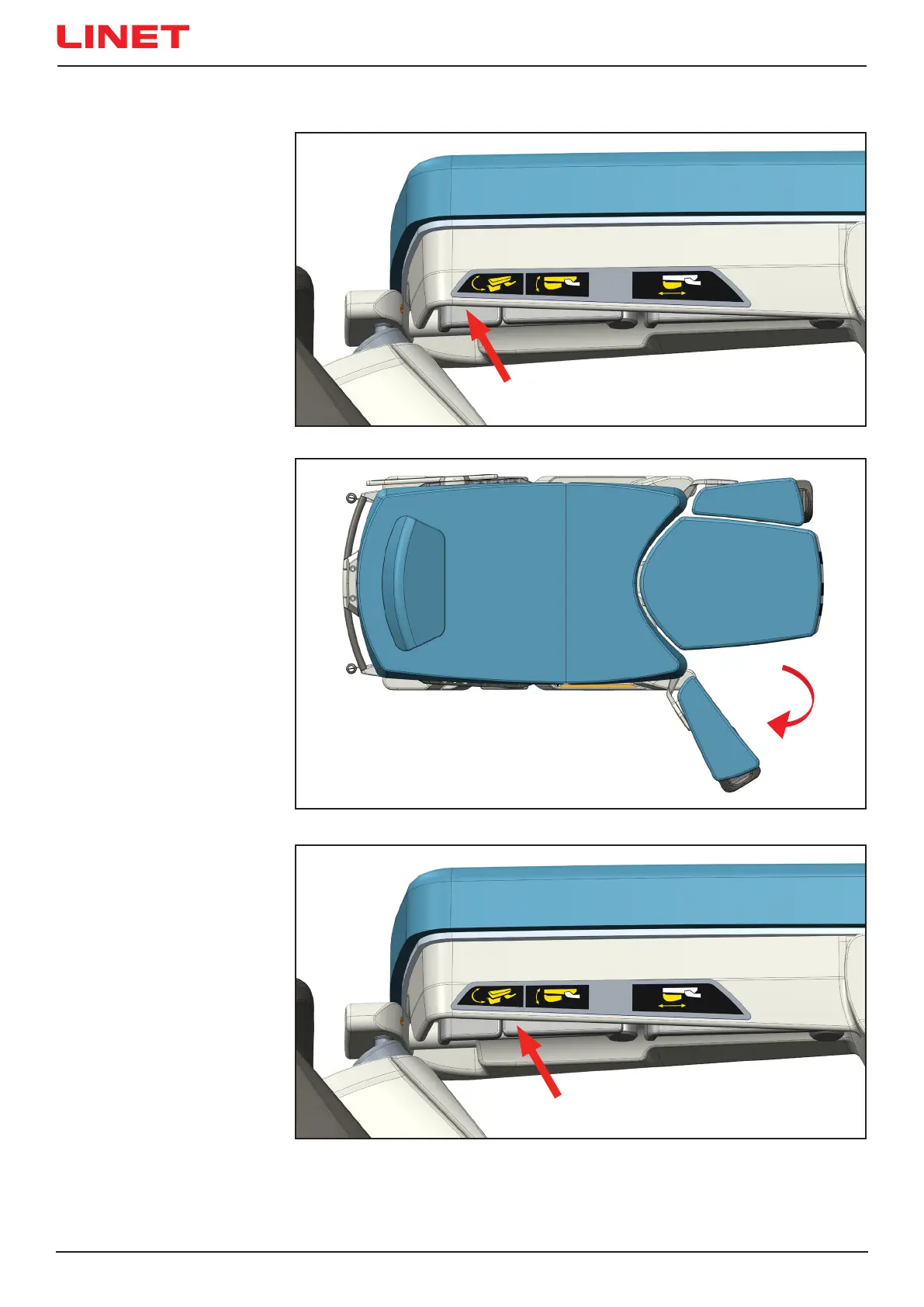

The leg rests can be
adjusted in the Foot rest
position.
For positioning:
►
Pull „T
urning the
leg rest sideways“
control lever
►
and with same hand
pull the leg rest in
the desired position
►
Then pull the
„T
ilting of the leg
rest“control lever
53
55
Table of Contents
Default Chapter
4
Table of Contents
4
Introduction
6
1 Symbols and Definitions
7
Symbols on the Package
7
Symbols on the Birthing Bed
8
Symbols on the Leatherette Upholstery
12
Symbols on the DUOCOAT Mattress Set
12
Symbols on the Terry Cloth Sheet
13
Production Label with UDI
14
Acoustic Signalisation
15
Abbreviations
15
2 Un-Packing Manual
16
3 General Safety
23
Mechanical Safety
25
4 Overview of Basic Parts
26
Overview of Basic Versions
27
Overview of Colour Versions
27
Safety
27
5 Function
28
Interaction
28
General Instructions
28
Application Environment 5
28
6 Intended Use
29
User Population
29
Contraindications
29
Operator
29
7 Technical Specification
30
Identification of Applied Parts
30
Technical Parameters
31
Electrical Parameters
32
Technical Specifications of the DUOCOAT Mattress Set
33
Transport Instruction, Storage Instruction
33
Electromagnetic Compatibility
34
Manufacturer Instructions - Electromagnetic Emissions
34
Manufacturer Instructions - Electromagnetic Susceptibility
35
8 Setting the Product
37
Transport, Braking
38
Transport
40
9 Operating the Bed
42
Side Rails
42
Description of the Control Panel for the Woman in Childbirth
43
Adjustment of the Handle in Inactive Position
43
Adjustment of the Handle in Active Position
43
Side Control Panel
44
Manual Setting of the CPR
45
Electric Setting of Trendelenburg
46
Setting of the Foot Section
47
Folding/Unfolding
48
Lifting/Lowering
49
Tilting Up/Down
50
Adjusting the Leg Rests
51
Gynaecological Position
52
Foot Rest Position
54
Maximum Bed Surface Position
56
Turning the Leg Rests Sideways
57
Leg Rest Tray Ajdustment
58
Leg Rest Tray Height Adjustment
59
Leg Straps
60
Backup Battery
61
Grab Handles, Detachable (R/L)
62
Grab Handles, Non-Detachable, Foldable (R/L)
63
Holder of Infusion Stand
63
Equipotential Coupling
64
Replaceable Leatherette Upholstery / Mattress Set DUOCOAT
64
Leatherette Upholstery
65
DUOCOAT Mattress Set
65
10 Accessories
66
Cable Hand Controller
66
Supporting Bar
67
Undercarriage Light
67
Infusion Stand, Stainless Steel, Telescopic
68
Eurolath Along the Seat Section
68
Rear Bed-Head
68
Doctor's Chair (Ergonomic)
69
Doctor's Chair
69
Front Bumper on Foot Section
69
Upper Mattress (for 100 MM Cushioning)
70
Upper Mattress (for 130 MM Cushioning)
70
Tray on the Swinging Holder
70
Nurse Call
71
Front Bumper Fitted on the Leg Rest (R/L)
72
Head Rest
72
Bowl
72
Instrument Tray
73
Protractor of the Seat Part, Protractor of the Back Part
73
Bracket for Oxygen Bottles
73
Patient Card
75
Baby Plate
75
USB Cell-Phone Recharger
78
11 Cleaning and Disinfection
79
Cleaning the Birthing Bed
81
Recommended Disinfection (Disinfectants for Wiping)
85
Cleaning the Leatherette Upholstery
86
Recommended Disinfection of Leatherette Upholstery
86
Cleaning the DUOCOAT Mattress Set
86
Recommended Manual Cleaning and Disinfection of the Top Cover
88
Recommended Cleaning of the Top Cover in an Industrial Laundry
89
Recommended Chemical Concentrations for Disinfection the Top Cover
94
Recommended Chemical Concentrations for Disinfection the Inner Covers
95
Covering the Birthing Bed for Use
96
How to Properly Coat Bed with Hospital Bedding
96
How to Properly Coat Bed with Disposable Bed Sheets
97
How to Properly Coat Bed with Terrycloth
98
12 Maintenance
99
List of Error, Malfunction and Generated Messages
99
Service and Repairs
100
13 Environmental Protection and Liquidation of the Product
101
14 List of Available Equipment
102
