3 -36

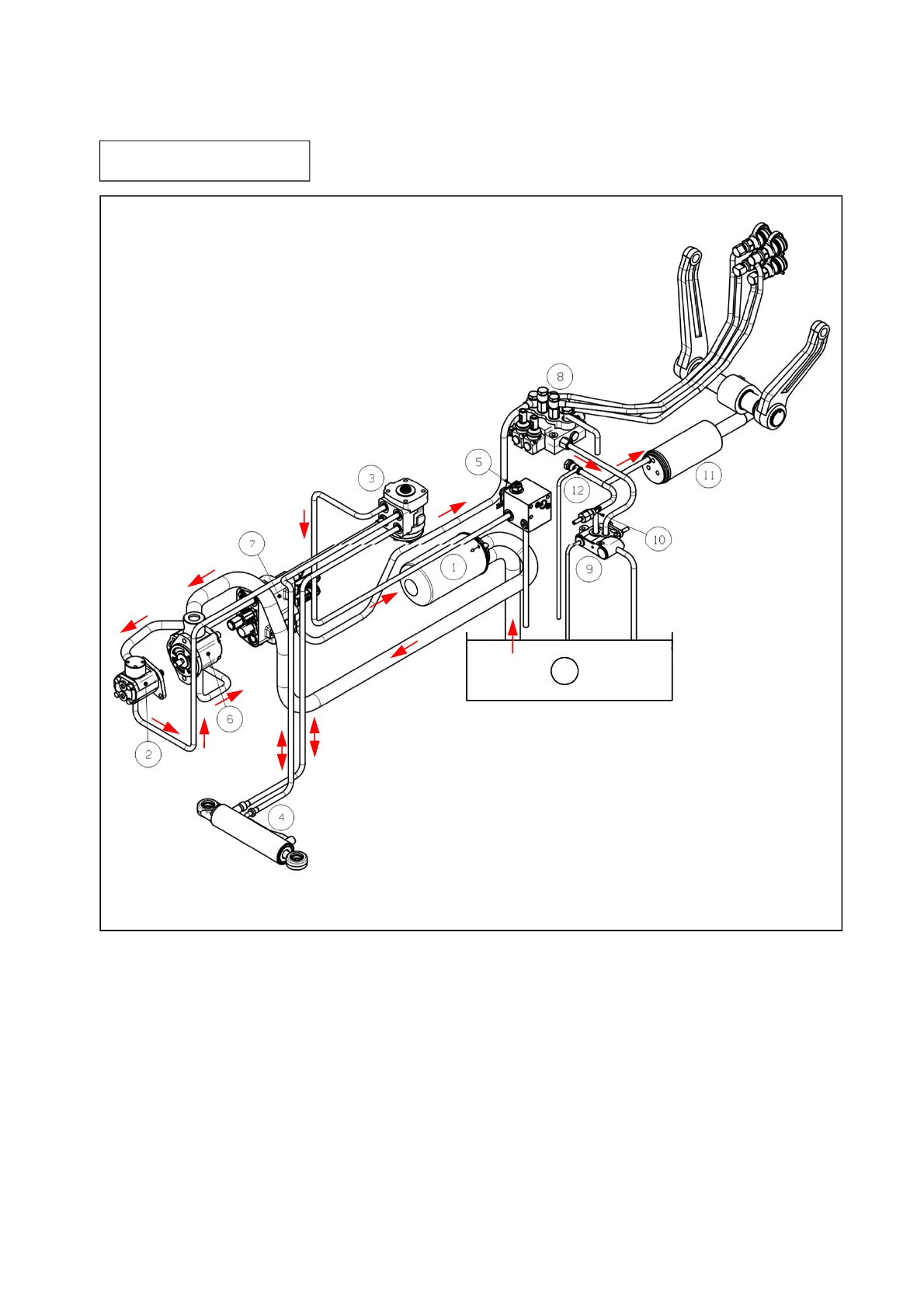

(6) Hydraulic System Diagram
Mechanical type
13
1. Hydraulic oil filter
2. Steering pump
3. Steering unit
4. Steering cylinder
5. Independent PTO valve
6. Hydraulic lift pump
7. Front outlet valve or
Front loader valve (optional)
8. Remote control valve (optional)
9. Hydraulic lift control valve
10. Down speed control valve
11. Hydraulic lift cylinder
12. Safety valve
13. Oil tank (Transmission)
