(4) Turn signal lights, Lights and Horn
Check the operational status of the headlights, turn signal lights, horn and other illumination lights.

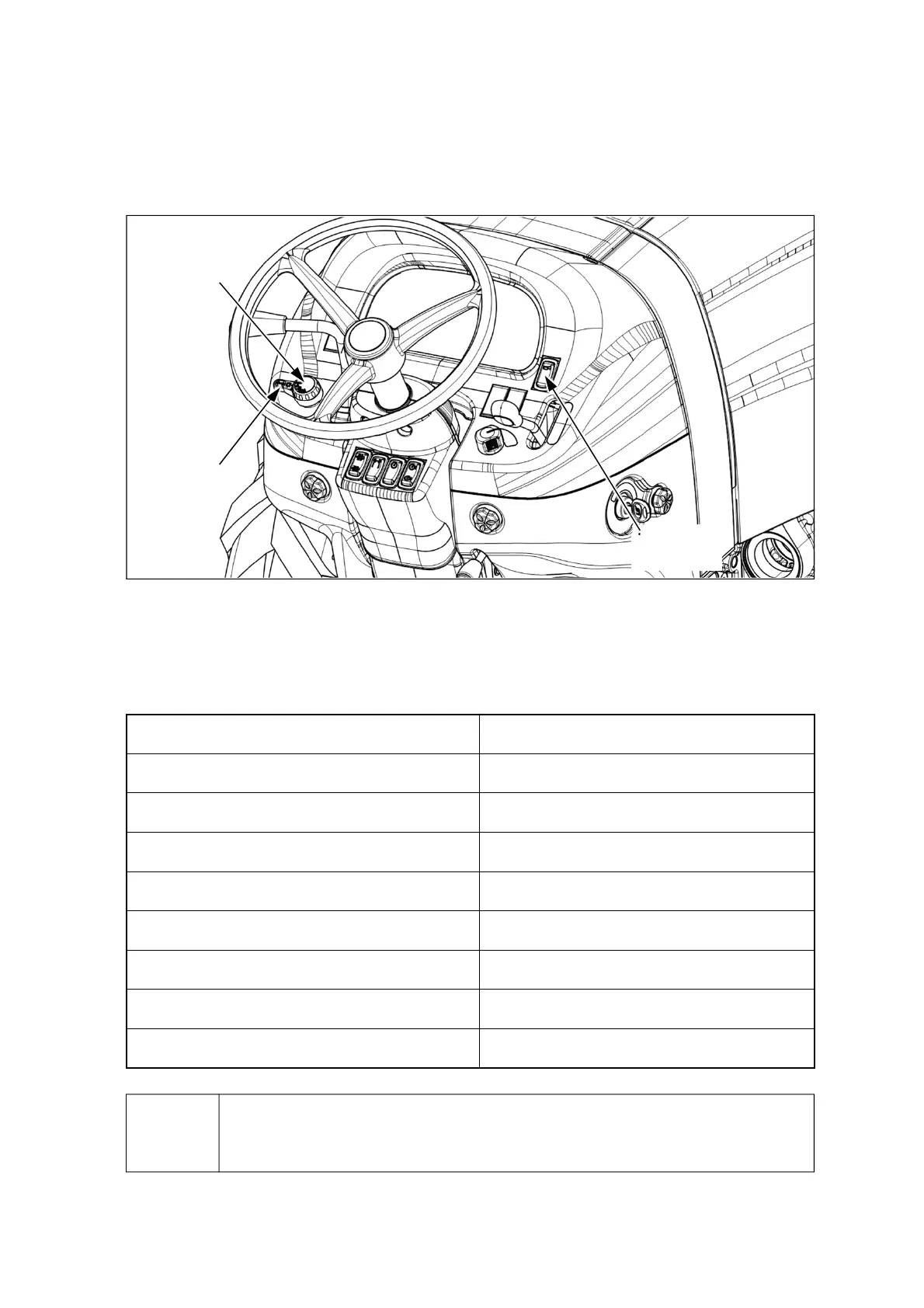

Horn switch
(if fitted)
Turn signal
light switch
Light switch
▶
Use the bulb of rated capacity. If using an improper bulb arbitrary, it may cause a
failure of the electric system.
Notice
Illumination lights Light bulb specification
Head lights (Low beam / High beam) 12V 55W / 60W
Turn signal lights (front) 12V 21W
Side lights(front) 12V 10W
Turn signal lights (rear) 12V 10W
Brake lights / Tail lights(rear) 12V 21W / 5W
Work lights 12V 27W (Grille) / 27W (Roll-bar)
Indoor light N/A
Instrument panel lights and indicators LED
If any of these lights are not turned on when operating the switch, check the problem as followings.
1. Check the related fuse in the fuse box. See chapter 5-14-(2), “Fuse & Main fuse” in this manual.
2. Check the light bulb. If damaged, replace it with a rated new one. See below table and refer to the
chapter 5-14-(5), 5-14-(6) in this manual.
