(2) Cleaning Emission related

parts



The following items are major engine emission

related parts. These items are checked and

cleaned periodically. But it is performed by

special engine service experts. Contact your

authorized local dealer for check.

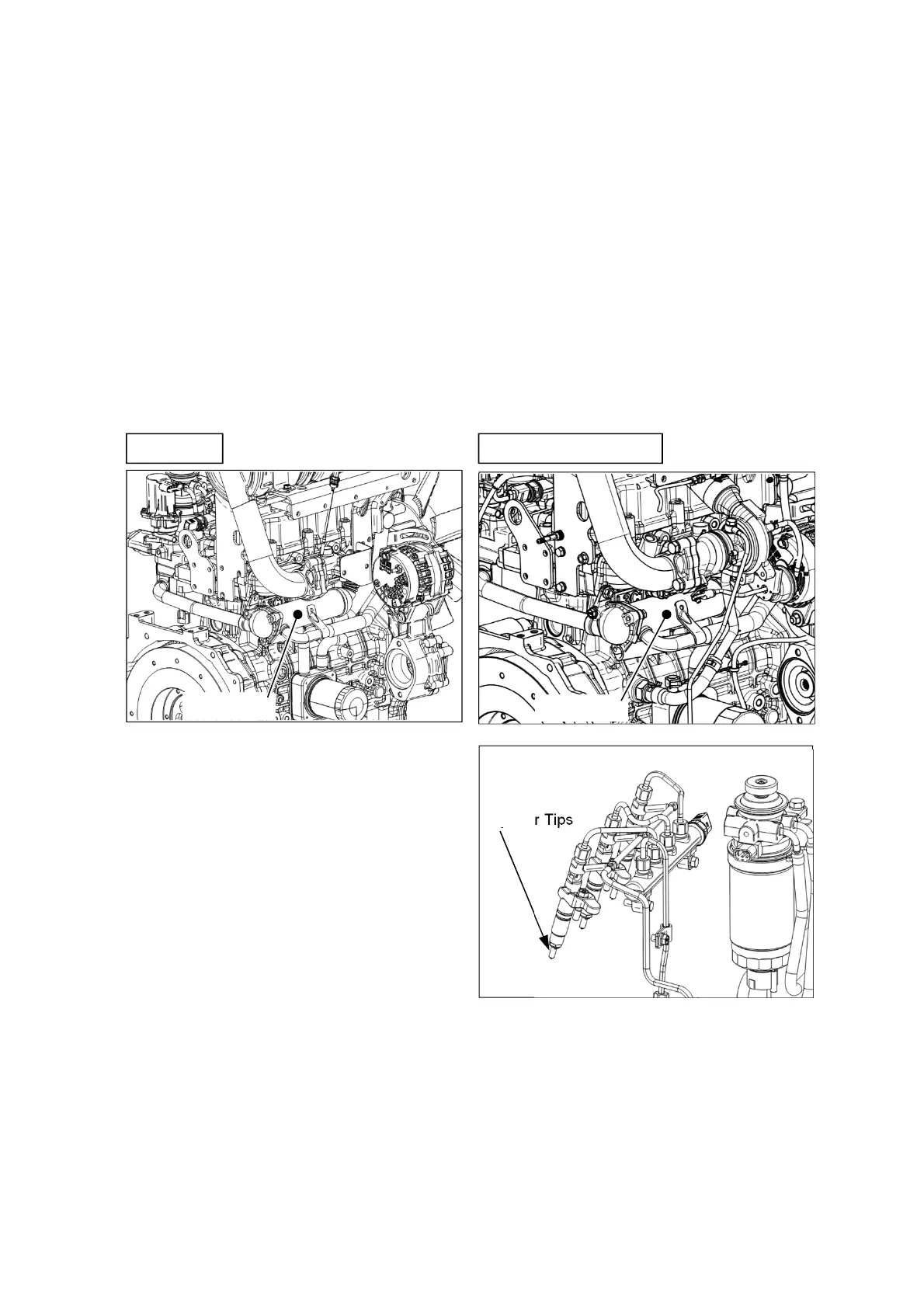

-. EGR Cooler

-. Injector Tips

NA Engine Turbocharger Engine

EGR Cooler

Injector Tips

Table of Contents9
General Notices for Safety15
Note to the Owner - General Information15
Before Using the Tractor17
Manual Scope and Required Training Level19
Metric and Imperial Units Abbreviations21
Product Identification Number (PIN)23
Operator's Manual Storage25
Tractor Orientation26
Safety Precautions (Read this for Safety before Using)27
Notices before Using the Tractor27
Notices When Starting Engine31
Notices While Operating/Using the Tractor32
Notices When Connecting Implement34
Notices When Towing the Tractor35
Notices When Transporting the Tractor35
Notices When Servicing the Tractor after Work36
Notices When Handling Diesel Fuel37
Notices When Leaving the Tractor38
Notices Relating to Toxic Substances38
Tractor Stability39
Ecology and the Environment42
Symbols44
Safety Decals45
Instructional Decals53
Long-Term Storage57
Preparation for Storage57
Check & Maintenance During Storage58
Preparation for Reuse59
Instruction for Safe Operation61
The Name of each Part61
Boarding and Exiting the Tractor62
Boarding the Tractor62
Driver's Seat63
Seat Adjustment64
Seat Belt64
Tilting Steering Wheel65
Exiting the Tractor65
Safety Device66
Hood (Bonnet)66
Fender66
PTO Safety Cover and Protection Cap66
Roll-Over Protective Structure (ROPS) (Optional)67
Instruments and Controls71
Instrument Panel and Front Controls71
Instrument Panel73
Key Switch79
Turn Signal Light Switch80
Light Switch81
Hazard Warning Light Switch82
Horn Switch (if Fitted)83
Grille Work Light Switch (if Fitted)83
DPF Switch84
PTO Switch (Independent PTO)89
ESC Main Switch90
ESC Speed Up/Down Switch90
Throttle Pedal (Mechanical)92
Clutch Pedal (Mechanical)92
Brake Pedals93
Parking Brake Lever94
HST Forward/Reverse Pedal (HST Type)95
Cruise Control Lever (HST Type)95
Left / Right-Hand Controls96
Main Gear Shift Lever97
Differential Lock Pedal97
Work Light Switch (if Fitted)98
Range Gear Shift Lever98
Four Wheel Driver Lever (4WD)99
Middle PTO Lever (if Fitted)99
Hydraulic System100
Safety Precautions100
Steering System101
Hydraulic Lift Control102
Remote Control Lever and Quick Coupler (if Fitted)104
Joystick Lever (if Fitted)105
Hydraulic System Diagram106
Operation and Work109
How to Handle New Tractor109
Check Points109
Notices in Handling New Tractor (Engine Brake-In Procedure)109
Engine Start and Stop110
Engine Start110
Start in Cold Weather112
Engine Stop113
How to Drive and Stop114
Transmission Warm-Up in Cold Weather114
How to Drive115
Changing Speed117
Emergency Stop118
Stopping Tractor119
Parking120
Handling Turbocharger (if Fitted)120
Transport on Public Roads (1) Safety Rules When Driving Tractor on the Roads121
Light Operation122
7-Pole Connector (Optional)123
Notices When Towing the Tractor124
Notices When Transporting the Tractor126
Field Operations127
Rear 3-Point Linkage127
Power Take-Off (PTO) Operation131
Hitch and Drawbar (Optional)134
Technically Maximum Permissible Mass135
Tires and Load Capacity136
Adjusting Wheel Tracks and Tire Replacement137
Using Front-End Loader (if Fitted)140
Adjusting Steering Angle143
Recommended Maximum Specification of Implements144
Ballasting Weights (Optional)145
Driving Speed148
Lubrication and Maintenance149
General Information149
Tightening Torque for Normal Assembly150
Standard Torque Data for Hydraulics152
General Specification - Diesel Fuel155
Biodiesel Fuel156
Refueling the Tractor158
Change Engine Coolant to Organic Acid Technology (OAT) Coolant159
Access for Maintenance160
Maintenance Chart161
Lubricants and Capacity165
First 50 Hour Check166
When the Warning Indicator Lights167
Drain Water from Fuel Filter167
Engine Oil Pressure Indicator168
Battery Charging Indicator168
Check before Starting (Daily Check)169
Engine Oil169
Fuel Tank170
Instrument Panel & Indicators170
Turn Signal Lights, Lights and Horn171
Engine Coolant172
Air Cleaner (Dry Type)172
Cleaning of Radiator and Radiator Screen173
Tire Air Pressure & Damage173
Tightening State of Bolts and Nuts of each Part174
Adjustment of Clutch Pedal Play (Mechanical Type)175
Adjustment of Brake Pedal Play176
Adjusting HST Control Linkage (HST Type)177
Every 50 Hour Check178
Lubricating Grease Nipple178
Cleaning of Radiator and Radiator Screen178
Checking Transmission Oil179
Checking Front Axle Oil179
Battery Check179
Air Cleaner (Dry Type)179
Hydraulic Hoses and Leakage180
Every 100 Hour Check181
Checking and Adding Engine Oil181
Every 300 Hour Check182
Replacing Engine Oil and Filter182
Replacing Hydraulic Oil Filter183
Tension Adjustment of Engine Belt184
Toe-In184
Cleaning Fuel Tank185
Every 500 Hour Check186
Changing Front Axle Oil186
Changing Transmission Oil186
Replacing Fuel Filter Cartridge187
Replacing Air Cleaner Element (Dry Type)187
Every 1000 Hour or 1-Year Check188
Adjusting Engine Valve Clearance188
Checking Nozzle Injection Pressure188
Every 1500 Hour or 2-Year Check189
Replacing Engine Coolant189
Cleaning Emission Related Parts192
Every 3000 Hour Check193
Cleaning Emission Related Parts193
General Maintenance (When Required)194
Air-Bleeding from Fuel System194
Fuse & Main Fuse196
Battery Handling and Notices198
Alternator and Drive Belt - Check202
Tail/Brake Light Bulb and Turn Signal Light Bulb- Replace203
Headlight Bulb - Replace205
Touch-Up Paint Color206
Troubleshooting207
Dimension and Specification213
