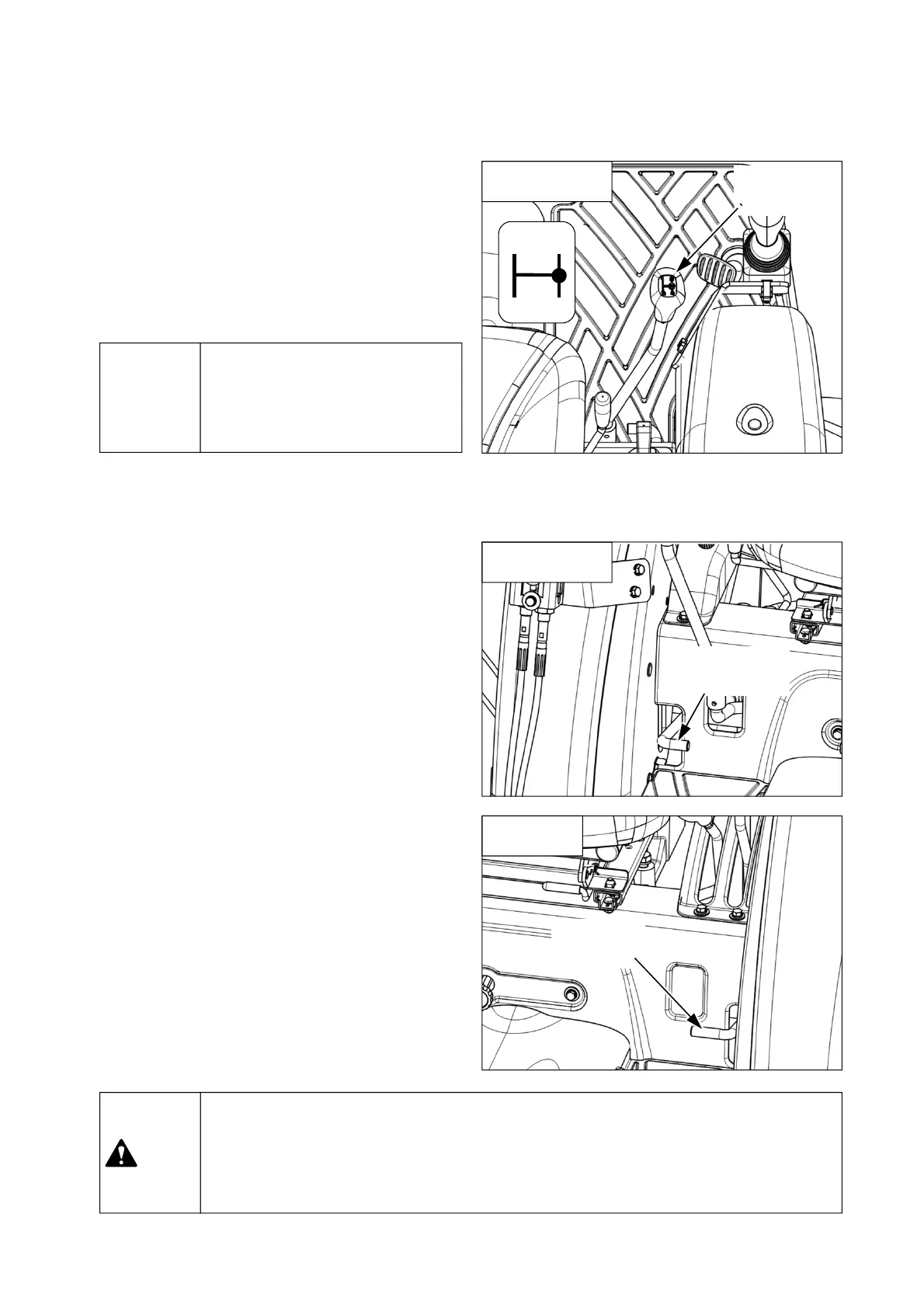

(1) Main gear shift lever
(Mechanical)
 Four speed gear shift and neutral position is
available.
 The main gear shift lever can be operated while
driving after depressing clutch pedal. It is not
necessary to stop the tractor completely due to
the synchromesh gears.
Notice
▶Operate the main gear shift
lever by correct “H” pattern. If
operated diagonally, it may
cause a failure.
Main gear
shift lever
Differential
lock pedal
(2) Differential lock pedal
 When the rear wheel is slipping and the tractor
can not move forward, stop the tractor and press
down the differential lock pedal.
 The differential lock is effective for working on
the slippery ground.
 If engaged, both rear wheels will rotate at equal
speed. So, It can disturb the steering operation.
 Take your foot off the pedal to release the
differential lock. If the differential force is
reduced to some extend, the lock is released
automatically.
 If the differential lock does not disengaged (i.e.
the turning radius is larger than normal condition
and the turning is not smooth), depress the
clutch pedal and/or press the left/right one-side
brake pedal slightly for a second each other.
 This pedal is installed on the step floor, but the
location is;
- on the right-hand side for mechanical model
- on the left-hand side for HST model.
Mechanical
Differential
lock pedal
HST
▶Do not turn the tractor with pressing the differential lock pedal.
▶Do not use this differential lock pedal while driving on public road.
▶Do not engage the differential lock when one wheel is spinning.
Warning
Mechanical
4
2
31
