5 -28

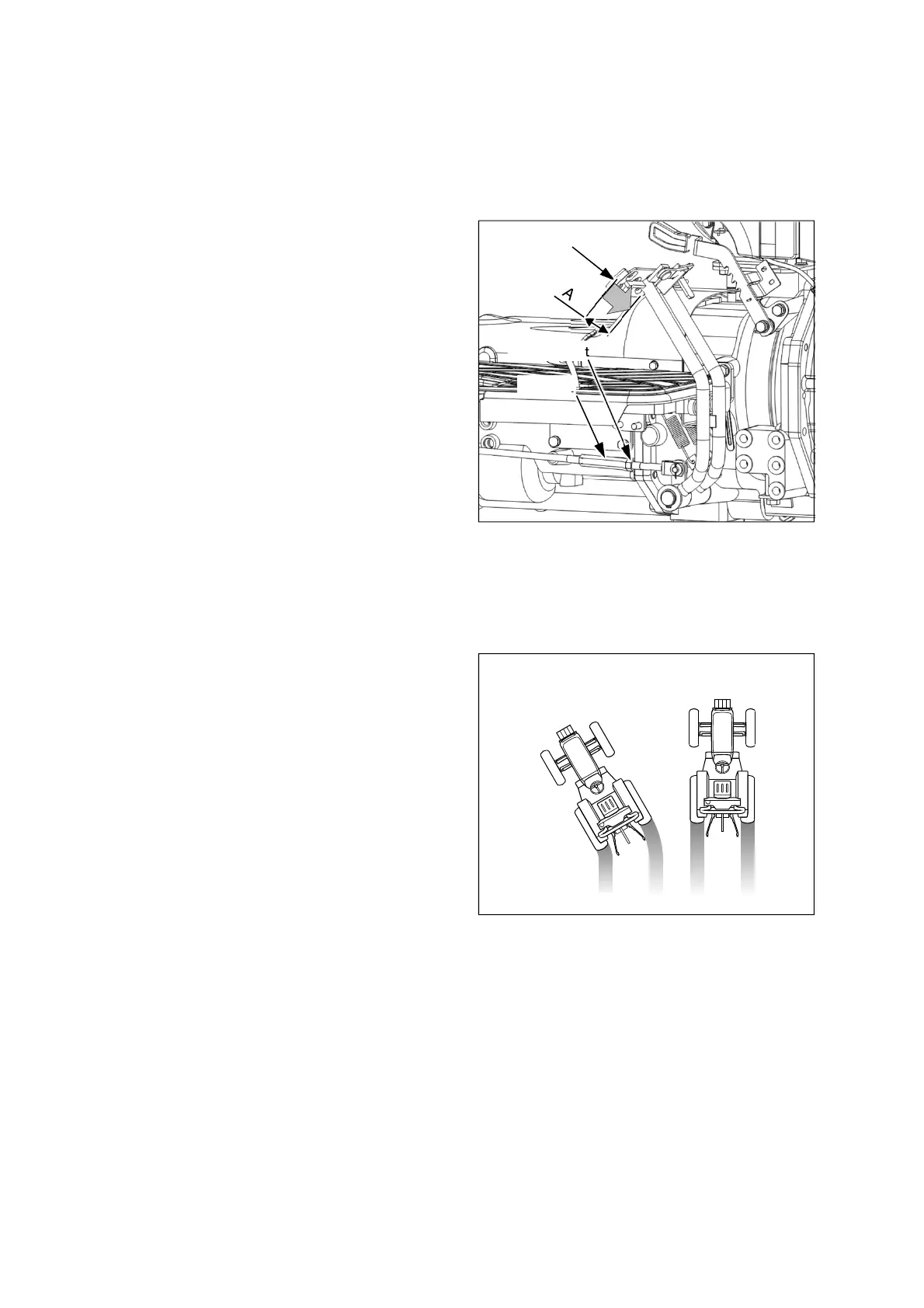

Brake pedals
Adjuster
Locking nut
Left / Right brake distance
is different.
Normal
Checking the brake distance
1. Connect the left and right brake pedals with the
brake pedal latch.
2. Check the skid marks of the tires or stability of
the tractor while driving at a suitable speed.
3. If the braking distances of the left and right
wheels are different each other as shown in the
right figure, adjust the brake rod again.
4. If the vehicle is turned to the left-hand side when
checking the braking distance, loosen the left-
hand brake rod or tighten the right-hand brake
rod with checking the brake pedal play distance.
Check the distance of the brake pedal play (A).
Normal distance: 50~60mm. (2.0~2.4 in.)
If the pedal play distance is over the normal
distance, adjust it as below.
1. Loosen the locking nut(s) of the brake rod and
turn the adjuster to the left/right-hand direction.
2. If the brake rod is tightened, the pedal play will
be decreased, and if loosened, it will be
increased.
3. After adjusting the pedal play, tighten the
locking nut(s).
4. Check if the brake distances of the left and right
brakes are same as below.
(11) Adjustment of Brake pedal play
To Next Page
