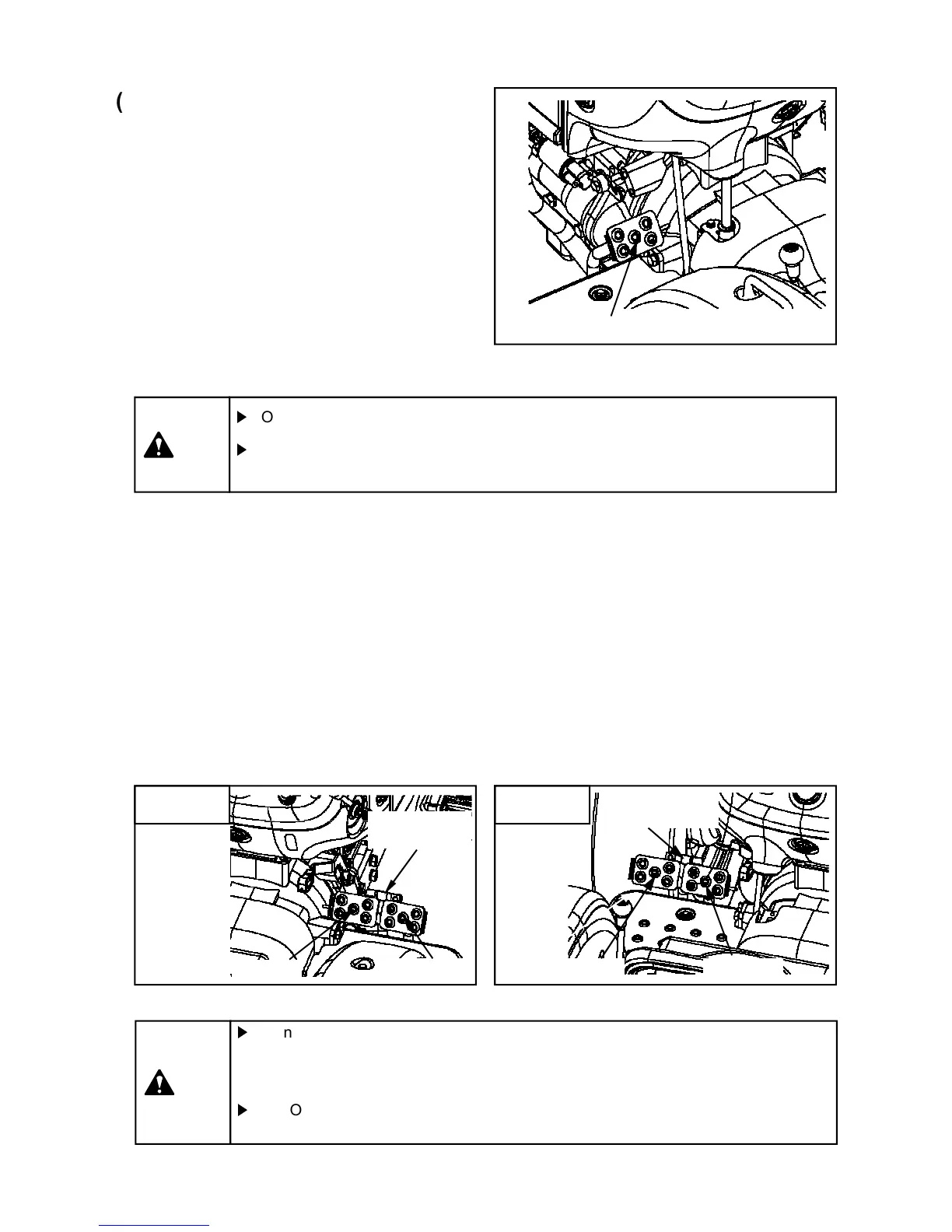

(4) Clutch pedal (Mechanical type)
This is used to engage or disengage the main
transmission clutch for starting engine and
shifting transmission gear.
Depress the clutch pedal quickly and fully, and
release it slowly.
Clutch pedal
▶
As the start safety switch is installed for the operator’s safety, depress the clutch
pedal fully to start engine.
Caution
(5) Brake pedal
When stopping, press both brake pedals together with depressing the clutch pedal.
If disengaging the brake pedal connection link, you can press the left or right brake pedals one side
at a time, the left and right brake is applied on the rear wheel of the pressed pedal.
When working, If you press one brake pedal to the left or right, you can make shorter turning radius.
DO NOT press the one side brake pedal while the differential lock is engaged. It may cause damage
or failure of the axle.
Regarding the position of the brake pedals, HST type is on left side of plate form and mechanical is
on the right side of plate form. Each pedals have same function on both different sides.
HST
3
3 3
3 - 10
Caution
▶
When driving on the road, engage the left/right brake pedal by the brake pedal
connection link. If pressing one side brake pedal when driving, the tractor may
turnover.
▶
DO NOT ride your foot on the brake pedals while driving. If so, it may cause failure
of brakes.
