LS tractor R3039H User Manual

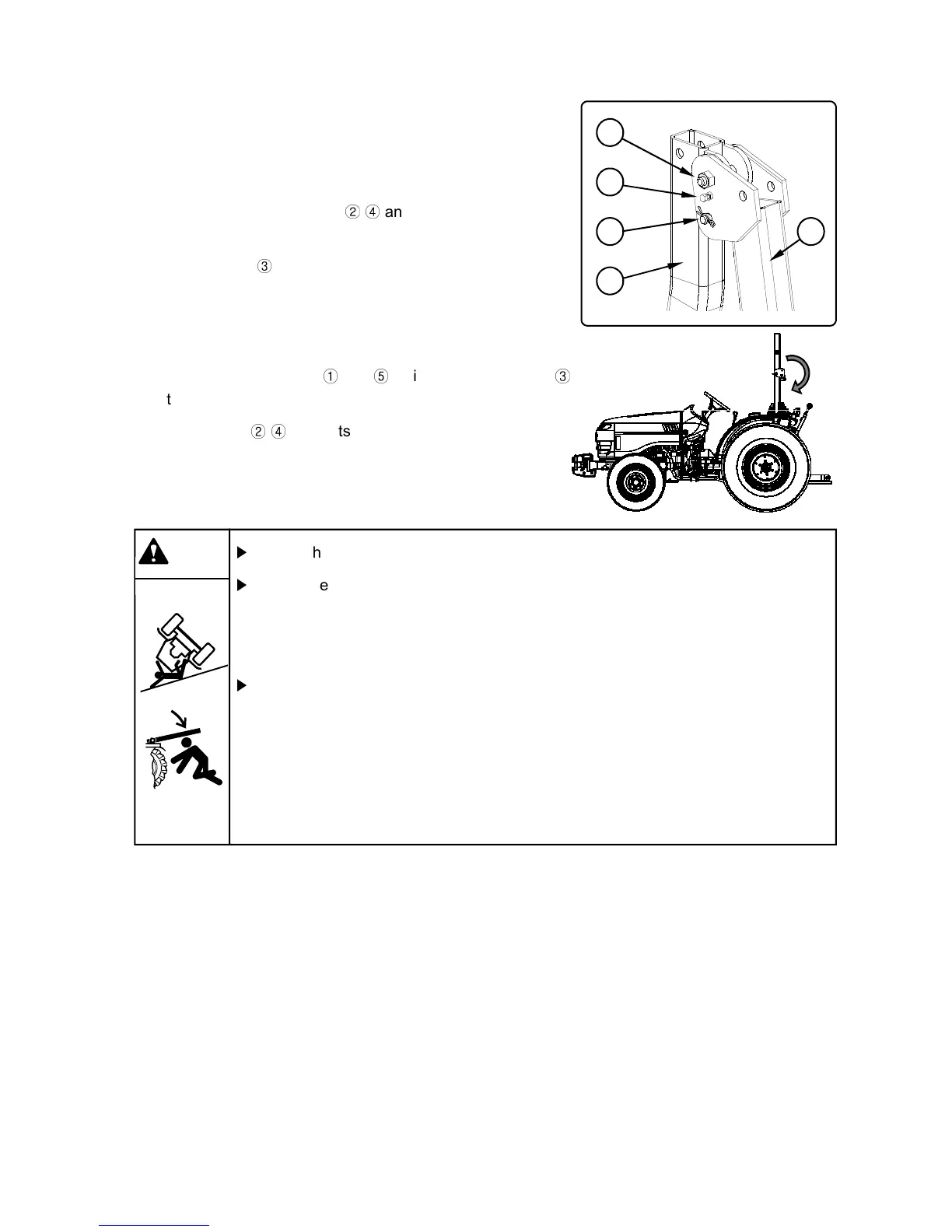

 How to fold the Safety frame.
1. Loosen the safety frame bolts ② ④ and nuts (both sides)
loosely. (Do not unfasten it completely)
2. Remove the pins ③ on the both side and fold the safety frame
backward.
- Be careful of the possibility that your head, hand and shoulder
might be hurt by folding bar due to weight of the safety frame.
3. Set the holes of the frame ① and ⑤ in line, and put the pins ③
into the hole to fix the safety frame and apply the snap pin.
2
4
3
5
1
(3) Foldable Safety frame (Roll-bar type)
(optional)
4. Fasten the bolts ② ④ and nuts (both sides) tightly.
 When standing the safety frame up, follow the same
procedure.
Warning
▶ Do not change or disassemble the safety frame arbitrarily for safety.
▶ Unless the safety frame is applied correctly, it may cause a serious accident on
tractor when being overturned.
- Be sure to stand the safety frame up completely and assemble the bolts, pins and
nuts in correctly.
▶ In case of folding the safety frame.
- Do cooperate with more than 2 people when folding or standing up the safety
frame as it’s heavy.
- Be careful not to be injured by sudden folding, which might occur when folding or
standing up the safety frame, due to its weight.
- Do not wear seatbelt when the safety frame is folded down.
-
Do stand the safety frame up again as soon as the work is finished.
3
3 3
3 - 22
-
Do stand the safety frame up again as soon as the work is finished.
