LS tractor R3039H User Manual

Adjusting plate
Bolt
Generator
pulley
Cooling water
Pump pulley

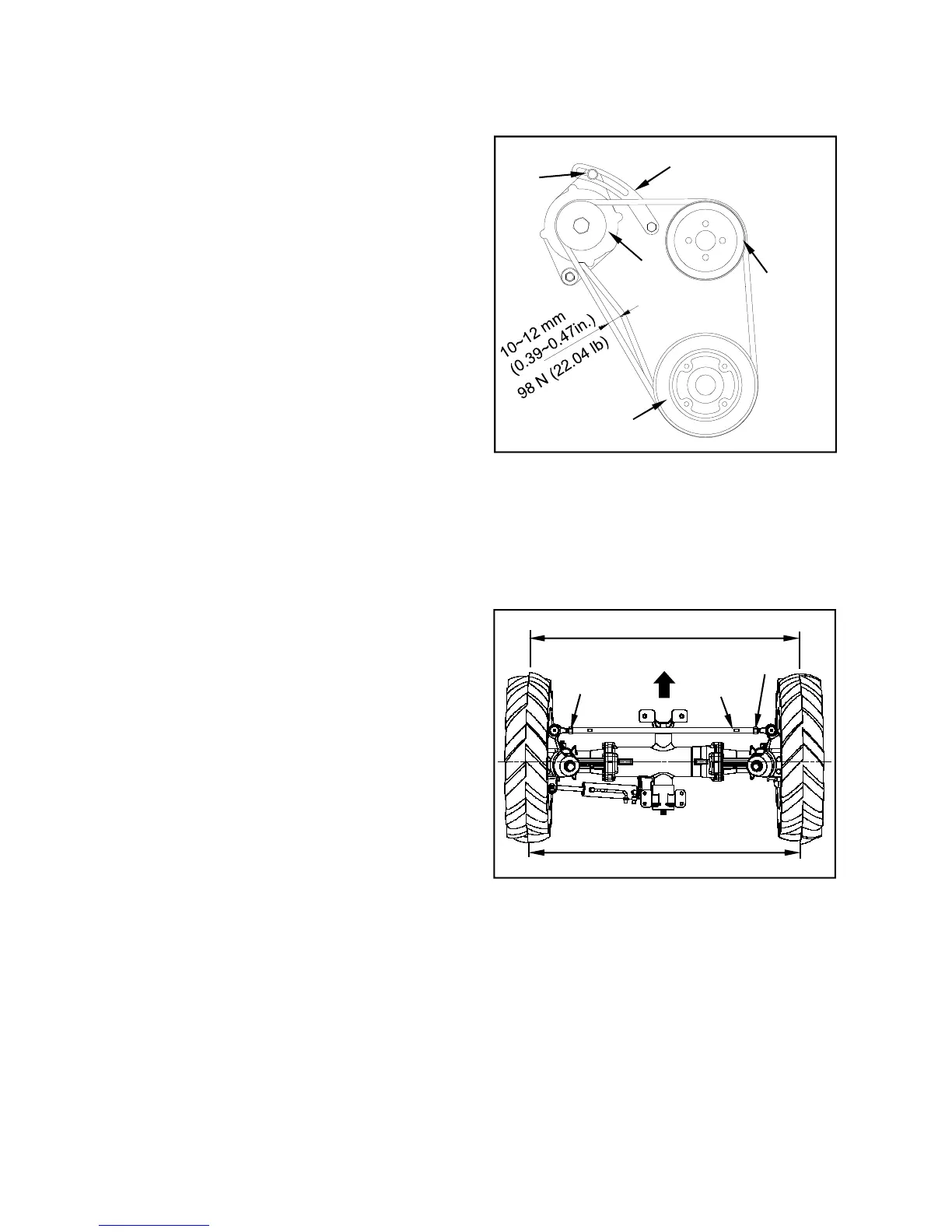

(5) Tension adjustment of Fan belt
 Check the tension of fan belt. If it’s not normal,
loosen the bolt and adjust the tension.
- Belt tension : crank shaft pulley ~ water pump
pulley
- Normal : approx. 10~12mm (0.39~0.47in.)
(if pressed by 98 N (22.04 lb))
 When adjusting the belt tension,
1. loosen two locking bolts of alternator and bolt of
adjusting plate slightly
2. Tighten or loose the tension bolt to apply the
standard tension to the belt.
Crank axle pulley
3. Tighten the locking bolts of alternator and
adjusting plate.
(6) Toe-in
 Check and adjust Toe-in of the front wheel as
follow.
Normal value ; B – A = 0~5 mm (0~0.2 in.)
 Unscrew the lock nuts of the tie rod.
 If you turn the tie rod clockwise at right hand side,
it shall be increased.

After checking that Toe
-
in is correct, tighten the
A
Lock nut
Lock nut
FRONT
Tie rod
5
5 5
5 - 21

After checking that Toe
-
in is correct, tighten the
lock nuts.
B
