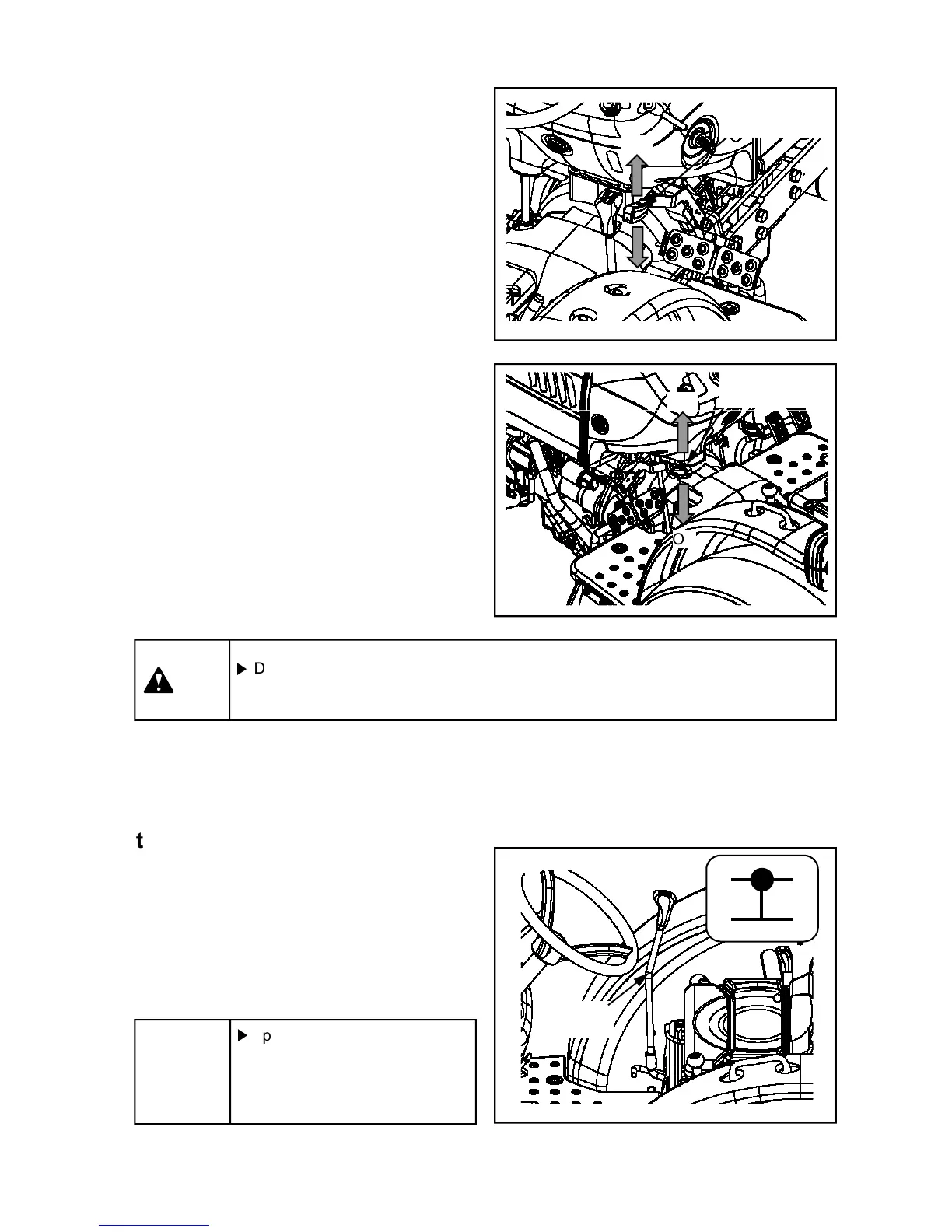

(6) Parking brake lever
 Connect brake pedals each other with brake
connection plate.
 Push down the parking brake lever while
pressing the brake pedals and check that
serrated part is engaged to left brake pedal.
 Release the brake pedals slowly to check
slippage of the tractor.
 To release the parking brake, just press the
brake pedals little harder and check if parking
brake lever goes to its original position by spring.
Parking brake
lever
OFF
ON
Parking brake
lever
OFF
(7) Main gear shift lever (Mechanical
Caution
▶ DO NOT drive the tractor while parking brake is engaged. It may cause damage of
brakes or parking brake device.
OFF
ON
3
3 3
3 - 11
(7) Main gear shift lever (Mechanical
type)
 Four speed ratios are available.
 Main gear shift lever must be operated after the
tractor has stopped completely. BE CAREFUL.
Notice
▶ Operate main gear shift lever
by H-pattern. If operated
diagonally, it may cause a
failure.
Main gear
shift lever
3
3 3
3
4
4 4
4
1
1 1
1
2
2 2
2
N
