(9) 7-Pole connector (optional)
 The one of the standard 7-pole trailer connectors is provided and is mounted at the rear of the tractor.

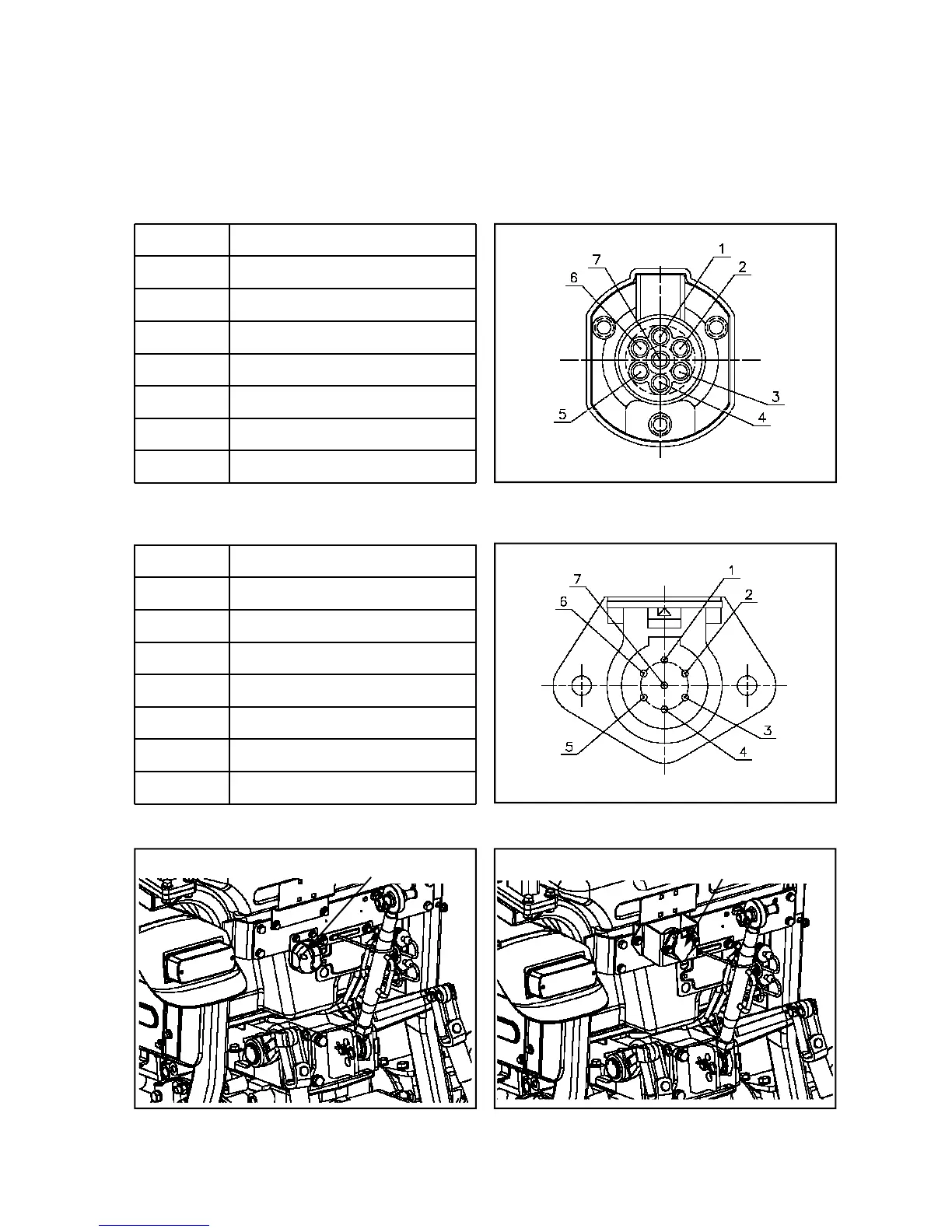

The connections of the 7-pole connector (viewed from the rear of the tractor) are as follows;
 EC Version
Pin No. Function
1 Left turn signal light
2 NA
3 Ground (Earth)
4 Right turn signal light
5 Side light
6 Brake light
7 Side light
 ASAE Version
Pin No. Function
1 Ground (Earth)
2 Working light
3 Left turn signal light
4 Brake light
5 Right turn signal light
6 License number plate light
7 Auxiliary
4
4 4
4 - 17
7-Pole Connector (EC) 7-Pole Connector (ASAE)
