LS tractor R3039H User Manual

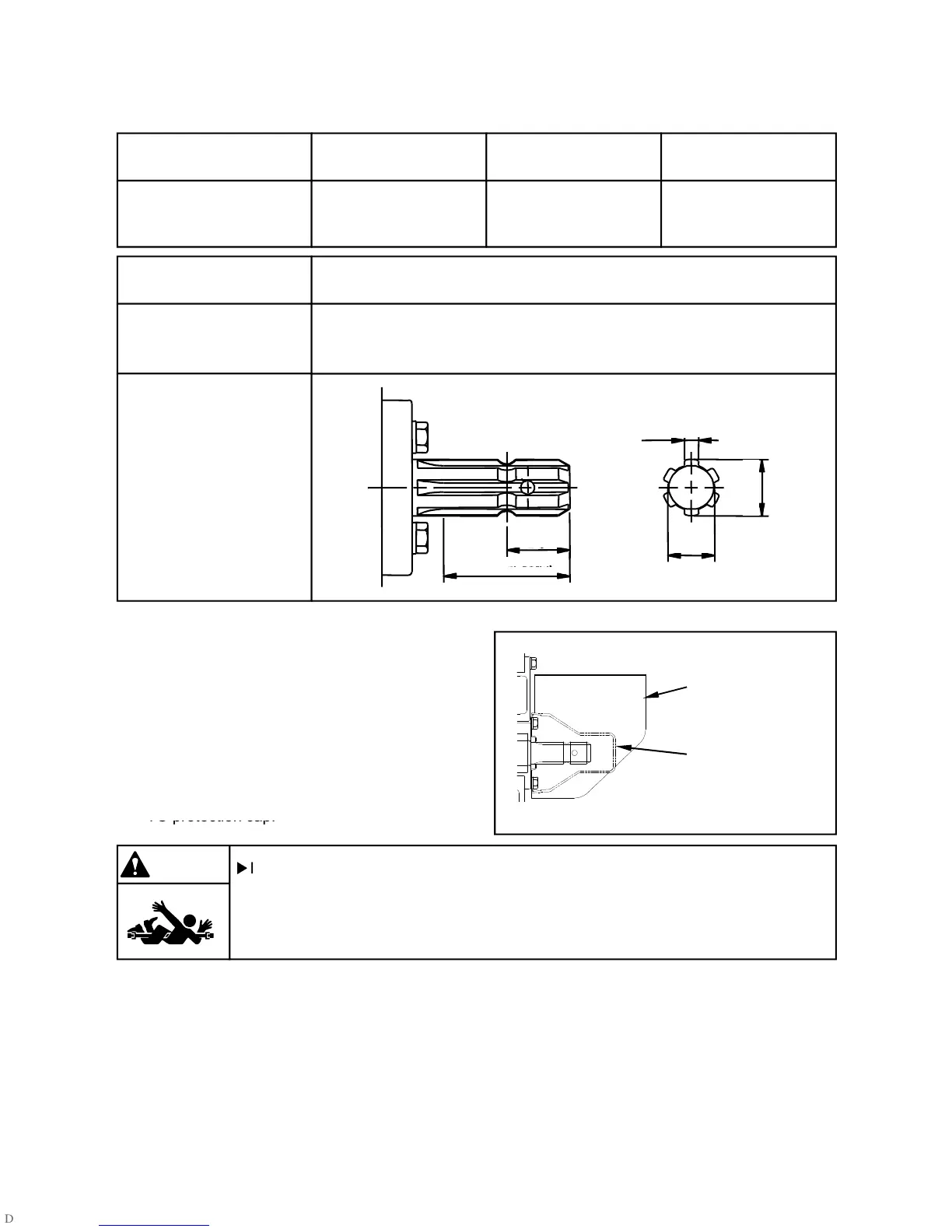

(6) Reference of PTO shaft
PTO gear
PTO / Engine speed
1 2 3
540 / 2509 rpm N/A N/A
Revolution direction
Ground clearance
Clockwise (direction from which looking at PTO shaft)
568mm (22.4 in) at Rear tire radius = 560mm (22.0 in)
Shaft dimension
(Unit : inch)
(3.0 in)
(1.5 in)
(0.34 in)
(1.1 in)
(1 3/8 in)
PTO shaft
protection cap
PTO safety cover
(7) PTO safety cover and protection
cap
 Attach PTO safety cover always.
 If the safety cover is damaged or removed, replace
it with a new one.
 When PTO is not used, apply grease and insert the
PTO protection cap.
4
4 4
4 - 15
Warning ▶ If you contact the rotating shaft, it may cause a serious injury.
- DO NOT touch shaft which is rotating.
- DO NOT remove the safety cover.
- Avoid loose clothes that can easily be rolled up in the revolving shaft.
PTO protection cap.
