LS tractor R3039H User Manual

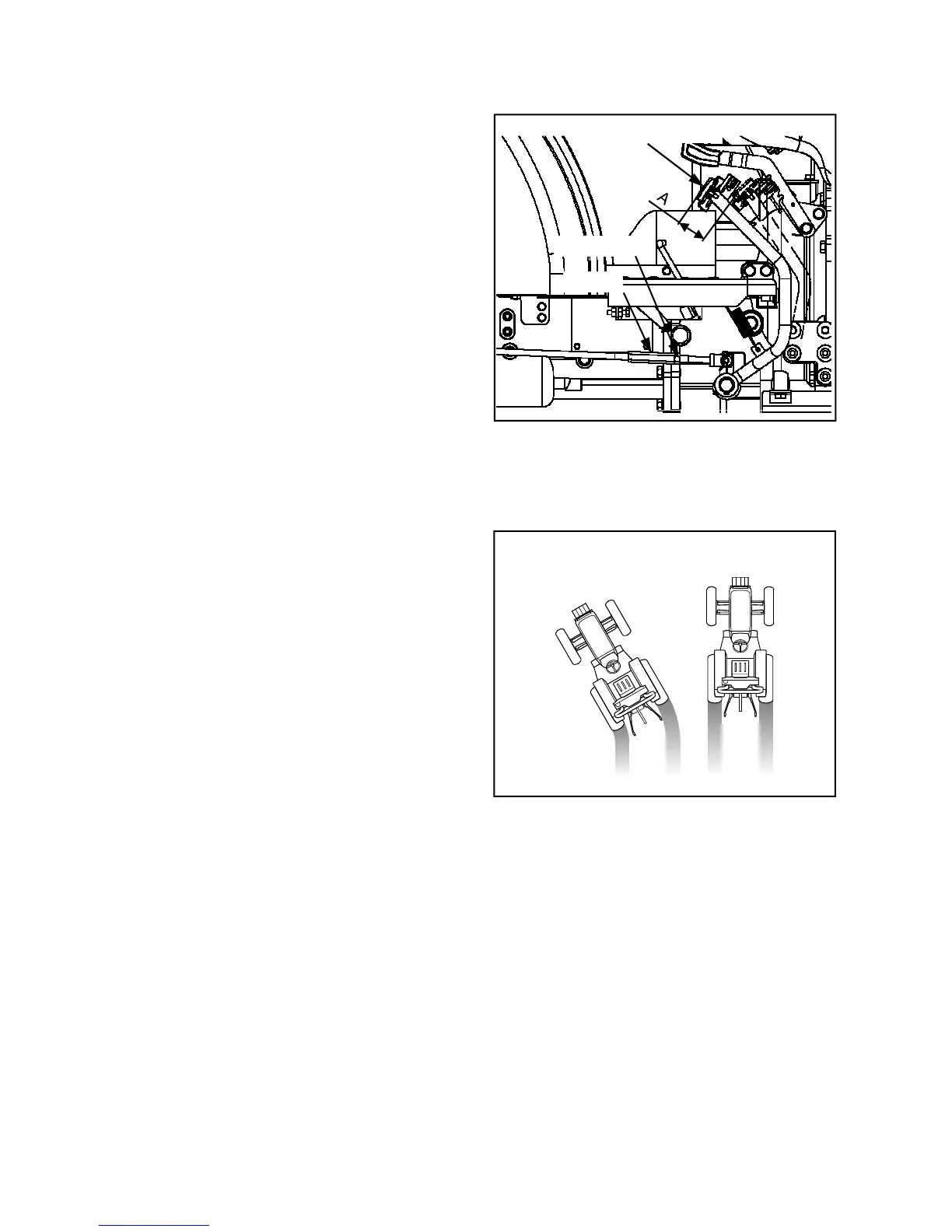

(12) Adjustment of Brake pedal
play
 Check the distance of brake pedal play (A).
 Normal distance : 50~60mm. (1.97~2.36 in.)
If the pedal play distance is over 60mm (2.36 in.),
adjust it as below.
1. Loosen the locking nut and turn brake rod to
adjust.
2. If brake rod is tightened, the pedal play shall be
reduced and if brake rod is loosened, it shall be
increased.
3. After adjusting the pedal play, tighten the locking
Brake
pedal
Adjuster
Locking nut
3. After adjusting the pedal play, tighten the locking
nut.
4. Check if the brake distance of the left and right
brake is same as below.
Left / Right brake distance
is different.
Normal
 Checking the brake distance
1. Connect left and right brake pedal using
connecting pin.
2. Check the skid mark of the tire or stability of the
tractor while driving at a suitable speed.
3. If the brake distance is different as shown in the
right figure, adjust the pedal play again.
5
5 5
5 - 15
