5 -22

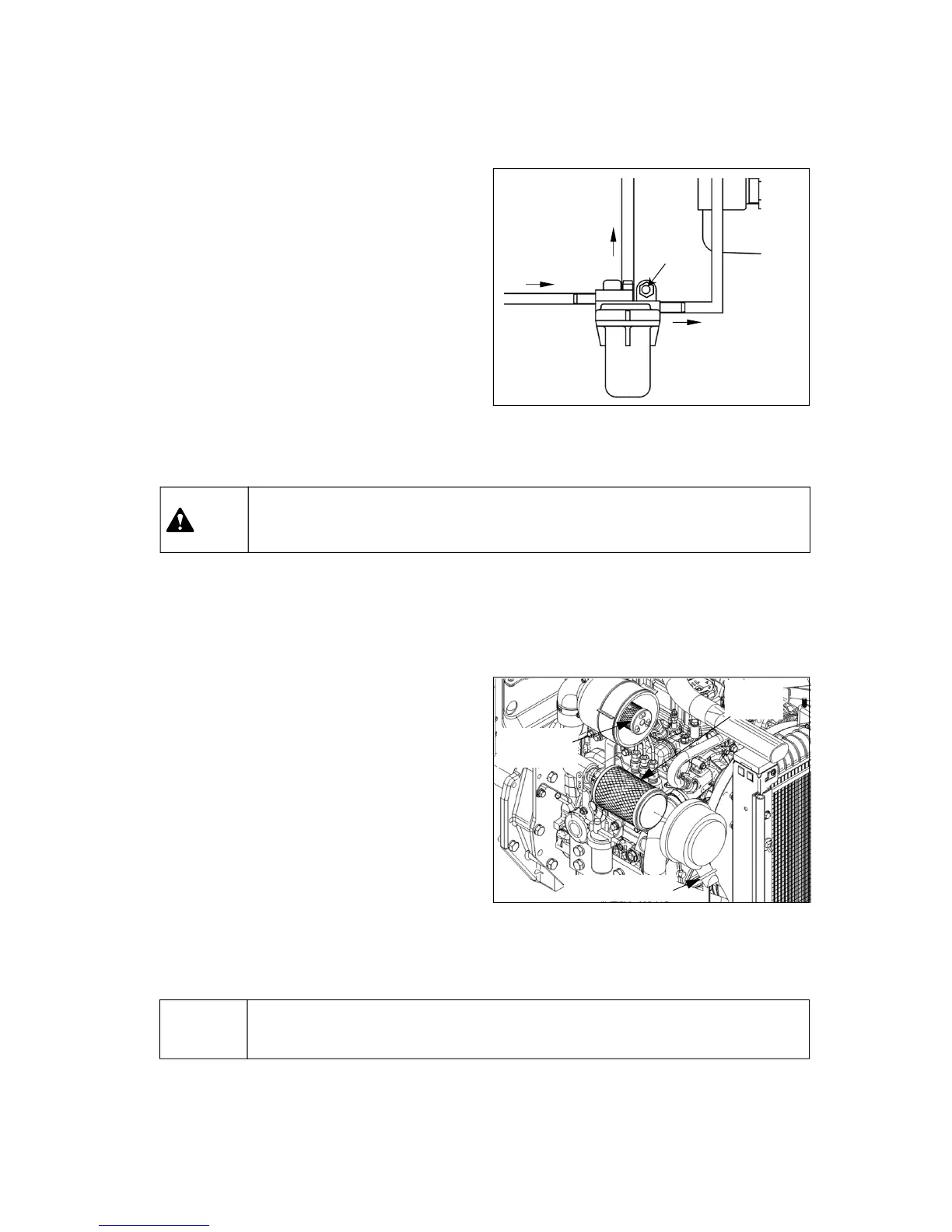

(4) Replacing Air cleaner element
(Dry type)
z
Remove the cover and pull the primary element
straight out, ensuring the safety filter element
remains in place.
z
Clean the inside of the air cleaner housing using
a clean damp cloth, taking care not to damage
the safety element.
z
Check if there is damage inside filter element by
using a light. If finding tiny crack or small holes
in the filter element or the gasket is damaged,
change it with a new one.
z
Insert the filter element by pushing it deeply into the filter housing.
z
Remove the dust of the evacuator valve and clean the inside of the cover.
z
Assemble the cover with the evacuator valve placed downward.
▶
Do not start the engine or close the hood if the filter element is not assembled..
Notice
▶ Do not fill the new filter with fuel. The invisible fine foreign materials enter the
injection pump and it may cause damage to the fuel injection system.
Caution
A
C
B
Fuel tank
(Feed)
Fuel tank
(Return)
Injection pump
Bolt
(3) Replacing Fuel filter cartridge
1. Stop engine and apply parking brake. Set
container under the fuel filter.
Prepare the plug to block the fuel hoses.
2. Disconnect hose-A first, and plug the hose.
3. Disconnect hose-B and C with the same method.
4. Remove the bolt from the filter.
5. Replace the fuel filter with a new one.
6. Connect the hose B, C and A step by step and
tighten the bolt.
7. Disconnect hose “C” for a seconds to bleed the
air, and connect it again.
8. Check any leakage around fuel filter.
Primary
element
Evacuator valve
Safety filter
element
To Next Page
