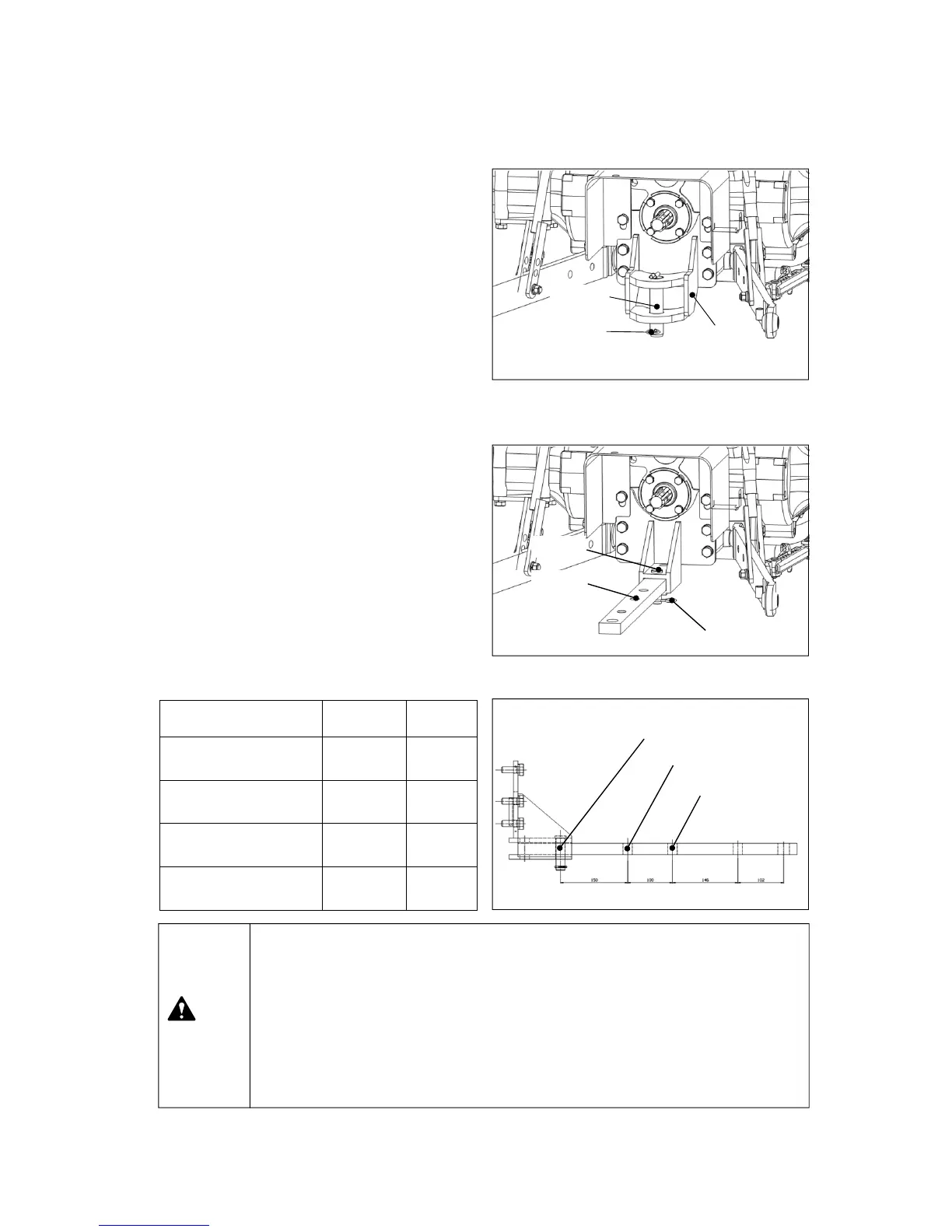

Hitch
Snap pin
Hitch pin
(3) Hitch and Drawbar (optional)
z When attaching towing equipments, use the hitch
or drawbar. DO NOT use the 3-point linkage or
other parts. If so, the tractor could be overturned.
z Insert the hitch pin and snap pin correctly after
attaching/detaching equipment.
z DO NOT exceed maximum permissible vertical
and horizontal load as below.
Snap pin
Lock pin
Drawbar
▶ Pulling from the tractor rear axle or any point above the axle may cause the tractor
to overturn. Use always the drawbar or hitch for pulling work.
▶ Do not tow equipment without brakes, weighing more than twice the tractor weight.
▶ When locking the hitch or drawbar with pin after aligning to the towing equipment,
apply the parking brake and stop the engine.
▶ Before transporting equipment on public roads, make sure you comply with your
local traffic regulation.
Caution
Hitch Drawbar
Unbraked towable
mass
1690kg
(3726 lb)
1300kg
(2866 lb)
Independently braked
towable mass
3380kg
(7452 lb)
2800kg
(6173 lb)
Inertia-braked towable
mass
3380kg
(7452 lb)
2800kg
(6173 lb)
Hydraulic or pneumatic
braked towable mass
N/A N/A
① Hitch
z Vertical load : 900kg (1984 lb)
z Horizontal load : 3600kg (7937 lb)
② Drawbar
z It is used to tow the equipments having 2 axles.
z It is available to adjust the length of the draw bar
after removing snap pin and lock-pin in the right
figure. After adjusting, assemble the pins firmly.
z Vertical load : 350kg(772 lb) (When pulling)
450kg(992 lb) (When pushing)
z Horizontal load : 2800kg (6173 lb)
When pulling
Regular position
When pushing
z Technically permissible maximum towable mass(es) are as below .
To Next Page
