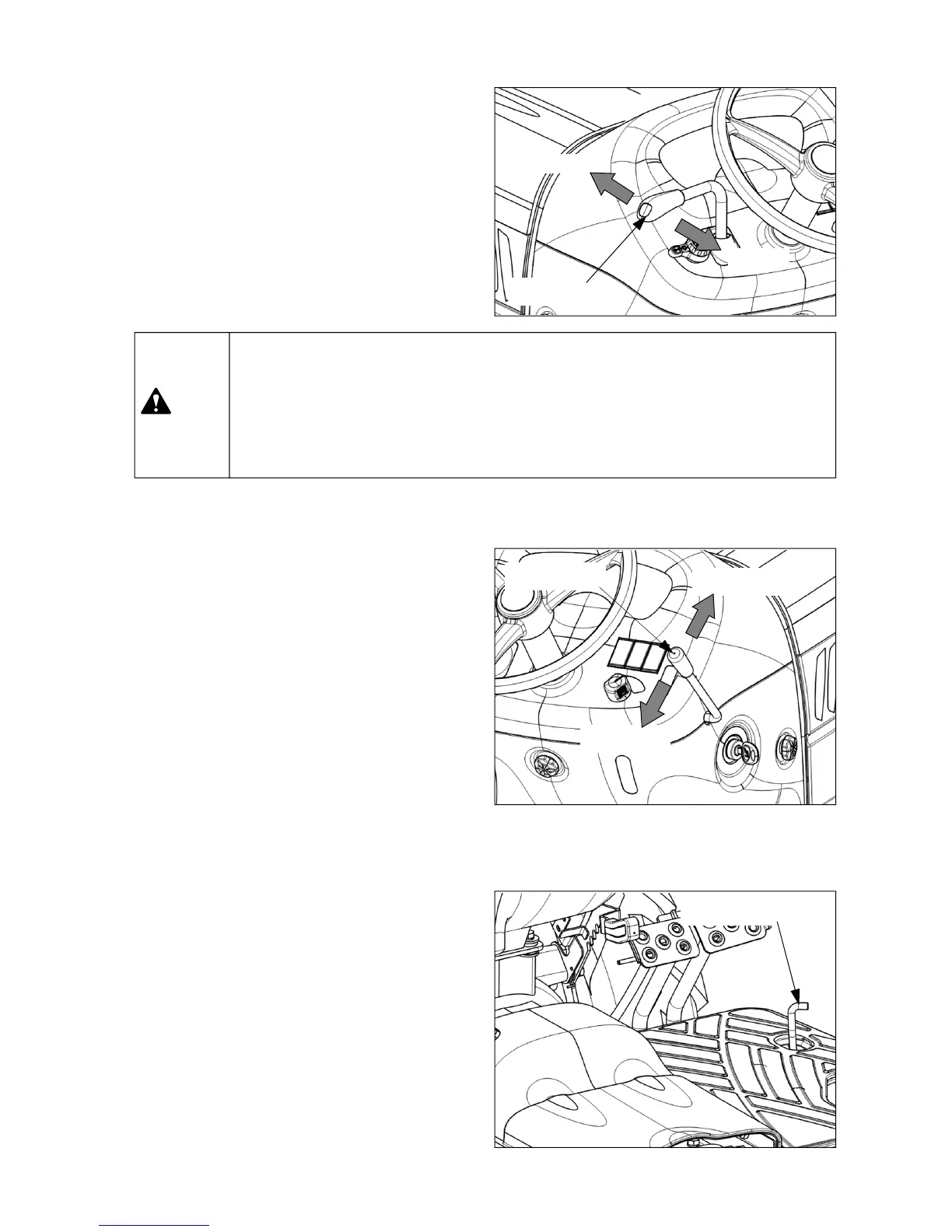

(8) Shuttle lever (Mechanical
synchro-shuttle)
z This is used to select Forward or Reverse.
z Forward : Push the lever forward.
Reverse : Pull the lever backward.
z Before reversing the tractor, lower the engine
rpm and check the safety behind the tractor.
▶ The synchro-shuttle shift lever allows any forward range or reverse to be shifted
while the tractor is moving slowly. However, the clutch must be disengaged and the
engaged by means of clutch pedal. Make sure to depress clutch pedal fully and
release it gradually to take up load smoothly, but sudden gear shifting may cause
transmission damage. It is recommended to stop the tractor before operating the
shuttle lever.
Caution
Forward
Reverse
Shuttle lever
(10) Throttle pedal (Mechanical)
z This pedal is used to control engine speed when
running on the road.
z When using the Throttle pedal, the throttle lever
must be placed on Low speed.
Throttle pedal
(9) Throttle lever
z This lever is used to control engine speed.
- Pull it backward for Low speed.
- Push it forward for High speed.
z For mechanical model, the throttle lever must be
used only for work field. When driving on the
road, place the throttle lever to low speed, and
use the throttle pedal.
Throttle lever
High speed
Low speed
