3 -21
(4) Joystick lever (if fitted)
z Remote joystick lever helps to operate front-end
loader comfortably.

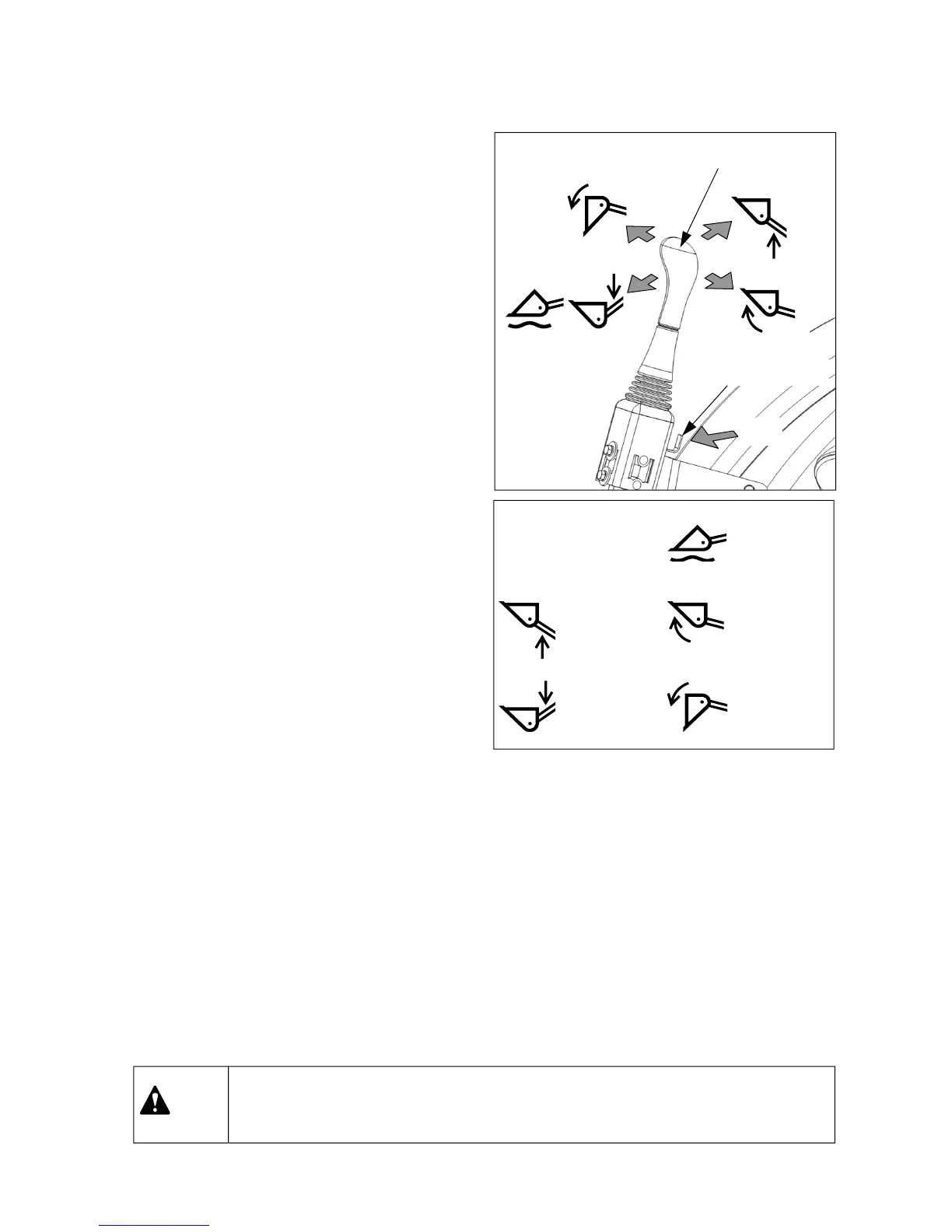

z Joystick can be operated at 4 directions as
shown in the right figure.
z If you move joystick diagonally, boom and
bucket may be operated at the same time. In this
case, less loaded cylinder may be moved first.
z When you want to float bucket, lower the loader
and push forward the lever at floating position.
After finishing work, pull the lever and place it in
neutral position.
z Locking lever shown in the right figure is used to
lock the joystick lever.
- Pull from the joystick : Unlock
- Push to the joystick : Lock
z For further information, See section 4-4-(8),
“Using Front-end loader” in this manual.
Locking lever
(safety device)
Joystick lever
Lock
▶To prevent an accident, place the locking lever to lock position when you do not use
the joystick lever.
Warning
Boom up
Boom down
Bucket up
Bucket dump
Bucket float
<Meaning of symbols>
