LS tractor XG3025 User Manual
4
of 1
of 1 rating
144 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
4
-4

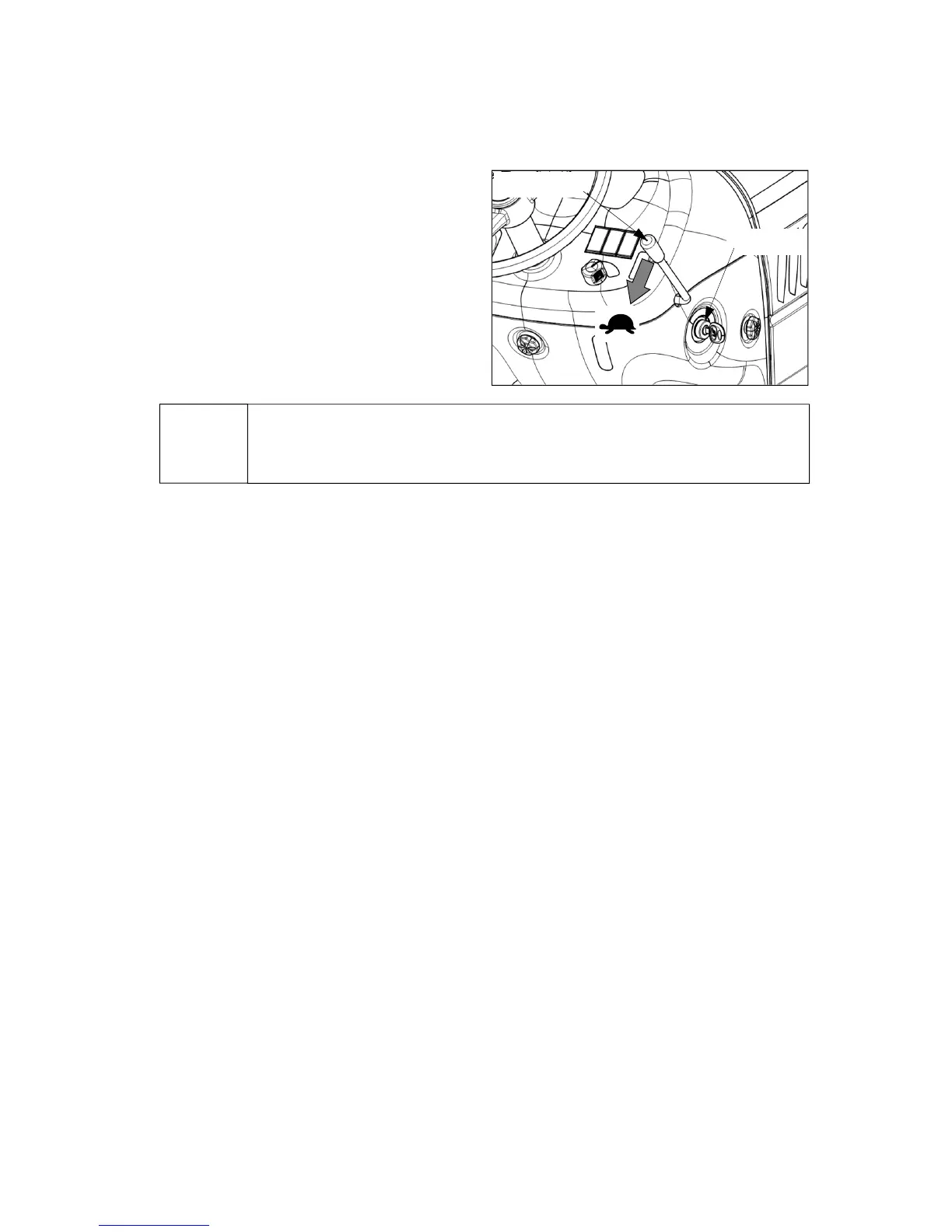

(3) Engine Stop
z
Pull the throttle lever backward to reduce the
engine speed an
d place the k
ey sw
itch on
“OFF”
position to stop the engine
.
▶
To stop the engine after finishing
heavy work, run engine for 5 minutes in low
idle
rpm. If
you stop the engine sudde
nly
, the engine life could be reduced
.
Notice
Throttle lever
Key switch
67
69
Table of Contents
Default Chapter
8
Table of Contents
8
1 General Notices for Safety
12
Before Using the Tractor
12
Safety Precautions (Read this for Safety before Using)
15
Notices before Using the Tractor
15
Notices When Starting Engine
18
Notices While Operating/Using the Tractor
19
Notices When Connecting Implement
21
Notices When Towing the Tractor
22
Notices When Transporting the Tractor
22
Notices When Servicing the Tractor after Work
23
Notices When Handling Diesel Fuel
24
Notices When Leaving the Tractor
25
Notices Relating to Toxic Substances
25
Long-Term Storage
26
Preparation for Storage
26
Check & Maintenance During Storage
27
Preparation for Reuse
27
Notices for "Use & Disposal" Related to the Environment
28
Symbols
29
Safety Decals
30
Handling and Maintenance of Safety Decals
30
Safety Decals and Attaching Position
30
2 Instruction Forsafe Operation
35
The Name of each Part
35
Safe Operation
35
Boarding and Exiting the Tractor
36
Boarding the Tractor
36
Driver's Seat
36
Seat Adjustment
37
Seat Belt
37
Exiting the Tractor
38
Safety Device
39
Hood (Bonnet)
39
Fender
39
PTO Safety Cover and Protection Cap
39
Roll-Over Protective Structure (ROPS) (Optional)
40
3 Instruments and Controls
42
Instrument Panel and Front Controls
42
Instrument Panel
44
Key Switch
47
Turn Signal Light Switch
47
Light Switch
47
Horn Switch (if Fitted)
48
Hazard Warning Light Switch
48
PTO Switch (Independent PTO)
49
Throttle Pedal (Mechanical)
50
Clutch Pedal (Mechanical)
51
Brake Pedals
51
Parking Brake Lever
52
HST Forward/Reverse Pedal (HST Type)
52
Cruise Control Lever (HST Type)
53
Left / Right-Hand Controls
54
Hydraulic System
58
Safety Precautions
58
Steering System
59
Hydraulic Lift Control
60
Position Control
60
Remote Control Lever and Quick Coupler (if Fitted)
61
Joystick Lever (if Fitted)
62
Hydraulic System Diagram
63
4 Operation and Work
65
Engine Start and Stop
65
Engine Start
65
Start in Cold Weather
67
Engine Stop
68
How to Drive and Stop
69
How to Drive
69
Changing Speed
71
Emergency Stop
72
Stopping Tractor
73
Driving Tractor on the Road
74
Parking
75
How to Handle New Tractor
76
Check Points
76
Notices in Handling New Tractor
76
Attaching Implement
77
3-Point Linkage
77
Power Take-Off (PTO) Shaft
81
Hitch and Drawbar (Optional)
83
7-Pole Connector (Optional)
84
Technically Maximum Permissible Mass
85
Tires and Load Capacity
86
Adjusting Wheel Tracks and Tire Replacement
87
Using Front-End Loader (Optional)
90
Adjusting Steering Angle
92
Driving Speed
94
5 Lubrication and Maintenance
95
Access for Maintenance
95
Maintenance Chart
96
Lubricants and Capacity
100
First 50 Hour Check
101
Check before Starting (Daily Check)
102
Engine Oil
102
Fuel Tank
103
Instrument Panel & Indicators
103
Turn Signal Lights, Lights and Horn
104
Engine Coolant
105
Air Cleaner (Dry Type)
105
Cleaning of Radiator and Radiator Screen
106
Tire Air Pressure & Damage
106
Tightening State of Bolts and Nuts of each Part
107
Adjustment of Clutch Pedal Play (Mechanical Type)
107
Adjustment of Brake Pedal Play
108
Adjusting HST Control Linkage (HST Type)
109
Every 50 Hour Check
110
Lubricating Grease Nipple
110
Cleaning of Radiator and Radiator Screen
110
Checking Transmission Oil
111
Checking Front Axle Oil
111
Battery Check
111
Air Cleaner (Dry Type)
111
Hydraulic Hoses and Leakage
111
Every 250 Hour Check
112
Replacing Engine Oil and Filter
112
Replacing Hydraulic Oil Filter
113
Tension Adjustment of Engine Belt
114
Toe-In
114
Every 500 Hour Check
115
Changing Front Axle Oil
115
Changing Transmission Oil
115
Replacing Fuel Filter Cartridge
116
Replacing Air Cleaner Element (Dry Type)
116
Adjusting Engine Valve Clearance
117
Checking Nozzle Injection Pressure
117
Every 2-Year Check
118
Replacing Engine Coolant
118
General Maintenance (When Required)
120
Air-Bleeding from Fuel System
120
Fuse & Main Fuse
122
Battery Handling and Notices
124
Troubleshooting
128
6 Dimension and Specification
134
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the LS tractor XG3025 and is the answer not in the manual?
Ask a question
LS tractor XG3025 Specifications
General
Brand
LS tractor
Model
XG3025
Category
Tractor
Language
English
Related product manuals
LS tractor XG3025H
144 pages
LS tractor XG3032
148 pages
LS tractor XG3037
148 pages
LS tractor XG3037H
148 pages
LS tractor XG3140
144 pages
LS tractor XG3140H
144 pages
LS tractor XG3135H
144 pages
LS tractor XR4140
252 pages
LS tractor XU6158
234 pages
LS tractor XU6168
234 pages
LS tractor XR4040H
104 pages
LS tractor XR3037H
104 pages
