The 504 Series Control Panel oers you
advanced spa control. The backlit, Liquid
Crystal Display (LCD) displays current water
temperature, set point water temperature
and operating mode settings. Each feature
of the system is actuated through a control
panel touch pad. Touch the appropriate pad to
activate the desired function.
At start up, when power is supplied to the spa,
the controls will operate properly and safely
under the factory settings. The spa will be in
Standard mode, have a temperature setting of
100°F (38°C), and a ltration cycle duration of
2 hours. To fully utilize the unique capabilities
of the control system, it is important to know
how to set the temperature, operate the
pumps, operate the light, adjust the mode
setting, and change the ltration cycles.
Note: In event of a power outage or failure,
the 504 Series Control Panel should retain
all settings. If settings are lost, re-program
per the instructions in this manual and
contact your dealer.

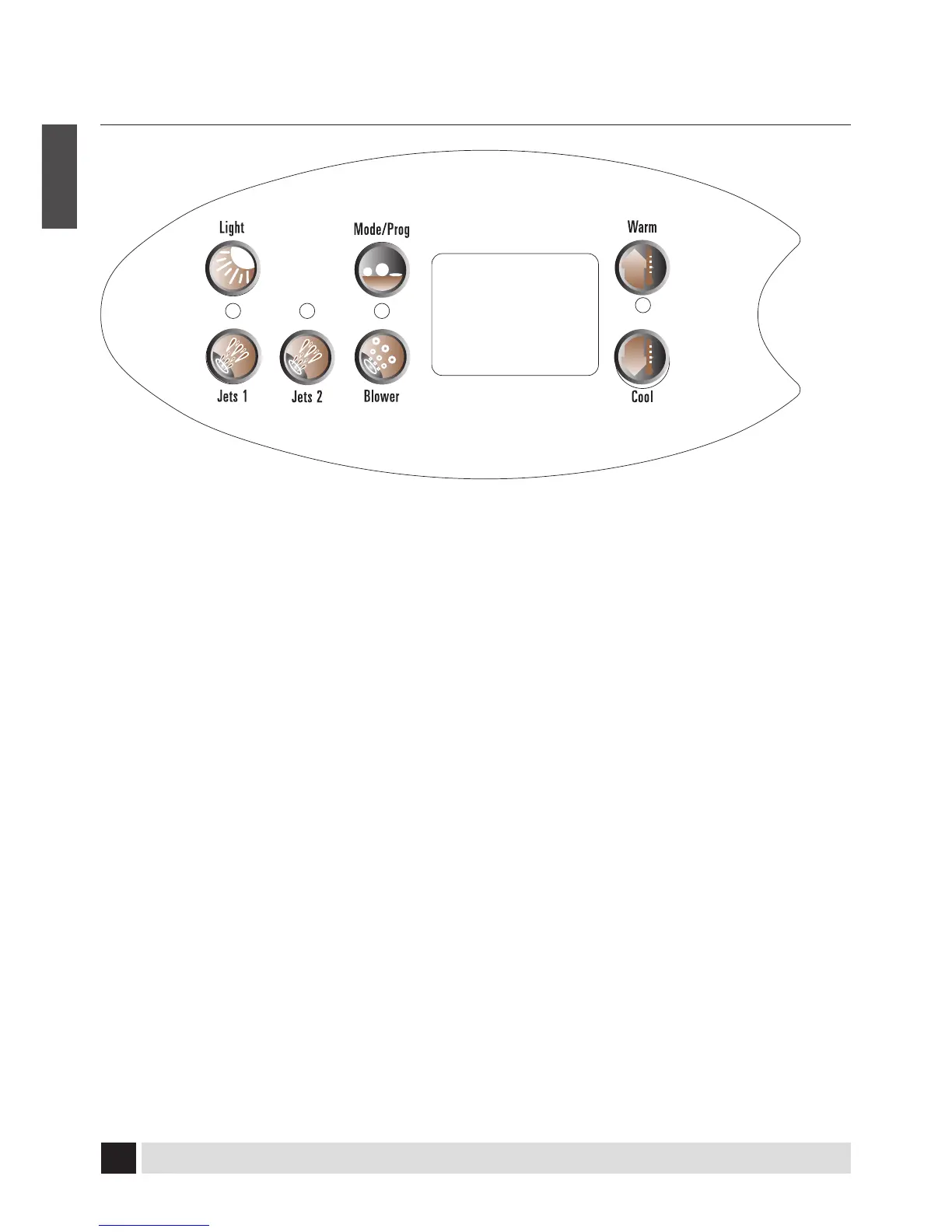

NOTE: The look of your topside control panel design and buttons will vary according to brand
and features available on your spa. See table on next page for pictures and explanation of 504
Control Panel button functions.
