777 OPERATOR’S MANUAL OPERATING CONTROLS AND PROCEDURES
3

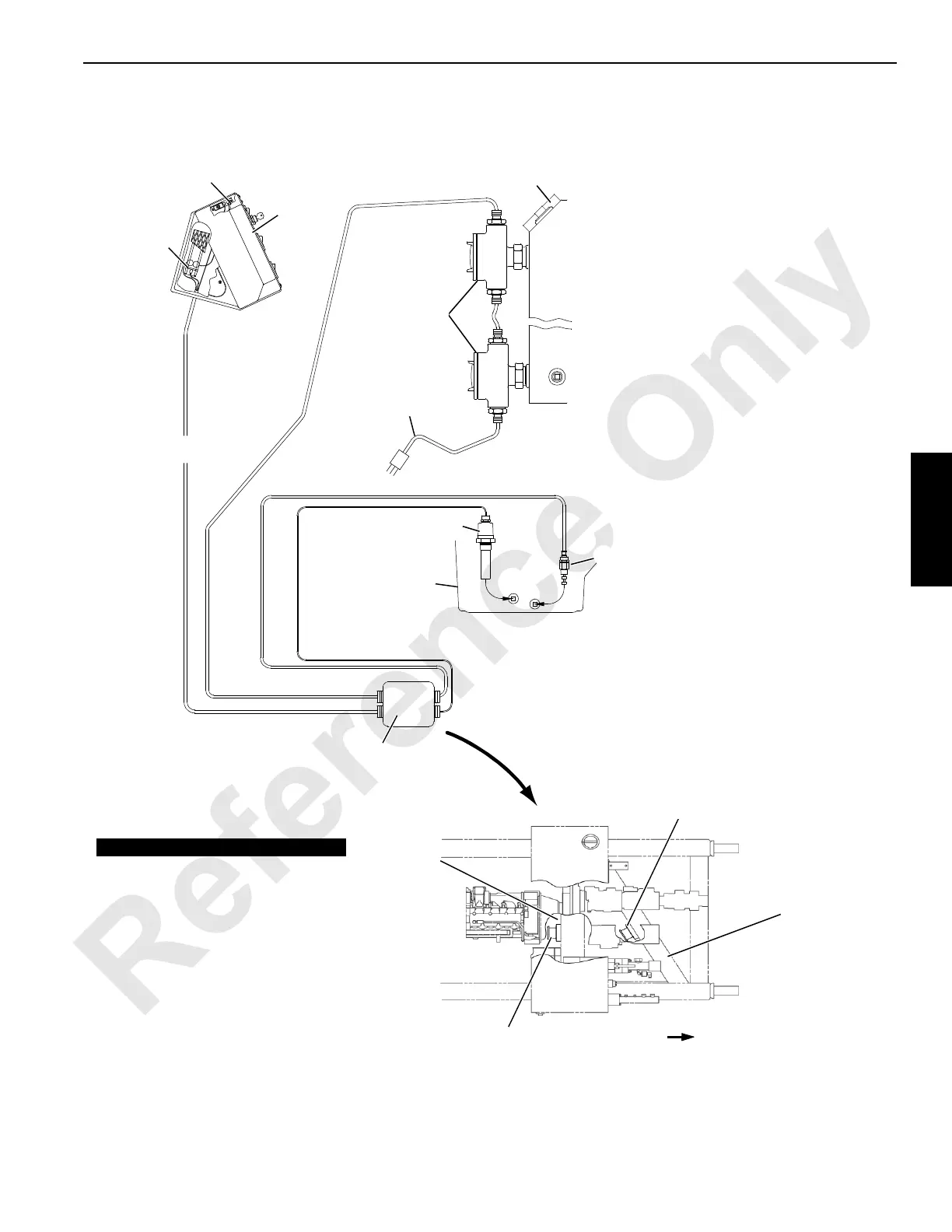

FIGURE 3-37
Item Description
1 Power Supply Cord
2 Hydraulic Reservoir Heaters
(two, 1000 watts total)
3 Hydraulic Reservoir
4 Junction Box (front of rotating bed
beam under engine)
5 Oil Pan Thermostat
(C-330 engine only)
6 Oil Pan Heater (300 watts)
7Oil Pan
8 Control Console Heater (30 watts)
9 Control Console Thermostat
10 Front Control Console
11 Beam (engine base)
A1089
Right Side of Engine
4
5
1
6
7
2
3
9
10
8
(C-330 Engine)
(C-260 Engine)
11
4
11
4
Front of Crane
179864
120 Volt AC Option
