SET-UP AND INSTALLATION 777 OPERATOR’S MANUAL
4-58 Published 10-01-12, Control # 044-05
P1
(Figure 4-34)
Jib Top
Pin
View C
View B
Links
Spreaders
Jib
Strut
P1, P2, or P3 (see
Figure 4-34)
Pin Pin
Pin
5° Offset
15° Offset
25° Offset
Jib
Pendants
Backstay
Pendants

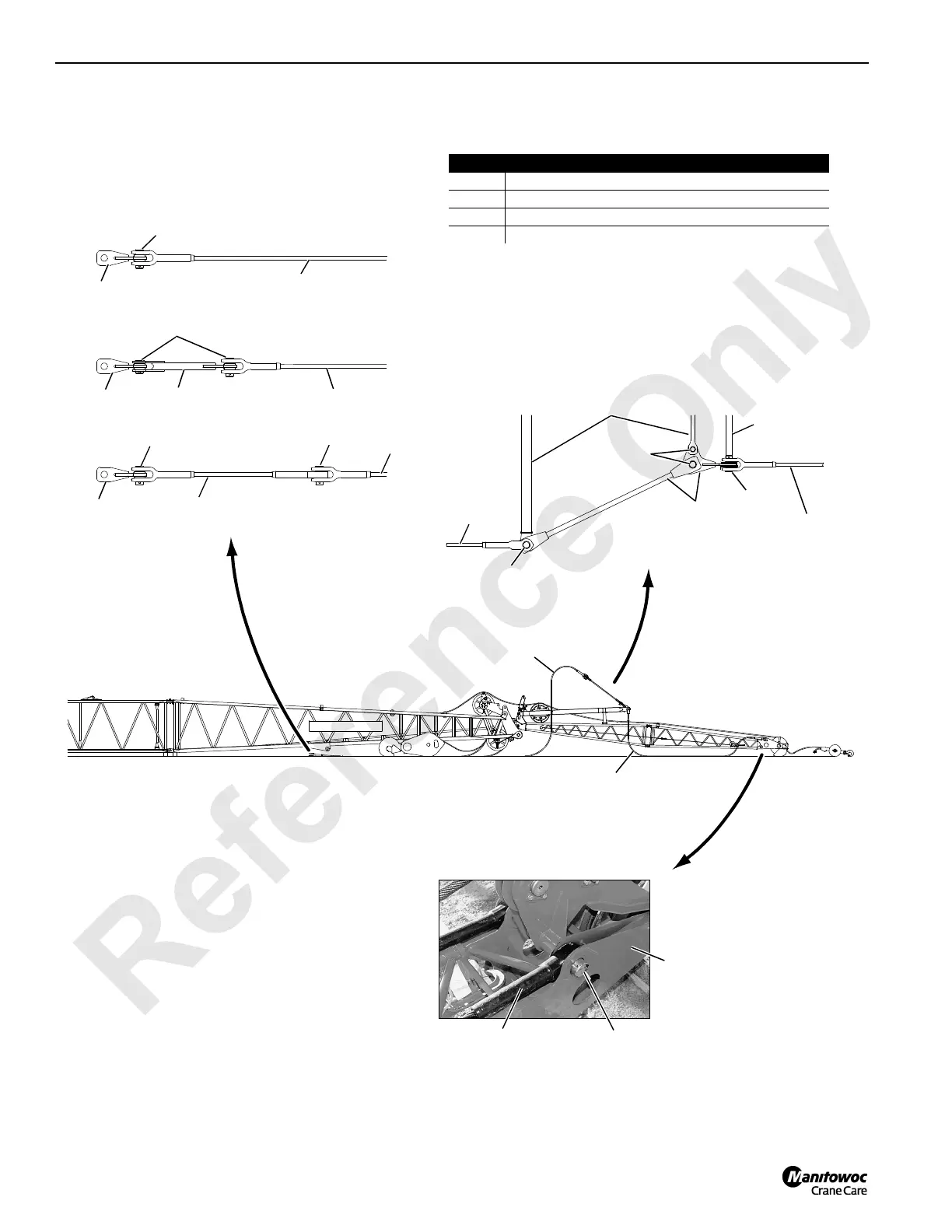

FIGURE 4-37
Item Description
1 Backstay Links
2 Basic Backstay Pendants 44 ft 7 in (13.6 m)
3 Offset Links 28 in (711 mm) and pins for 15° Offset
4 Offset Pendants 4 ft 8 in (1.4 m) and pins for 25° Offset
123
1
2
1
4
2
2
Pin
Pin
Pins
Pin
View A
P548
A1016
