ATTACHMENTS CD5520/YB5520 OPERATOR MANUAL
5-18 Published 07-06-2017, Control # 406-03
REEVING
Reeving for 4-part Line
Place the wire rope over the top sheave in the boom head
and then down and over the lower left sheave. Thread rope
through one of the sheaves in the hoist block and then over
the second lower sheave in the boom head. Continue by
threading the rope through the second sheave in the hoist
block. See Figure 5-40.
NOTE: It may be easier to place the wire rope over the
sheaves if you remove the hair pins and wire rope
retaining pins from the boom head and hoist block.
Install pins after the wire rope is installed.
Connect the loose end of the wire rope to the ear on the
crane side of the boom head with a socket and wedge.

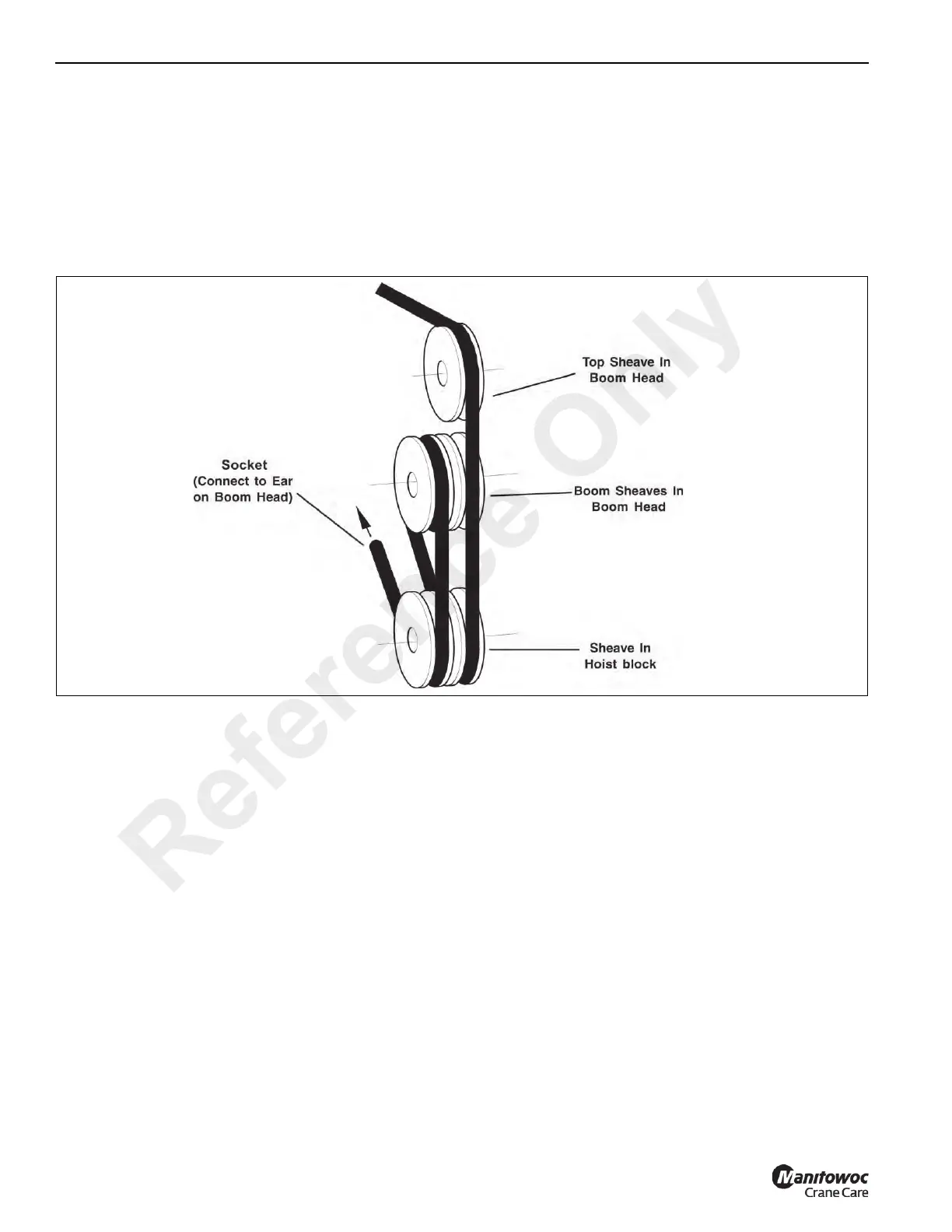

FIGURE 5-40
a0136
