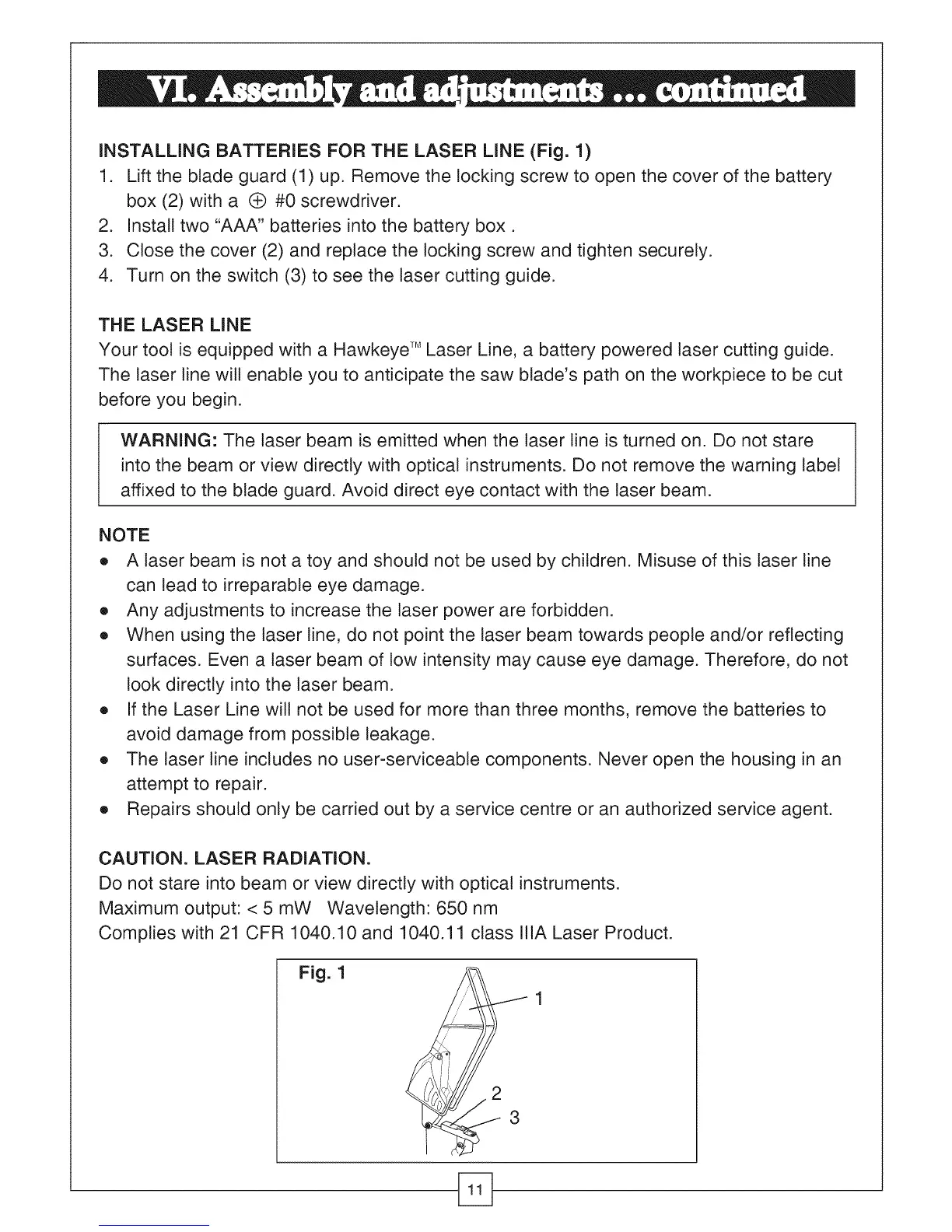

iNSTALLiNG BATTERIES FOR THE LASER LiNE (Fig. 1)
1. Lift the blade guard (1) up. Remove the locking screw to open the cover of the battery
box (2) with a (_ #0 screwdriver.
2. Install two "AAA" batteries into the battery box.
3. Close the cover (2) and replace the locking screw and tighten securely.
4. Turn on the switch (3) to see the laser cutting guide.
THE LASER LINE
Your tool is equipped with a Hawkeye TMLaser Line, a battery powered laser cutting guide.
The laser line will enable you to anticipate the saw blade's path on the workpiece to be cut
before you begin.
WARNING: The laser beam is emitted when the laser line is turned on. Do not stare
into the beam or view directly with optical instruments. Do not remove the warning label
affixed to the blade guard. Avoid direct eye contact with the laser beam.
NOTE
e A laser beam is not a toy and should not be used by children. Misuse of this laser line
can lead to irreparable eye damage.
e Any adjustments to increase the laser power are forbidden.
e When using the laser line, do not point the laser beam towards people and/or reflecting
surfaces. Even a laser beam of low intensity may cause eye damage. Therefore, do not
look directly into the laser beam.
e If the Laser Line will not be used for more than three months, remove the batteries to
avoid damage from possible leakage.
e The laser tine includes no user-serviceable components. Never open the housing in an
attempt to repair.
e Repairs should only be carried out by a service centre or an authorized service agent.
CAUTION. LASER RADIATION.
Do not stare into beam or view directly with optical instruments.
Maximum output: < 5 mW Wavelength: 650 nm
Complies with 21 CFR 1040.10 and 1040.11 class IliA Laser Product.
Fig. 1
2
3
