WARNING: NEVERCONNECT THE PLUG TO THE POWER SOURCE OUTLET UNTIL
ALL INSTALLATIONSAND ADJUSTMENTS ARE COMPLETED AND YOU HAVE
READ AND FULLY UNDERSTOOD THE ENTIRE MANUAL.

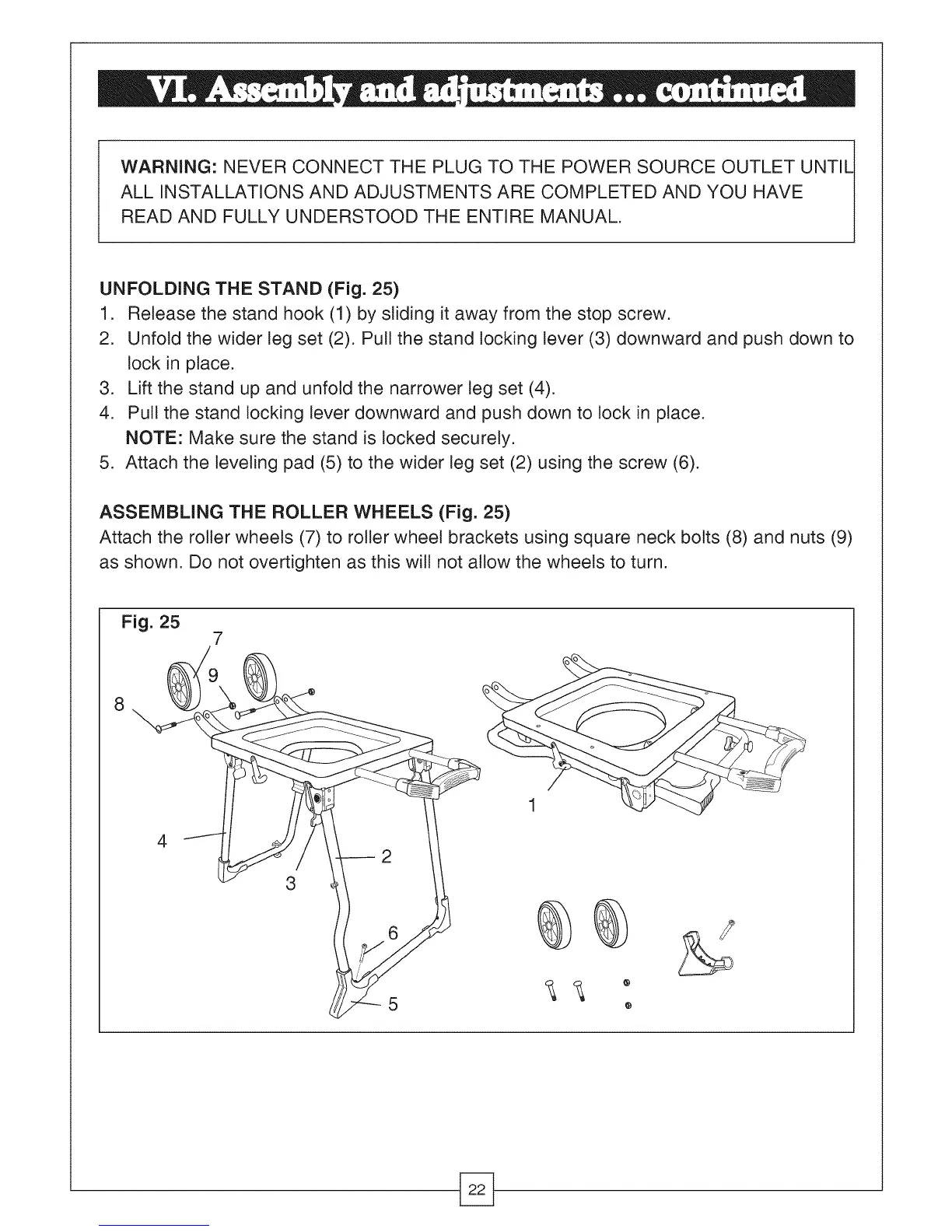

UNFOLDING THE STAND (Fig. 25)
1. Release the stand hook (1) by sliding it away from the stop screw.
2. Unfold the wider leg set (2). Pull the stand locking lever (3) downward and push down to
lock in place.
3. Lift the stand up and unfold the narrower leg set (4).
4. Pull the stand locking lever downward and push down to lock in place.
NOTE: Make sure the stand is locked securely.
5. Attach the leveling pad (5) to the wider leg set (2) using the screw (6).
ASSEMBLING THE ROLLER WHEELS (Fig. 25)
Attach the roller wheels (7) to roller wheel brackets using square neck bolts (8) and nuts (9)
as shown. Do not overtighten as this will not allow the wheels to turn.
Fig. 25
7
8
4
3
