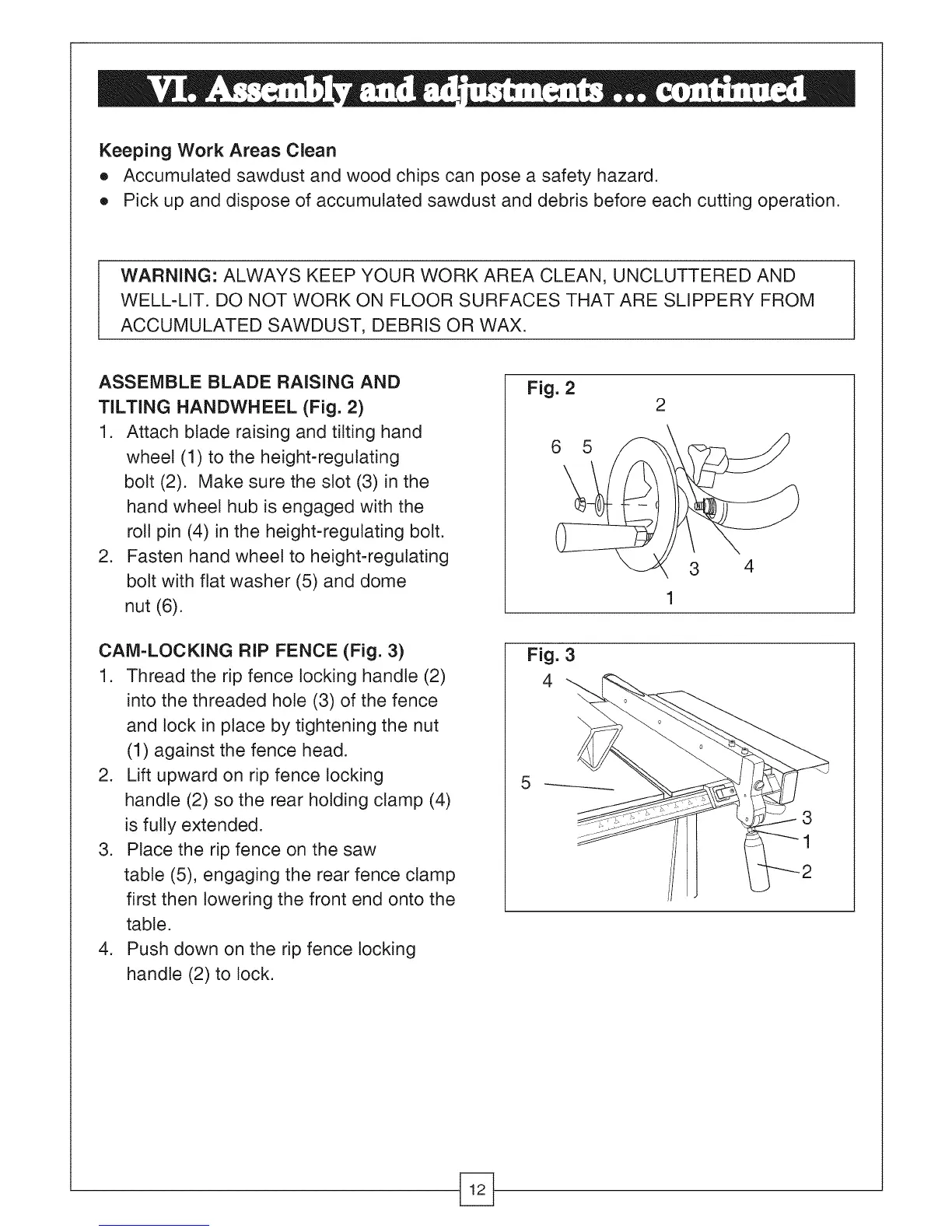

Keeping Work Areas Clean
e Accumulated sawdust and wood chips can pose a safety hazard.
e Pick up and dispose of accumulated sawdust and debris before each cutting operation.
WARNING: ALWAYS KEEP YOUR WORK AREA CLEAN, UNCLUTTERED AND
WELL-LIT. DO NOT WORK ON FLOOR SURFACES THAT ARE SLIPPERY FROM
ACCUMULATED SAWDUST, DEBRIS OR WAX.
ASSEMBLE BLADE RAISING AND
TILTING HANDWHEEL (Fig. 2)
1. Attach blade raising and tilting hand
wheel (1) to the height-regulating
bolt (2). Make sure the slot (3) in the
hand wheel hub is engaged with the
roll pin (4) in the height-regulating bolt.
2. Fasten hand wheel to height-regulating
bolt with flat washer (5) and dome
nut (6).
CAM=LOCKING RIP FENCE (Fig. 3)
1. Thread the rip fence locking handle (2)
into the threaded hole (3) of the fence
and lock in place by tightening the nut
(1) against the fence head.
2. Lift upward on rip fence locking
handle (2) so the rear holding clamp (4)
is fully extended.
3. Place the rip fence on the saw
table (5), engaging the rear fence clamp
first then lowering the front end onto the
table.
4. Push down on the rip fence locking
handle (2) to lock.
Fig. 2
2
!
3 4
Fig. 3
4
5
3
1
