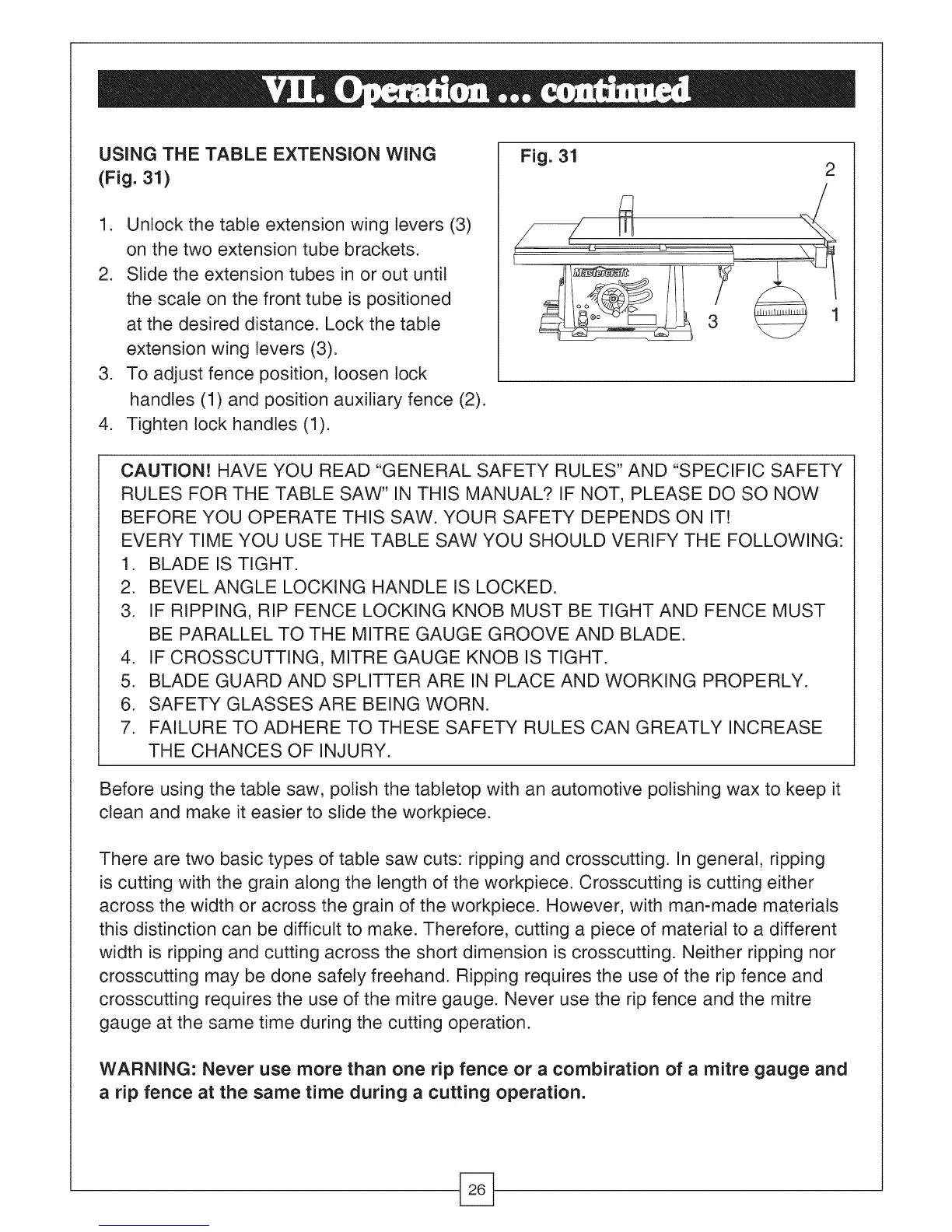

USINGTHE TABLE EXTENSION WING
(Fig. 31)
1. Unlock the table extension wing levers (3)
on the two extension tube brackets.
2. Slide the extension tubes in or out until
the scale on the front tube is positioned
at the desired distance. Lock the table
extension wing levers (3).
3. To adjust fence position, loosen lock
handles (1) and position auxiliary fence (2).
4. Tighten lock handles (1).
Fig. 31 2
lul
CAUTION! HAVE YOU READ "GENERAL SAFETY RULES" AND "SPECIFIC SAFETY
RULES FOR THE TABLE SAW" IN THIS MANUAL? IF NOT, PLEASE DO SO NOW
BEFORE YOU OPERATE THIS SAW. YOUR SAFETY DEPENDS ON IT!
EVERY TiME YOU USE THE TABLE SAW YOU SHOULD VERIFY THE FOLLOWING:
1. BLADE iS TIGHT.
2. BEVEL ANGLE LOCKING HANDLE iS LOCKED.
3. IF RIPPING, RIP FENCE LOCKING KNOB MUST BE TIGHT AND FENCE MUST
BE PARALLEL TO THE MITRE GAUGE GROOVE AND BLADE.
4. IF CROSSCUTTING, MITRE GAUGE KNOB IS TIGHT.
5. BLADE GUARD AND SPLITTER ARE iN PLACE AND WORKING PROPERLY.
6. SAFETY GLASSES ARE BEING WORN.
7. FAILURE TO ADHERE TO THESE SAFETY RULES CAN GREATLY iNCREASE
THE CHANCES OF iNJURY.
Before using the table saw, polish the tabletop with an automotive polishing wax to keep it
clean and make it easier to slide the workpiece.
There are two basic types of table saw cuts: ripping and crosscutting, in general, ripping
is cutting with the grain along the length of the workpiece. Crosscutting is cutting either
across the width or across the grain of the workpiece. However, with man-made materials
this distinction can be difficult to make. Therefore, cutting a piece of material to a different
width is ripping and cutting across the short dimension is crosscutting. Neither ripping nor
crosscutting may be done safely freehand. Ripping requires the use of the rip fence and
crosscutting requires the use of the mitre gauge. Never use the rip fence and the mitre
gauge at the same time during the cutting operation.
WARNING: Never use more than one rip fence or a combiration of a mitre gauge and
a rip fence at the same time during a cutting operation.
