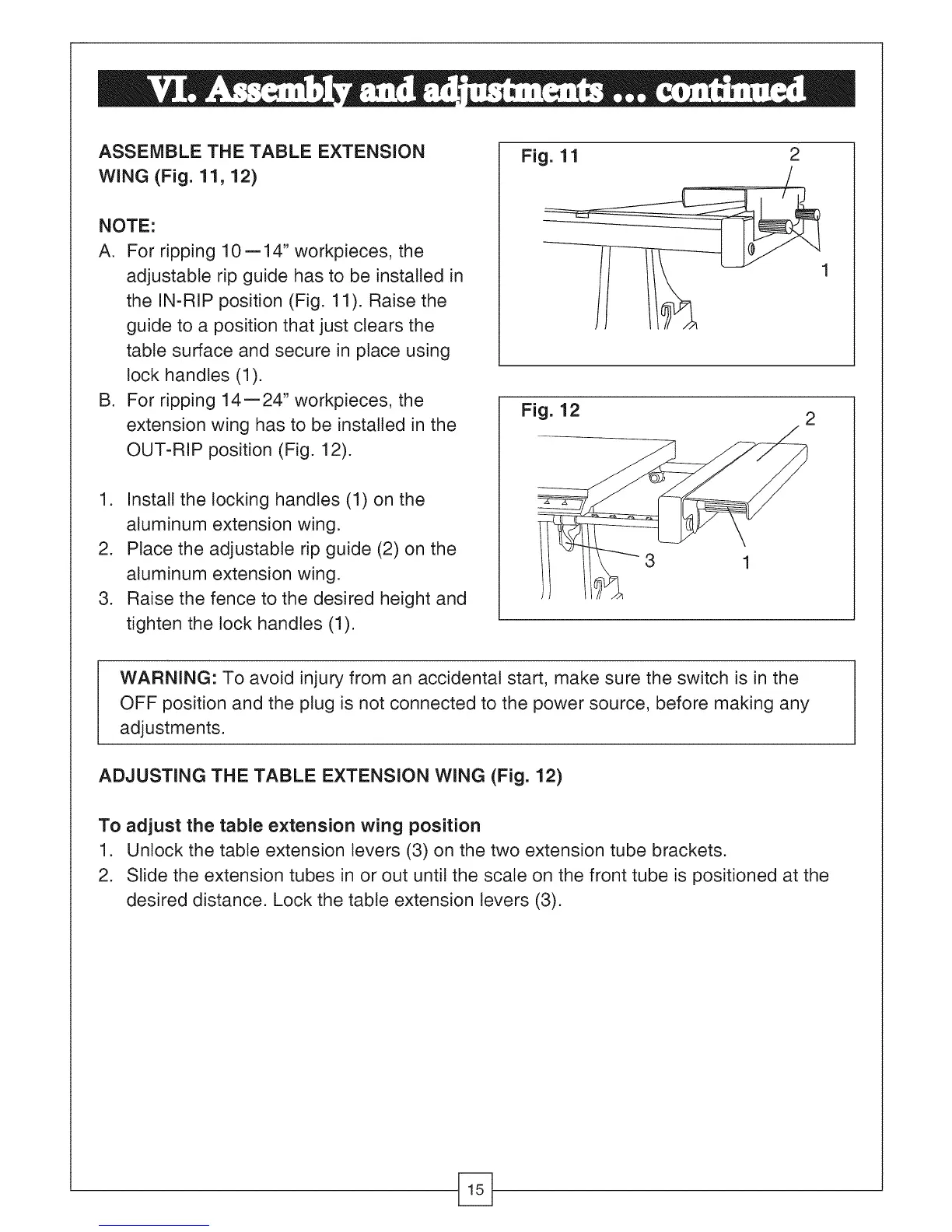

ASSEMBLE THE TABLE EXTENSION
WiNG (Fig. 11, 12)
NOTE:
A. For ripping 10 = 14" workpieces, the
adjustable rip guide has to be installed in
the IN-RIP position (Fig. 11). Raise the
guide to a position that just clears the
table surface and secure in place using
lock handles (1).
B. For ripping 14=24" workpieces, the
extension wing has to be installed in the
OUT-RIP position (Fig. 12).
1. Install the
aluminum
2. Place the
aluminum
.
locking handles (1) on the
extension wing.
adjustable rip guide (2) on the
extension wing.
Raise the fence to the desired height and
tighten the lock handles (1).
Fig. 11 2
Fig. 12
2
3 1
WARNING: To avoid injury from an accidental start, make sure the switch is in the
OFF position and the plug is not connected to the power source, before making any
adjustments.
ADJUSTING THE TABLE EXTENSION WING (Fig. 12)
To adjust the table extension wing position
1. Unlock the table extension levers (3) on the two extension tube brackets.
2. Slide the extension tubes in or out until the scale on the front tube is positioned at the
desired distance. Lock the table extension levers (3).
