WARNING: TO PREVENT PERSONAL INJURY:
e ALWAYS DISCONNECT THE PLUG FROM POWER SOURCE WHEN MAKING
ANY ADJUSTMENTS.
e ADJUSTMENTS MUST BE CORRECT OR KICKBACK COULD RESULT INA
SERIOUS INJURY AND ACCURATE CUTS CANNOT BE MADE.

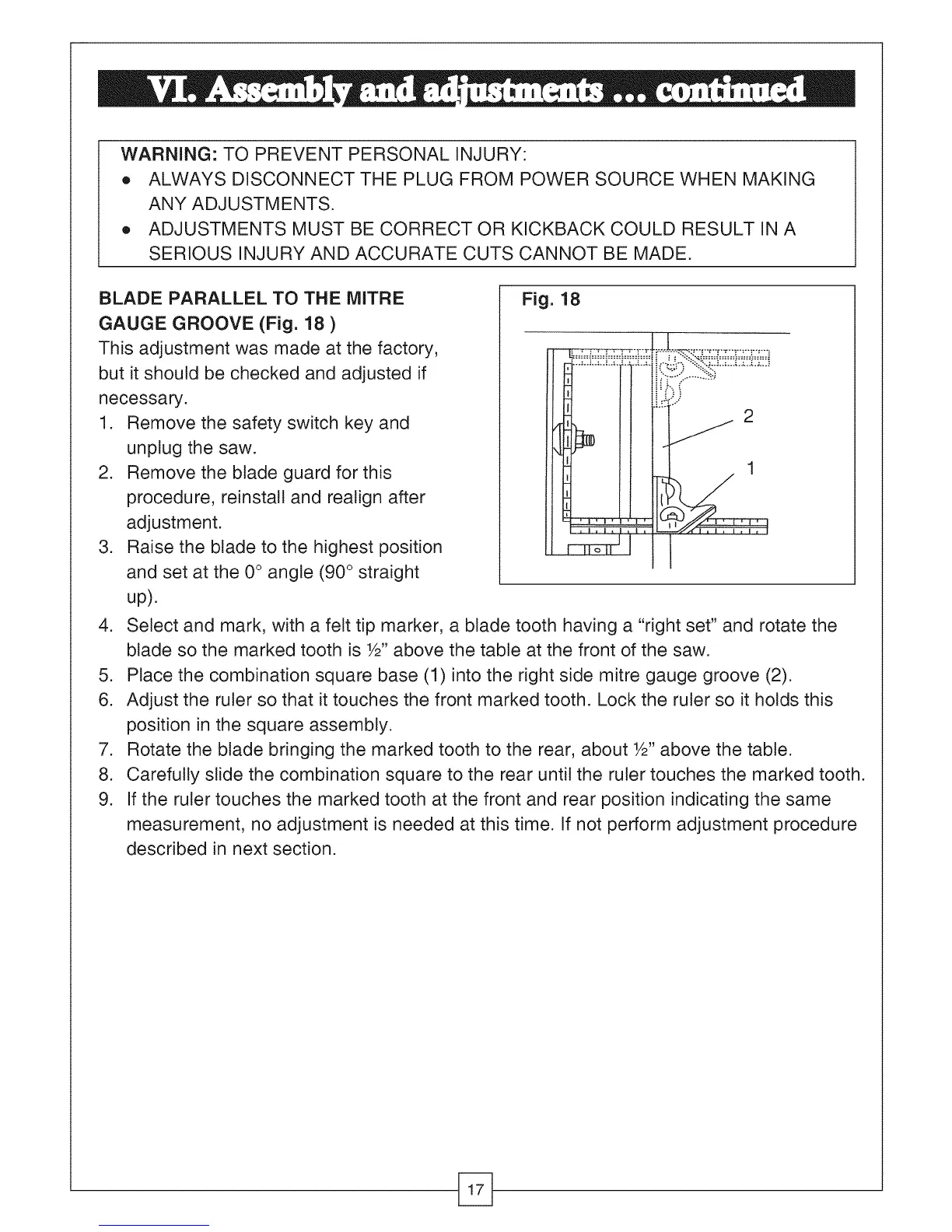

BLADE PARALLEL TO THE MITRE
GAUGE GROOVE (Fig. 18 )
This adjustment was made at the factory,
but it should be checked and adjusted if
necessary.
1.
.
.
Remove the safety switch key and
unplug the saw.
Remove the blade guard for this
procedure, reinstall and realign after
adjustment.
Raise the blade to the highest position
and set at the 0° angle (90 ° straight
up).
Fig. 18
"..=..J..=..L._.=,.L.;j
1
4. Select and mark, with a felt tip marker, a blade tooth having a "right set" and rotate the
blade so the marked tooth is W' above the table at the front of the saw.
5. Place the combination square base (1) into the right side mitre gauge groove (2).
6. Adjust the ruler so that it touches the front marked tooth. Lock the ruler so it holds this
position in the square assembly.
7. Rotate the blade bringing the marked tooth to the rear, about W' above the table.
8. Carefully slide the combination square to the rear until the ruler touches the marked tooth.
9. If the ruler touches the marked tooth at the front and rear position indicating the same
measurement, no adjustment is needed at this time. If not perform adjustment procedure
described in next section.
