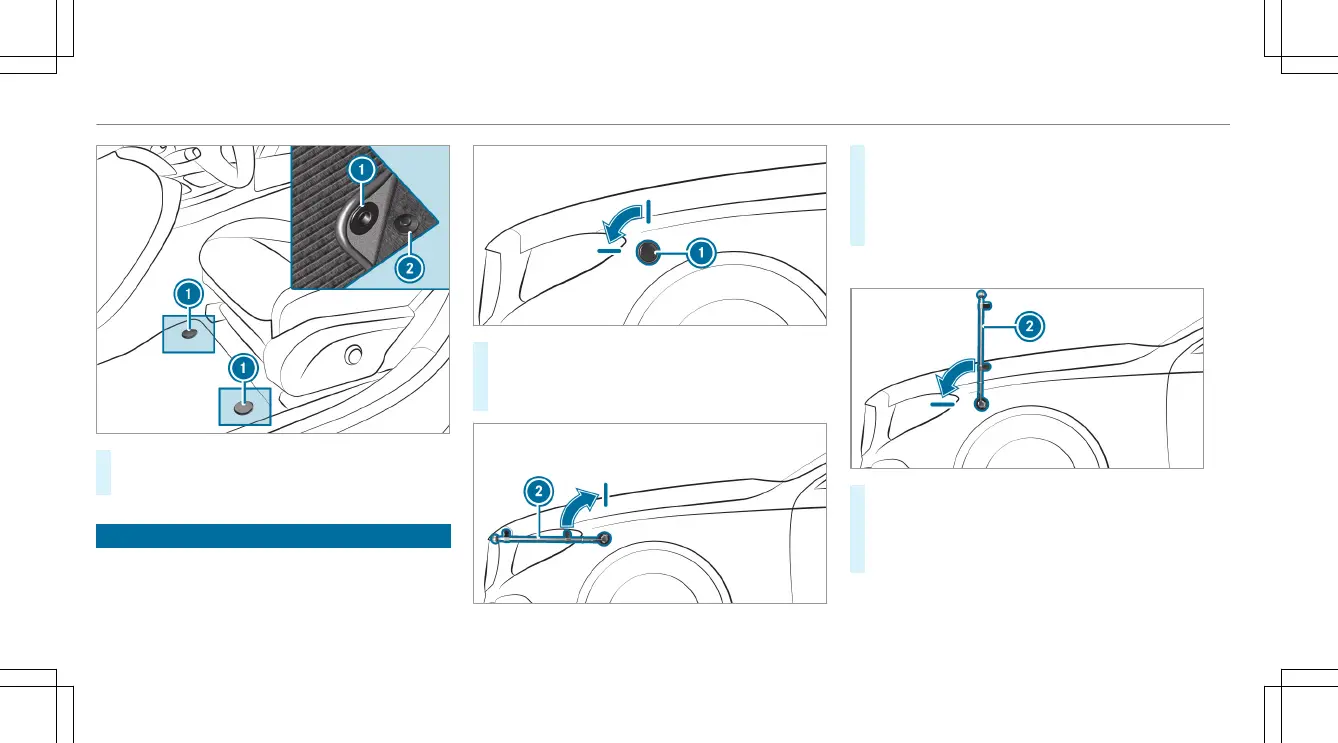

To install: press studs 1 onto holders 2.
#
To remove: pull thefloor mat offholders 2.
Installing/removing the pennantstaff
Installing
The pennant staffisinstalled and removedin
identical fashion on both thedriver's and
front‑passengersides.
#
Press cover 1 and turnitforwardsinthe
direction of travel.
#
Remove thecover.
#
Position pennant staff 2 horizontallyinthe
opening and press it in.
#
Turn pennant staff 2 in theoppositedirec‐
tion to thedirection of traveluntil it is in a
vertical position and engages.
Removing
#
Presspennant staff 2 intothe opening and
turnitforwardsinthe direction of traveluntil
it is in ahorizontalposition.
#
Remove pennant staff 2.
148
Seats and stowing
